Precision-engineered luminaires for architects, lighting designers, and specifiers. Indoor, outdoor, linear, and precision beam systems.

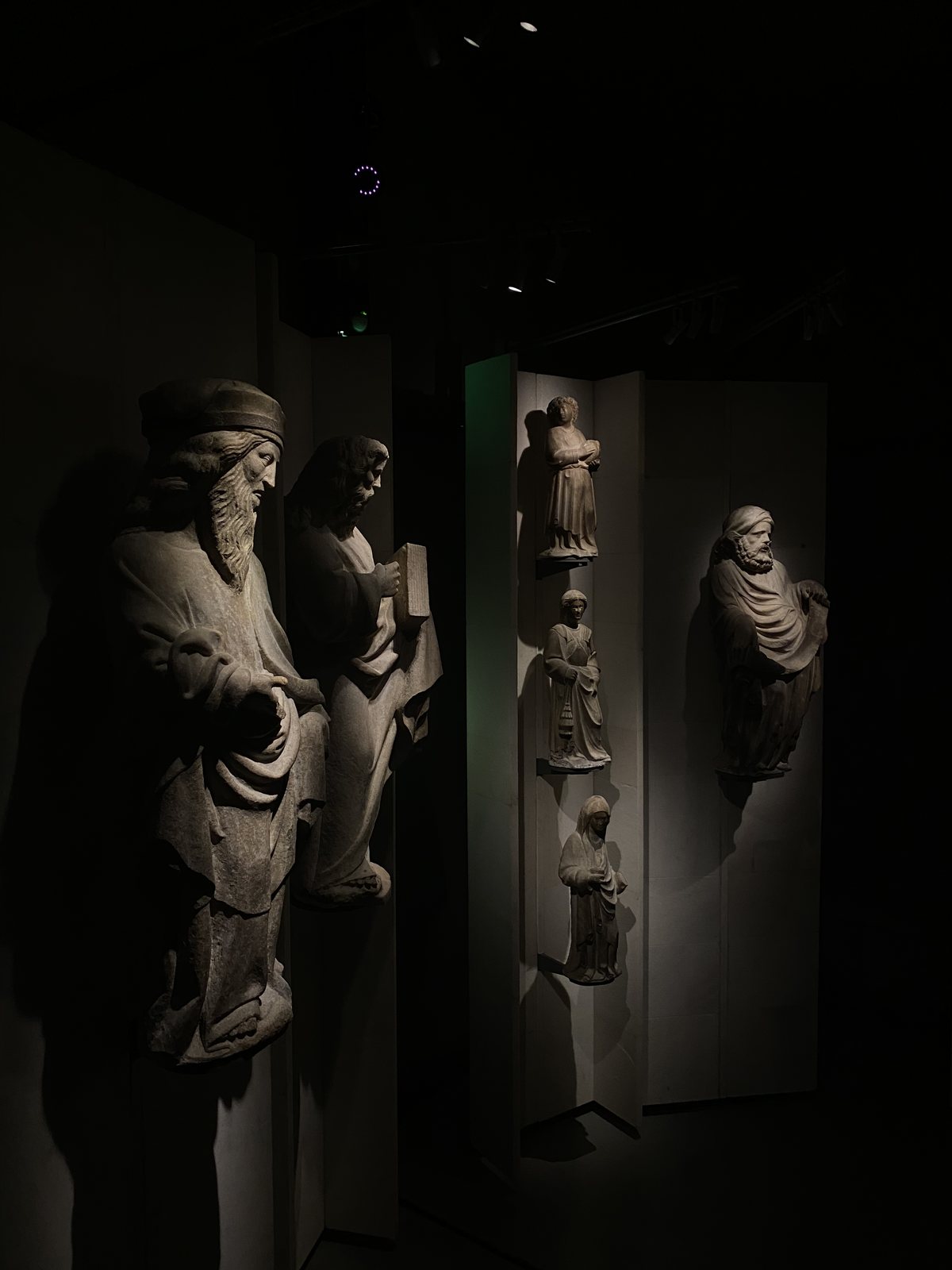

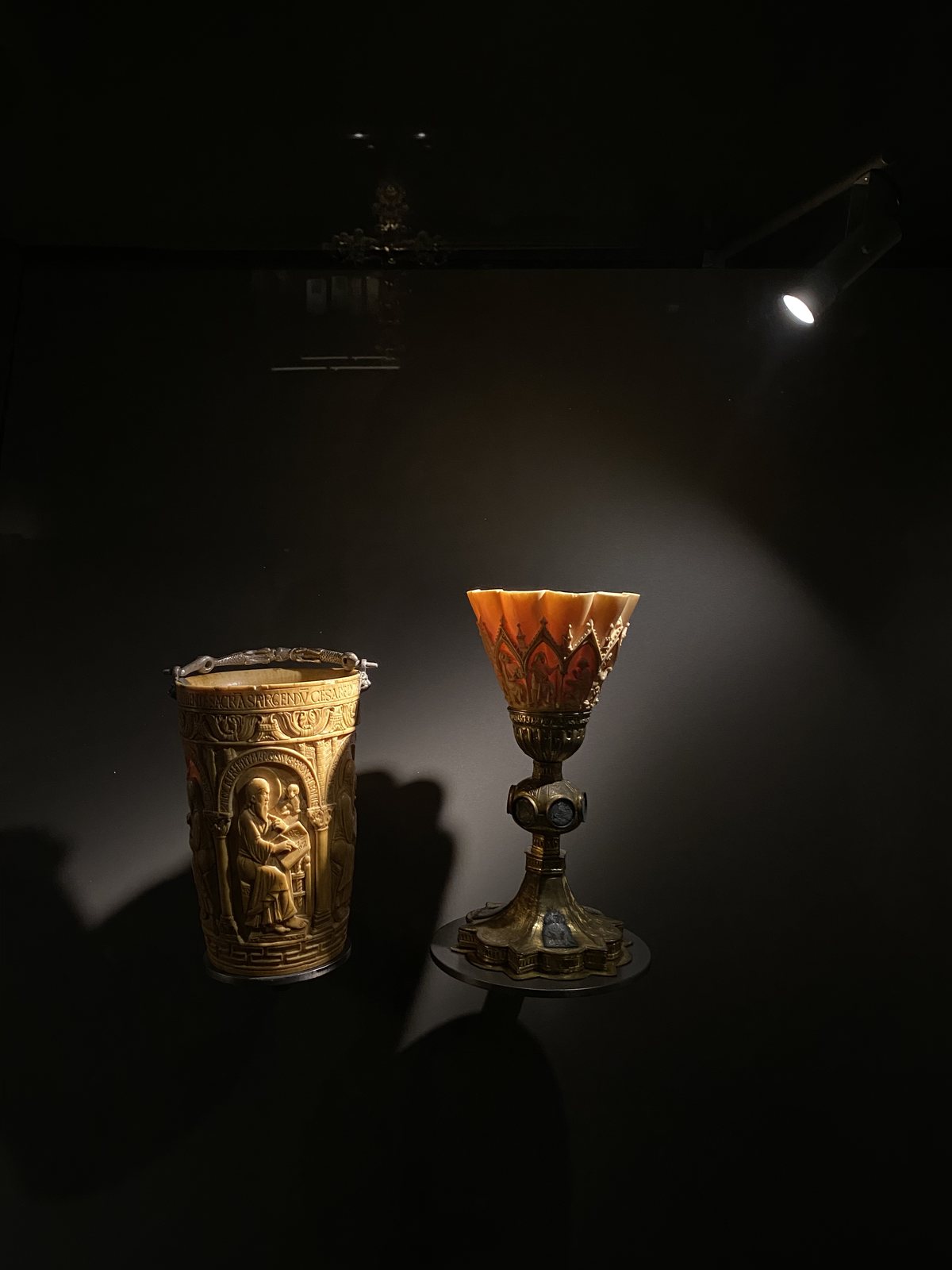

Duomo, Milan

Our Lighting Range

Four product families covering every architectural application. Click any category to explore products and download technical files.

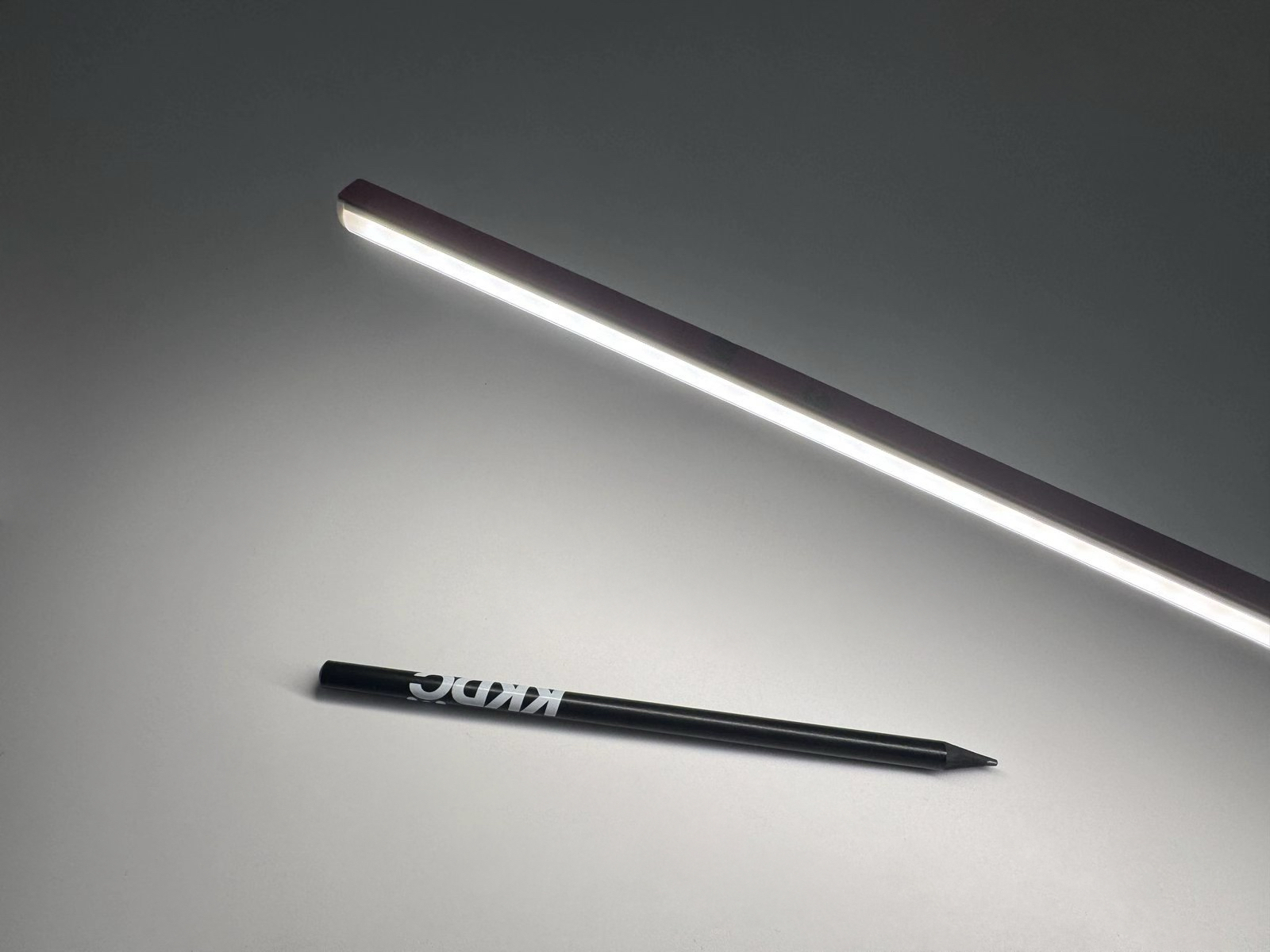

Apex-CN001
Dimension
H 10
W 10
mm
Surface Mount
Linear · Surface Mount · Indoor
Apex-CN001

Square H10×W10mm profile with three power options — 10, 16 and 24 W/m — up to 1704 lm/m. Osram chip, 3-step MacAdam, 100° diffused optic. Tape or clip mounting.

IP
IP40
CCT
3000K
3500K
4000K
CRI
CRI ≥90
Output
1136 lm/m
16 W/m
24V DC
Dimming
0-10V
1-10V
DALI
DMX
Cert
CE
KC
BIS

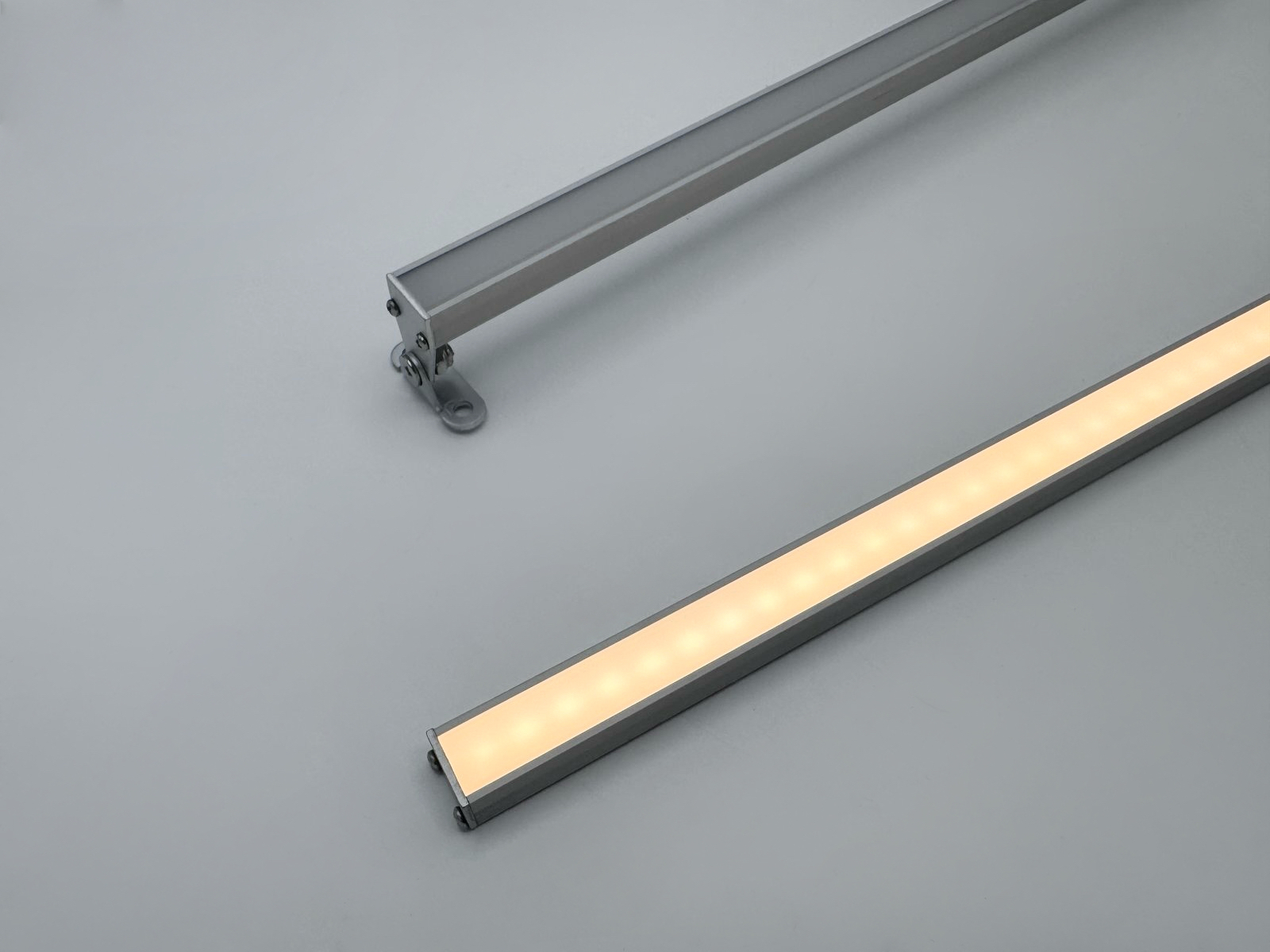

Nex-CN002
Dimension
H 11.8
W 14.6
mm
Clip / Bracket
/ Magnet
Linear · Surface Mount · Indoor
Nex-CN002

Versatile H11.8×W14.6mm linear with three mounting modes — fixing clip, adjustable bracket, or magnet. Up to 1560 lm/m at 24 W/m. Osram chip, 3-step MacAdam, DALI/DMX.

IP
IP40
CCT
3000K
3500K
4000K
CRI
CRI ≥90
Output
1040 lm/m
16 W/m
24V DC
Dimming
0-10V
1-10V
DALI
DMX
Cert
CE
KC
BIS

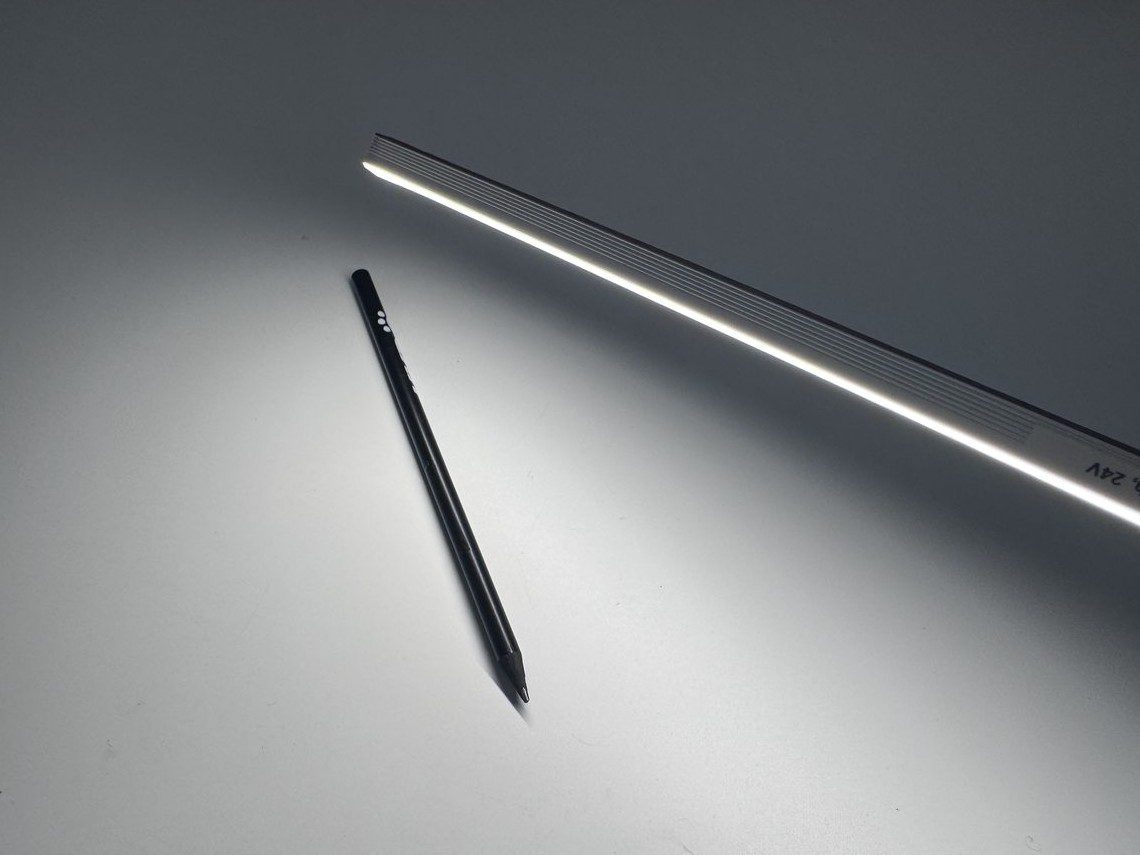

Nex-CN005
Dimension
H 9
W 8
mm
Tape / Clip
/ Magnet
Linear · Surface Mount · Indoor
Nex-CN005

Ultra-slim H9×W8mm with tape, clip, or magnet fixing — ideal for coves and recessed channels. Up to 1008 lm/m at 14 W/m. Osram chip, 3-step MacAdam, 100° diffused optic.

IP
IP40
CCT
3000K
3500K
4000K
CRI
CRI ≥90
Output
1008 lm/m
14 W/m
24V DC
Dimming
0-10V
1-10V
DALI
DMX
Cert
CE
KC
BIS

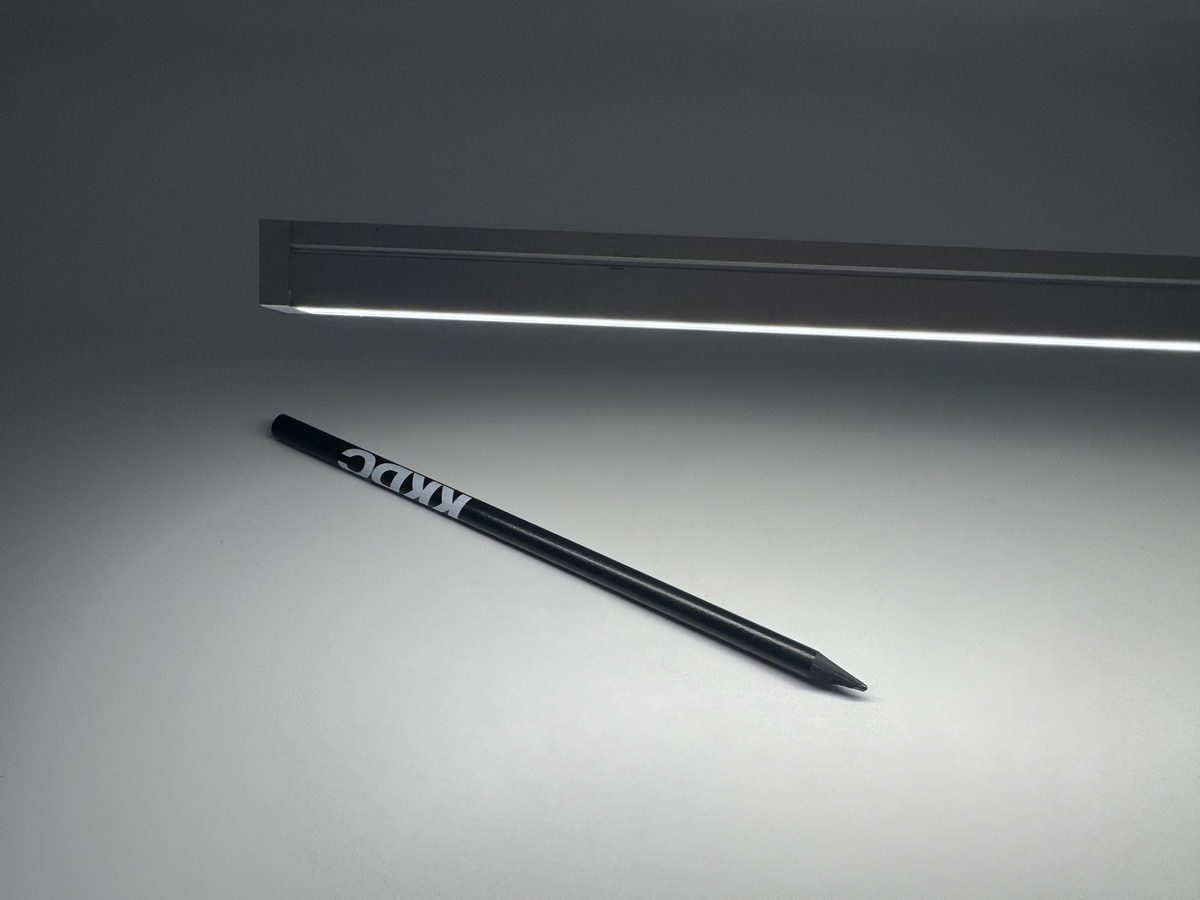

Nex-CN007
Dimension
H 15
W 17
mm
Fixing Clip
/ Magnet
Linear · Surface Mount · Indoor / Outdoor
Nex-CN007

The only IP66-rated linear in the CN range — designed for outdoor and wet-area use. Nichia chip, 2-step MacAdam. 18 W/m with diffused (1000 lm/m) or clear optic (1800 lm/m).

IP
IP66
CCT
3000K
3500K
4000K
CRI
CRI ≥90
Output
1000/1800 lm/m
18 W/m
24V DC
Dimming
0-10V
1-10V
DALI
Cert
CE
KC
Apex · Apex Mini · Nex-9 · Nex Mini
Full specs
coming soon

The complete Apex and Nex linear family. Updated datasheets and full specifications arriving shortly.

In preparation

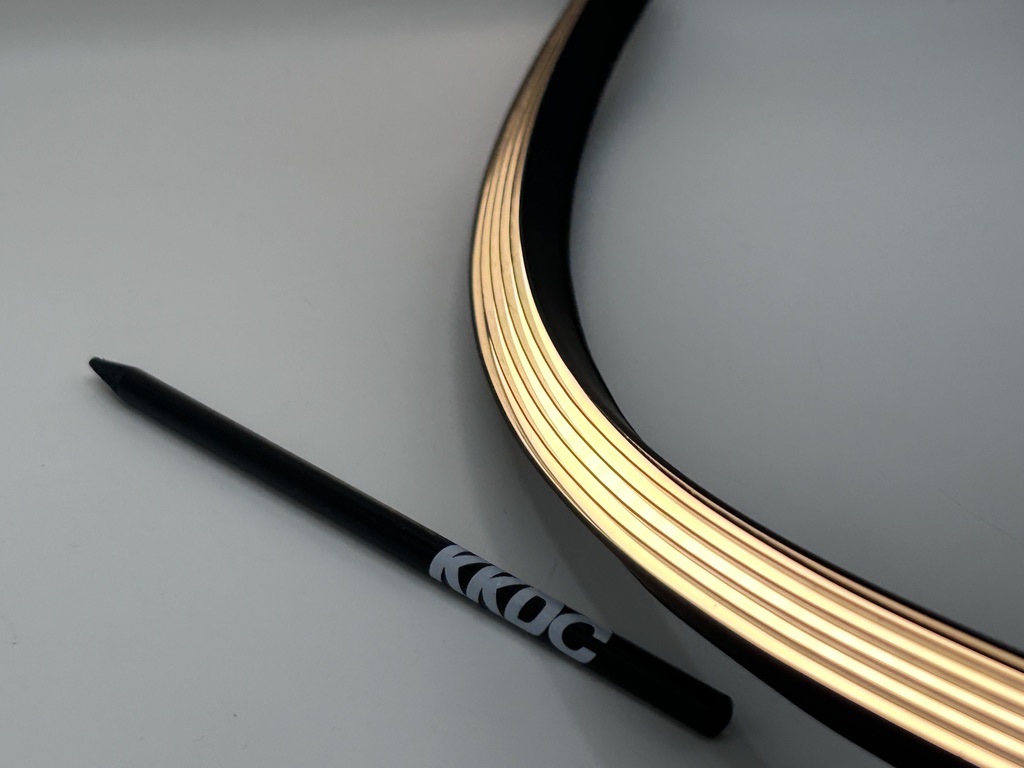

Onda-Line
Dimension
W 16
H 16
mm
Dual-Bend
Silicone Body
Flex · Silicone LED Profile · Dual-Bend
Onda-Line

Dual-axis flexible silicone linear with 120° open optic. Bends in two directions for complex coves, arches, and circular ceilings. 14 W/m · 450 lm/m · IP67 · 24 VDC.

IP
IP67
CCT
2700K
3000K
3500K
4000K
5000K
6000K
CRI
CRI ≥90
Output
14 W/m
450 lm/m
24V DC
Beam
120°
Dimming
0-10V
DALI
DMX

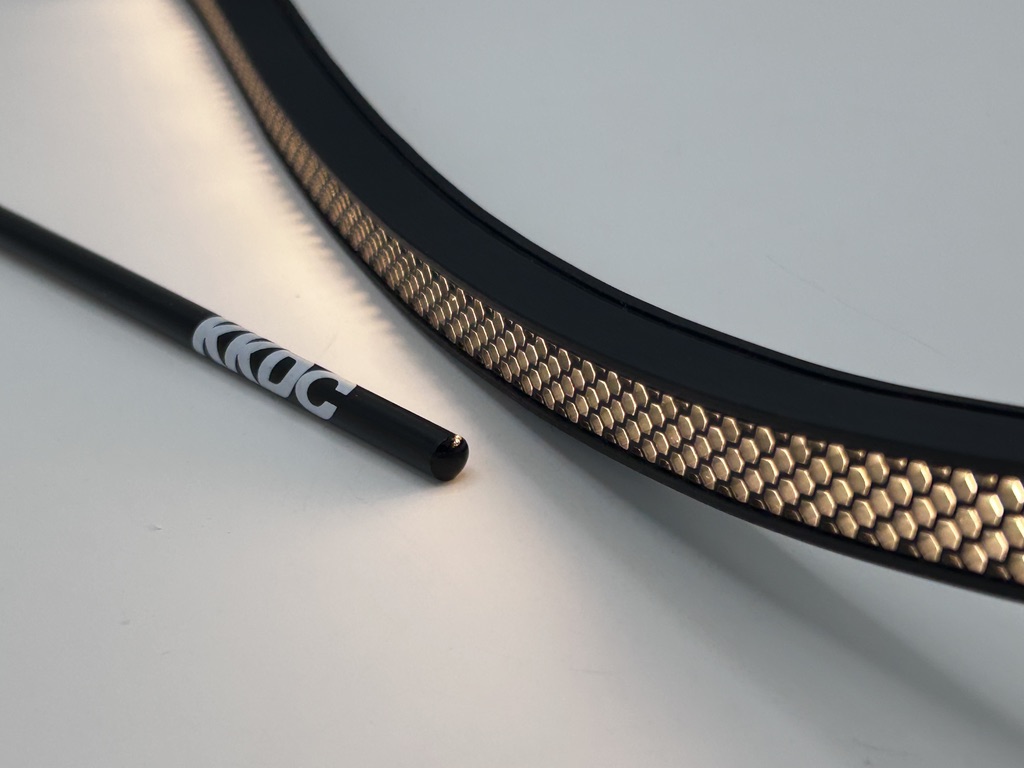

Onda-Honeycomb
Dimension
W 16
H 16
mm
Dual-Bend
Honeycomb Louvre
Flex · Silicone LED Profile · Dual-Bend
Onda-Honeycomb

Dual-axis flexible silicone linear with precision honeycomb anti-glare louvre — narrows beam to 50°. Engineered for coves and arched surfaces where glare control is critical. 14 W/m · 140 lm/m · IP67.

IP
IP67
CCT
2700K
3000K
3500K
4000K
5000K
6000K
CRI
CRI ≥90
Output
14 W/m
140 lm/m
24V DC
Beam
50°
Dimming
0-10V
DALI
DMX

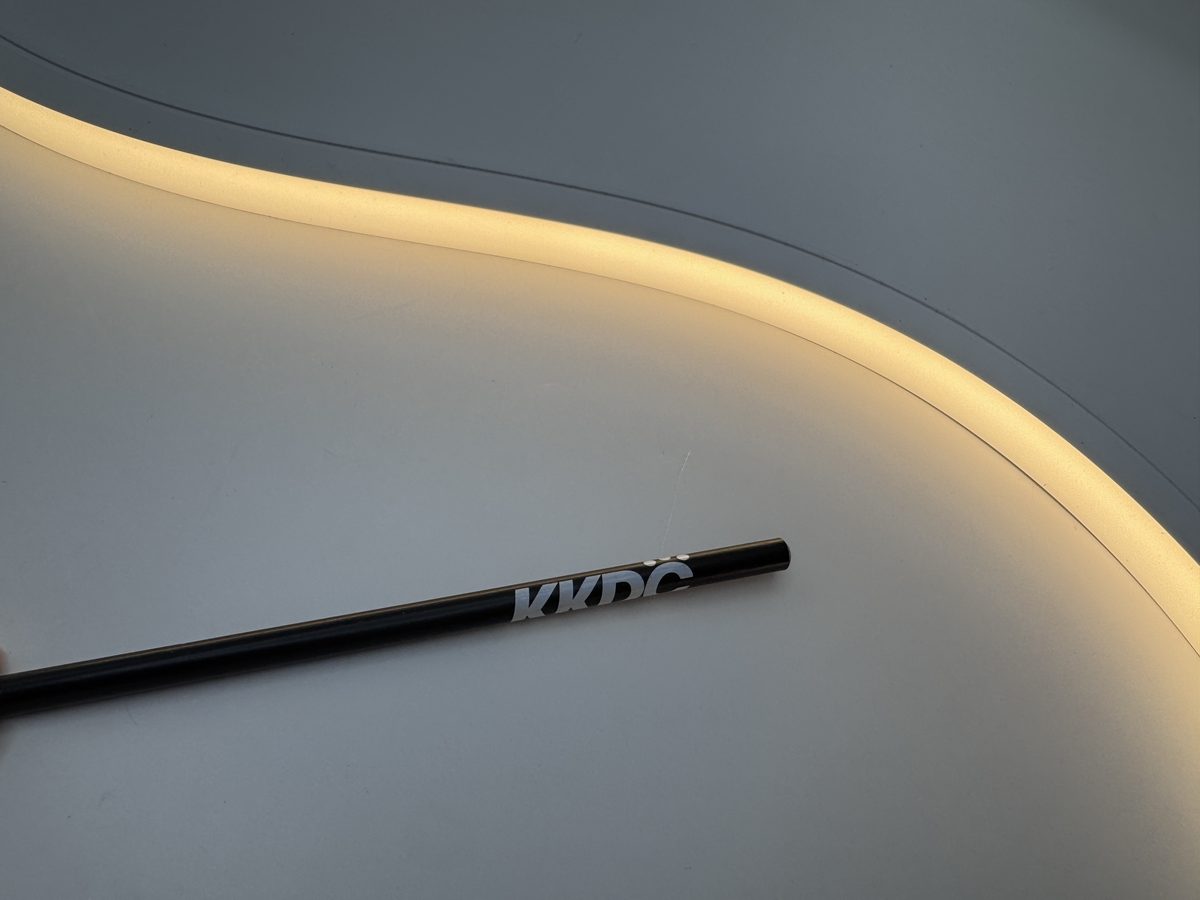

Onda-Longrun
Dimension
W 16
H 16
mm
Top-Bend
Long run max 20000mm
Flex · Silicone LED Profile · Top-Bend
Onda-Longrun

Single-axis flexible silicone linear with top-bend capability and 120° open optic. For curved coves and arches where single-plane bending is required. 14 W/m · 820 lm/m · IP67 · 24 VDC.

IP
IP67
CCT
2700K
3000K
3500K
4000K
CRI
CRI ≥90
Output
14 W/m
820 lm/m
24V DC
Beam
120°
Dimming
0-10V
DALI
DMX

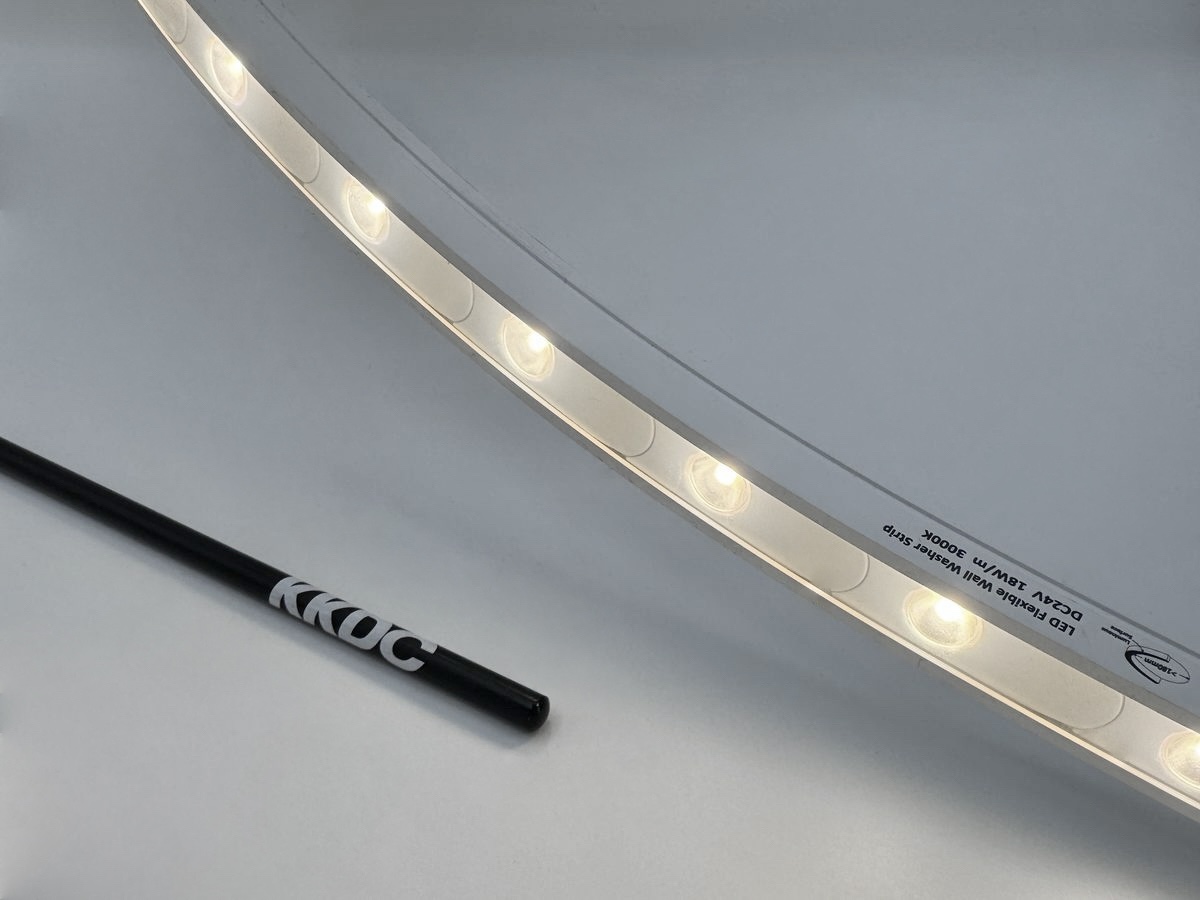

Onda-Lens
Dimension
W 20
H 15
mm
Multi-Optic
>100 lm/W
Flex · Silicone LED Profile · Dual-Bend
Onda-Lens

High-output dual-bend flexible silicone with five selectable beam angles from 15° to 60°. Suited for precision coves and accent lighting requiring tight beam control. 18 W/m · 1860 lm/m · IP67 · Max run 5 m.

IP
IP67
CCT
2700K
3000K
3500K
4000K
5000K
6000K
CRI
CRI ≥90
Output
18 W/m
1860 lm/m
24V DC
Beam
15°
25°
30°
45°
60°
Dimming
0-10V
DALI
DMX

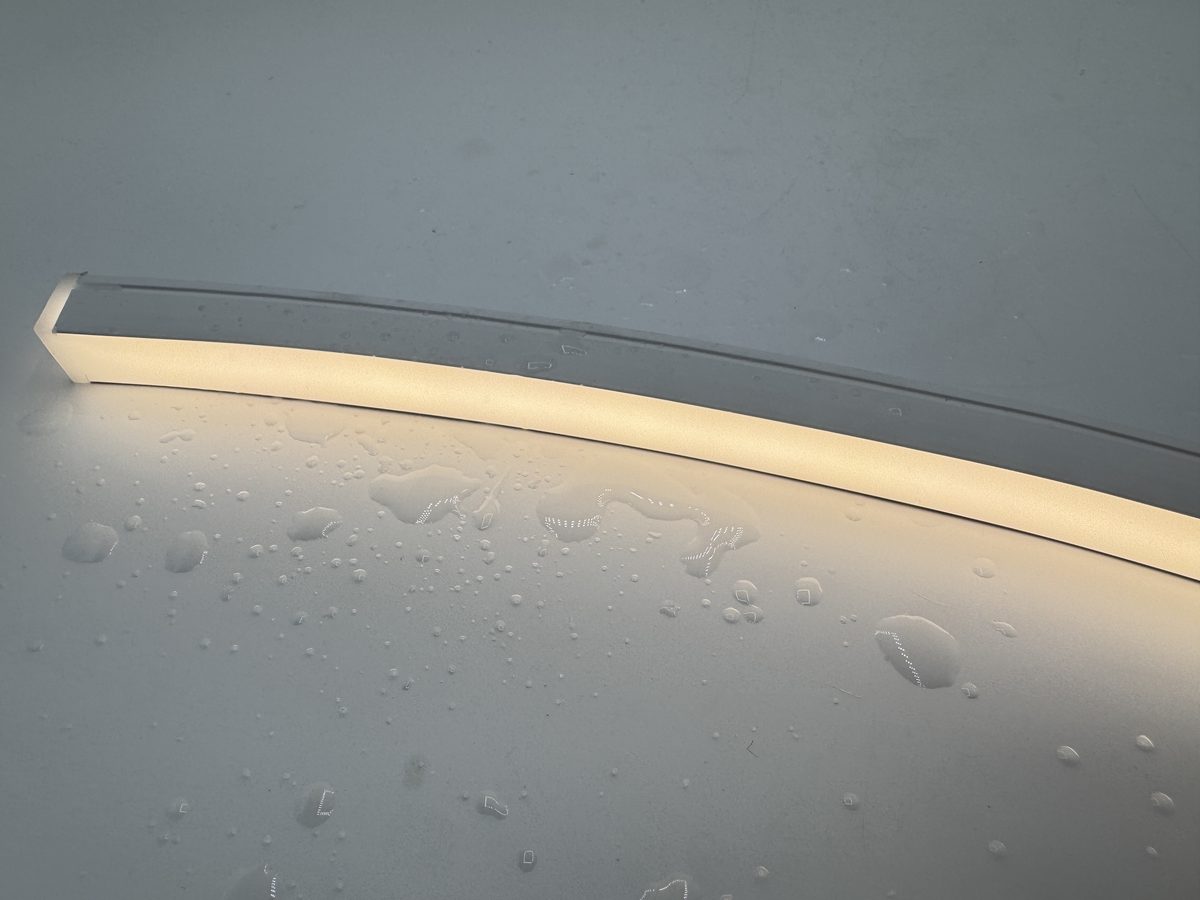

Onda-U-Water
Dimension
W 13
H 13
mm
Side-Bend
IP68/IP69K
Flex · Silicone LED Profile · Side-Bend
Onda-U-Water

Fully submersible side-bend flexible silicone with 120° open optic, rated IP68/IP69K. For underwater, poolside and extreme wet-area installations requiring full immersion protection. 12 W/m · 830 lm/m · IP68 · 24 VDC.

IP
IP68
IP69K
CCT
2700K
3000K
3500K
4000K
5000K
6000K
CRI
CRI ≥90
Output
12 W/m
830 lm/m
24V DC
Beam
120°
Dimming
0-10V
1-10V
DALI
DMX

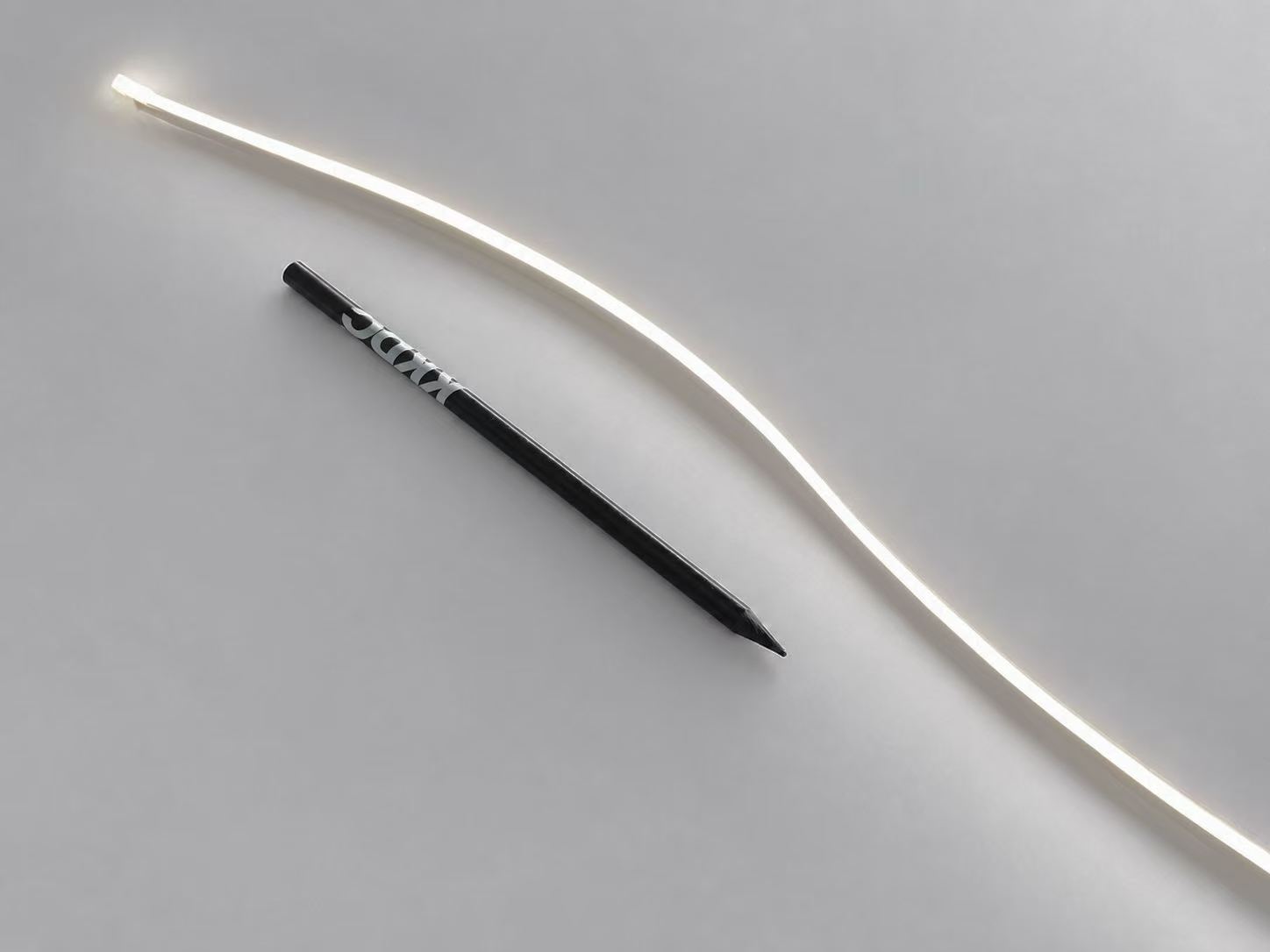

Onda-Pico
Dimension
W 3
H 6
mm
Side-Bend
Free-Cut
Flex · Silicone LED Profile · Side-Bend
Onda-Pico

The smallest profile in the KIT Concept Flex range at just H6×W3mm, free-cut to any length up to 5m. For fine architectural detailing, coves and tight-radius accents where the fixture must disappear. 9 W/m · 240 LED/m · IP54 · 24 VDC.

IP
IP54
CCT
2700K
3000K
3500K
4000K
5000K
6000K
CRI
CRI ≥90
Output
9 W/m
34 lm/m
24V DC
Beam
120°
Dimming
0-10V
1-10V
DALI
DMX

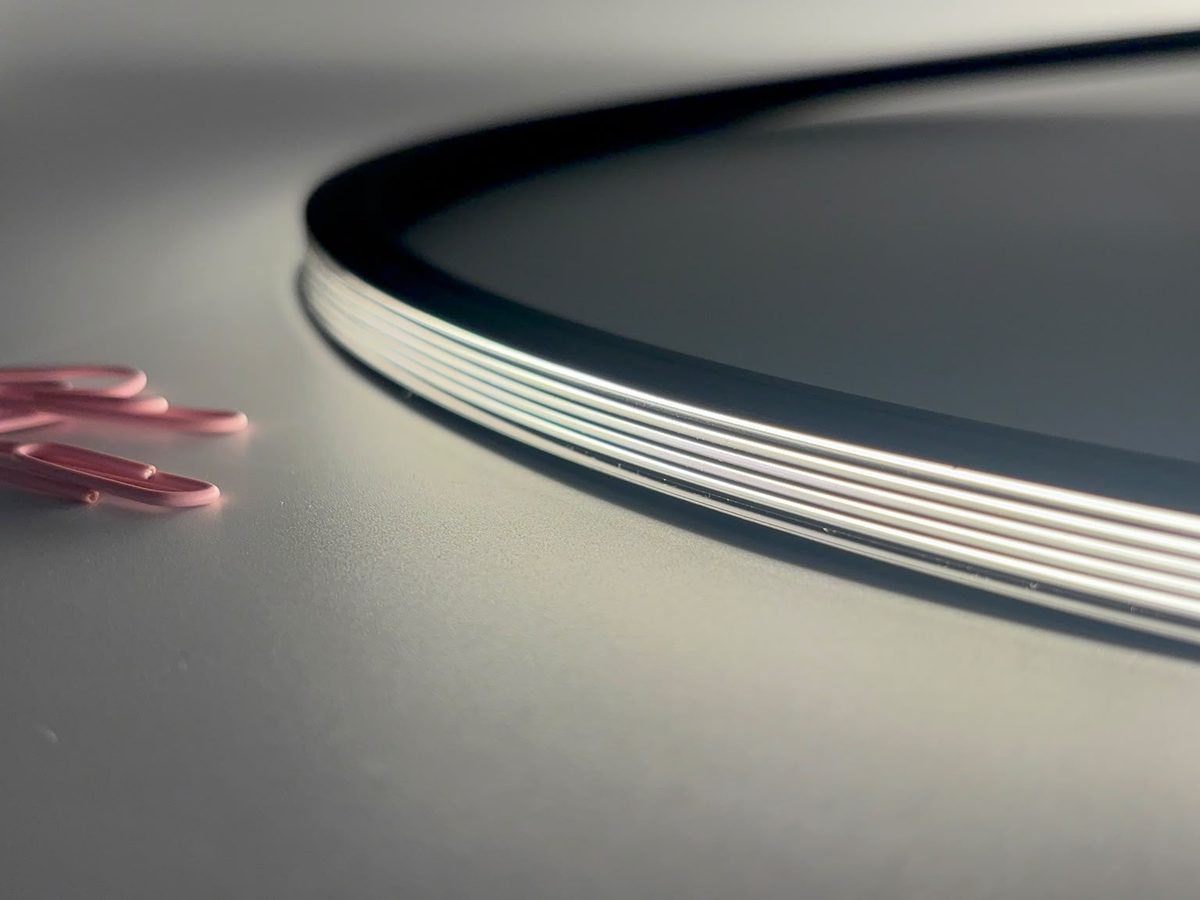

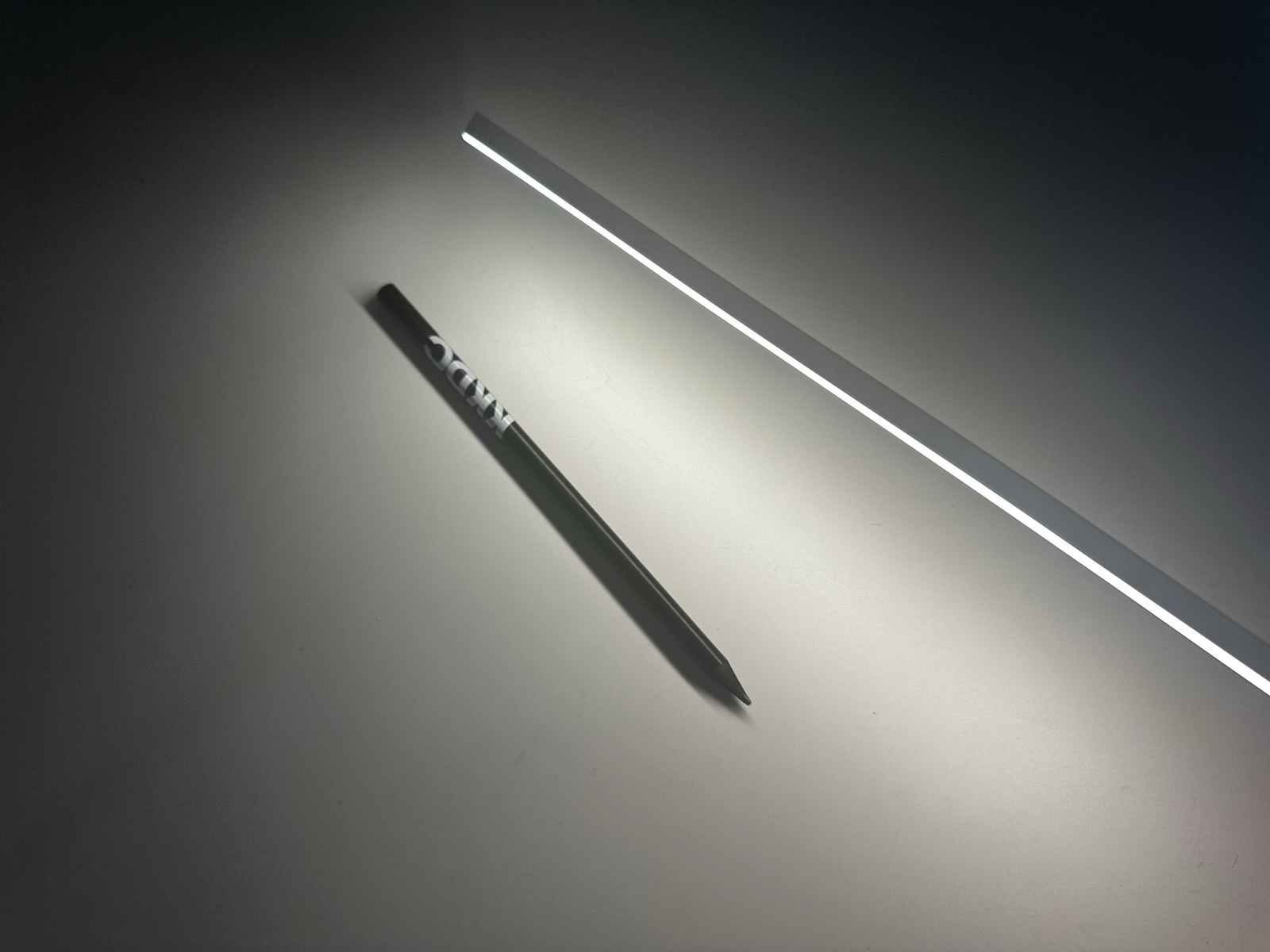

Onda-Line Nano
Dimension
W 10
H 10
mm
Top-Bend
Max run 5000mm
Flex · LED Line Profile · Top-Bend
Onda-Line Nano

Single-axis top-bend flexible LED line with a clean 35° optic in a slim H10×W10mm profile, free-cut to any length up to 5m. For indoor and outdoor coves, architraves, and continuous linear runs. 12 W/m · 156 lm/m · IP54 · 24 VDC.

IP
IP54
CCT
2700K
3000K
3500K
4000K
5000K
6000K
CRI
CRI 90
Output
12 W/m
156 lm/m
24V DC
Beam
35°
Dimming
0-10V
1-10V
PWM

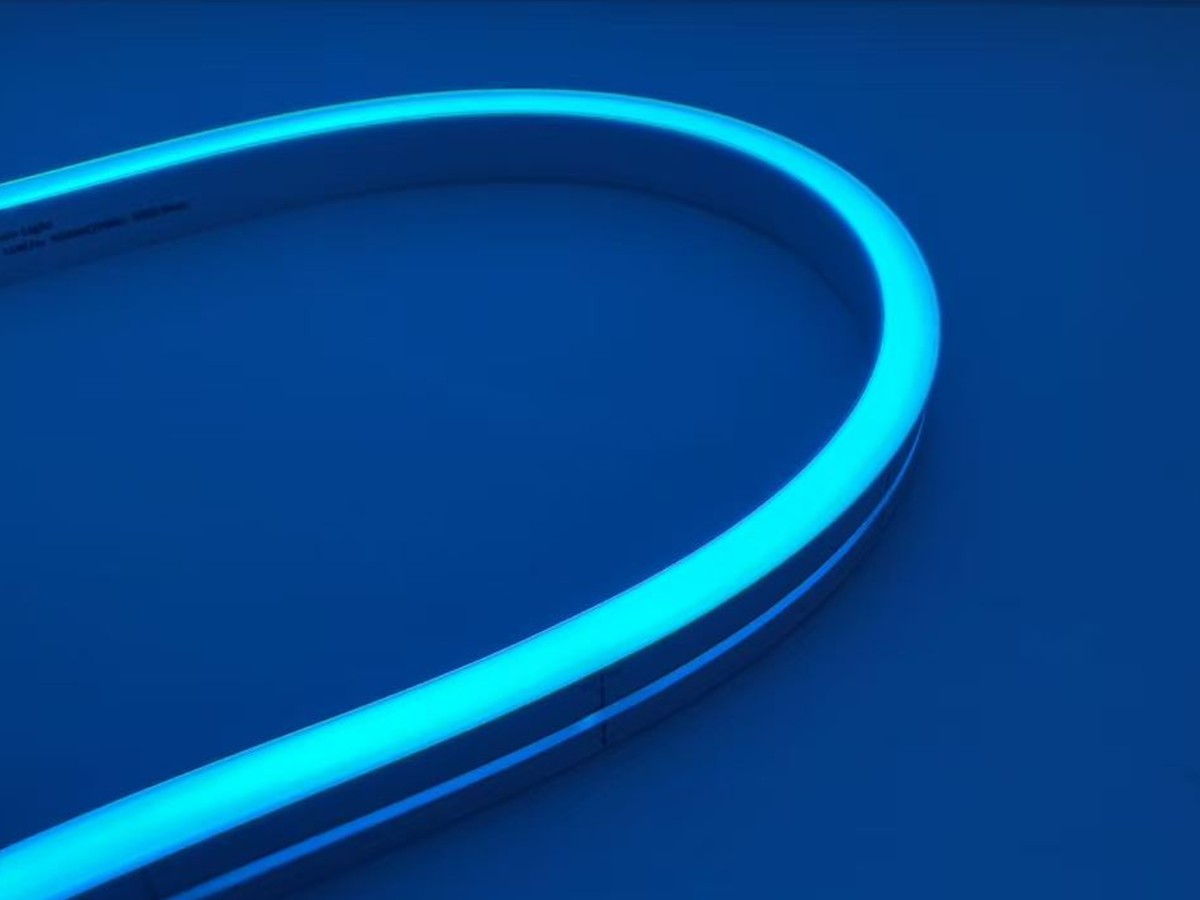

Onda-Giulia
Dimension
W 20
H 10
mm
Side-Bend
RGBW Color-Changing
Flex · Silicone LED Profile · Side-Bend
Onda-Giulia

RGBW color-changing side-bend flexible silicone with individually addressable control. For dynamic architectural accents and color-changing coves, indoors or outdoors. 18 W/m · 220 lm/m · IP67 · IK06 · 24 VDC.

IP
IP67
IK06
Color
RGBW · 2700-6500K
CRI
CRI 90
Output
18 W/m
220 lm/m
24V DC
Beam
120°
Control
DMX
SPI
PWM

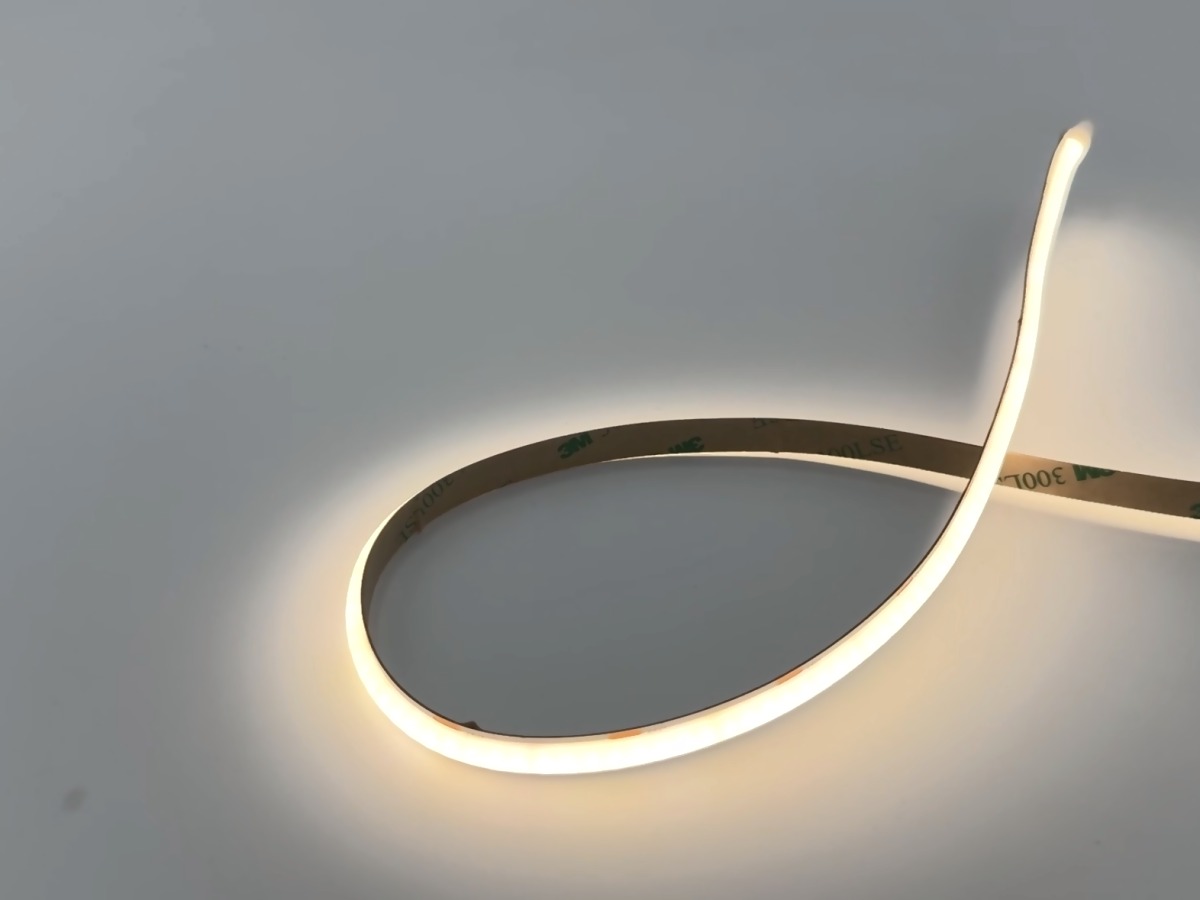

FLX-COB
Dimension
W 8
H 2.2
mm
Flexible PCB
Cut every 27.7mm
Flex · COB LED Strip · Surface Mount
FLX-COB

Dot-free COB LED strip with 288 LED/m and a 143° diffused optic for a smooth, continuous glow with no visible dotting. For coves, joinery, and continuous linear runs indoors. Three power options up to 19 W/m · IP20 · 24 VDC.

IP
IP20
CCT
2700K
3000K
3500K
4000K
CRI
Ra 90
Output
7-19 W/m
Up to 2374 lm/m
24V DC
Beam
143°
Dimming
0-10V
1-10V
DALI
DMX

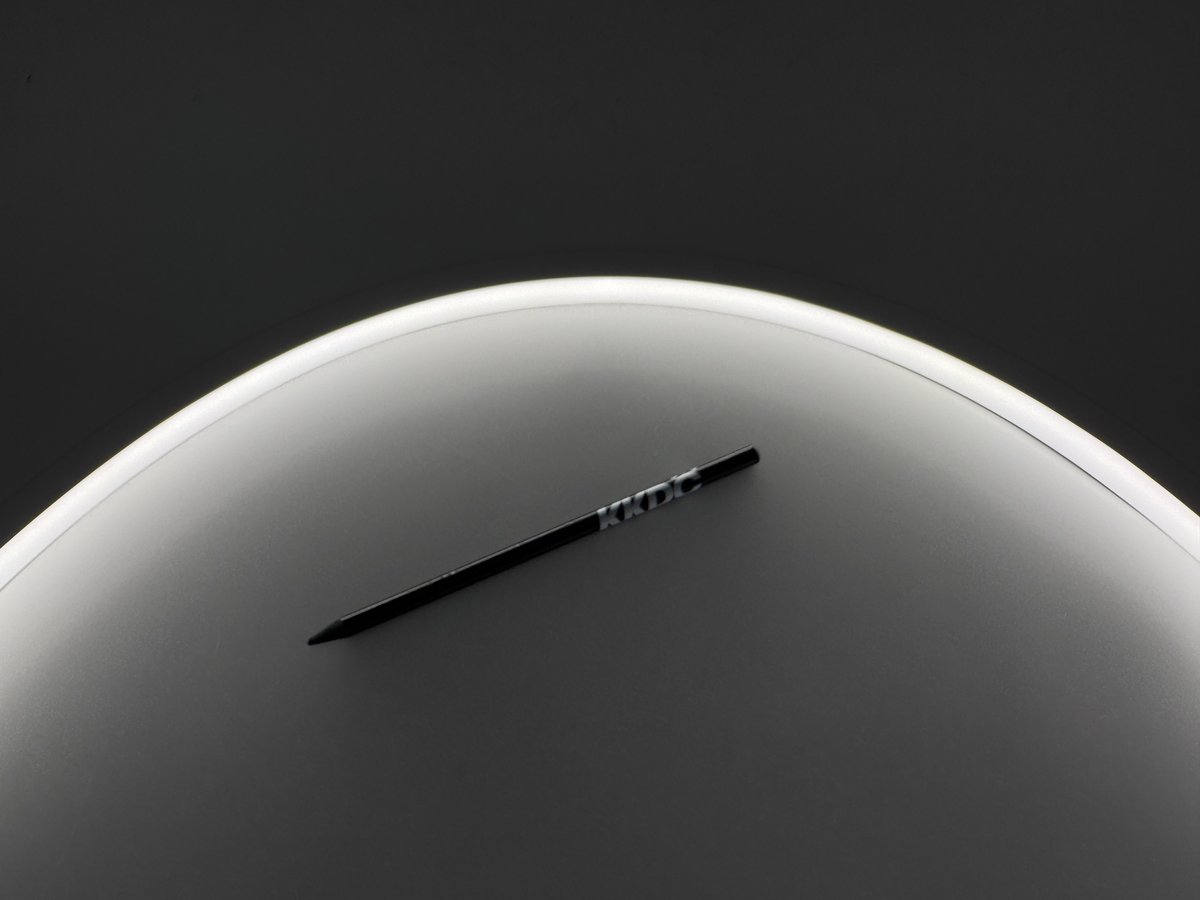

Onda-Aurora
Dimension
W 16
H 16
mm
Side-Bend / Top-Bend
White or RGBW
Flex · Silicone LED Profile · Side/Top-Bend
Onda-Aurora

Flex neon at H16×W16mm, side-bend (NS230) or top-bend (NS157), in two color options: white, ordered at one fixed CCT (2700K, 3000K, 3500K, 4000K, 5000K or 6000K), or RGBW color-changing with a white channel. 120 LED/m, 120° optic, free-cut to 5m runs. For architectural coves, arcs and outdoor accents where a clean, dot-free glow is needed. 14 W/m · IP67/IP68 · IK08 · 24VDC.

IP
IP67
IP68
IK08
Color
2700K
3000K
3500K
4000K
5000K
6000K
RGBW
CRI
CRI 90
Output
14 W/m
480–1040 lm/m
24V DC
Beam
120°
Control
0-10V
1-10V
DMX
DALI

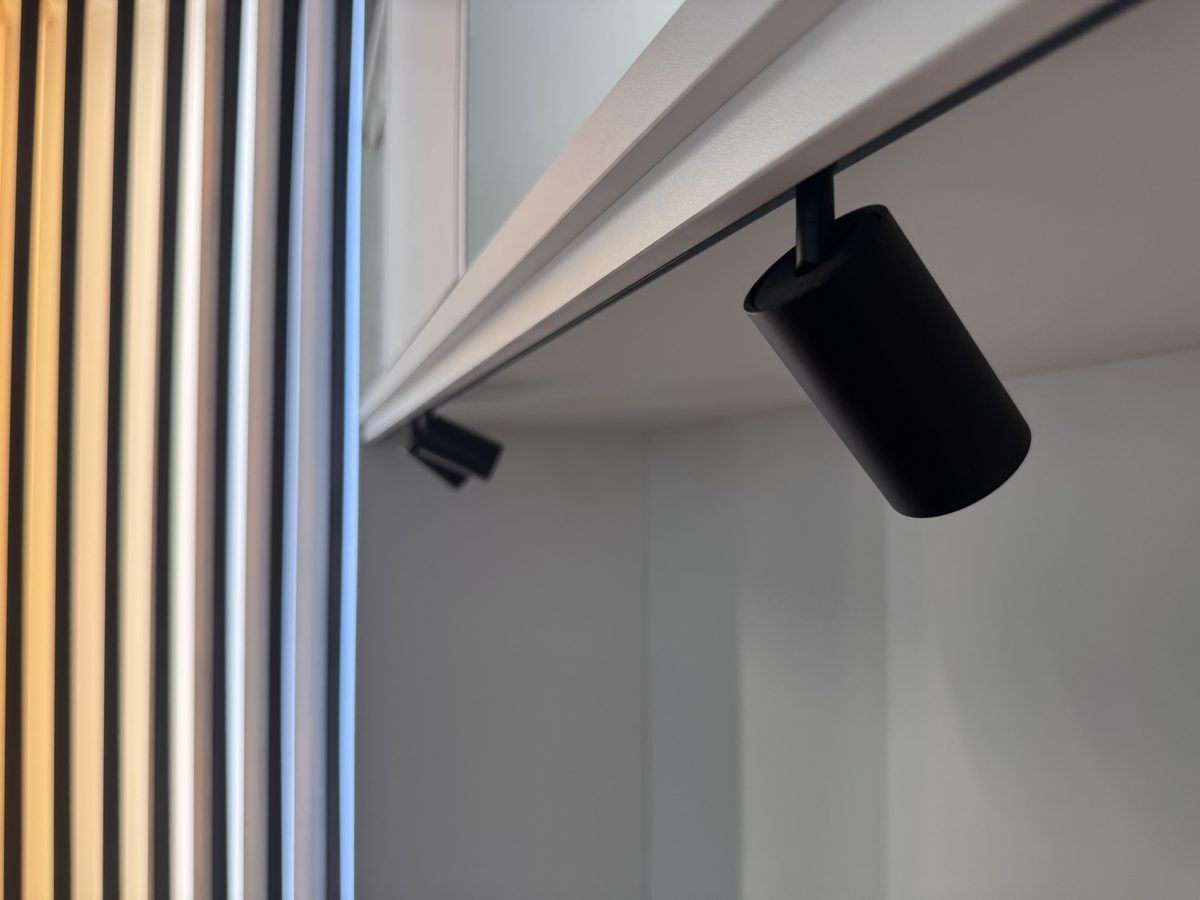

VV Spot 1 — single head
Dimension
H 85
⌀35
mm
Single Head
L 153mm
Spot & Downlight · 1 Head · 48V Magnetic
VV Spot 1

Single-head 6W magnetic track spot on Stucchi Micro track. DALI DT8 tunable white 2700K–6500K, CRI ≥90, beam 15°/24°/36°.

IP
IP20
CCT
2700K – 6500K
Output
6W
400 lm
48V DC
Beam
15°
24°
36°
Dimming
DALI DT8

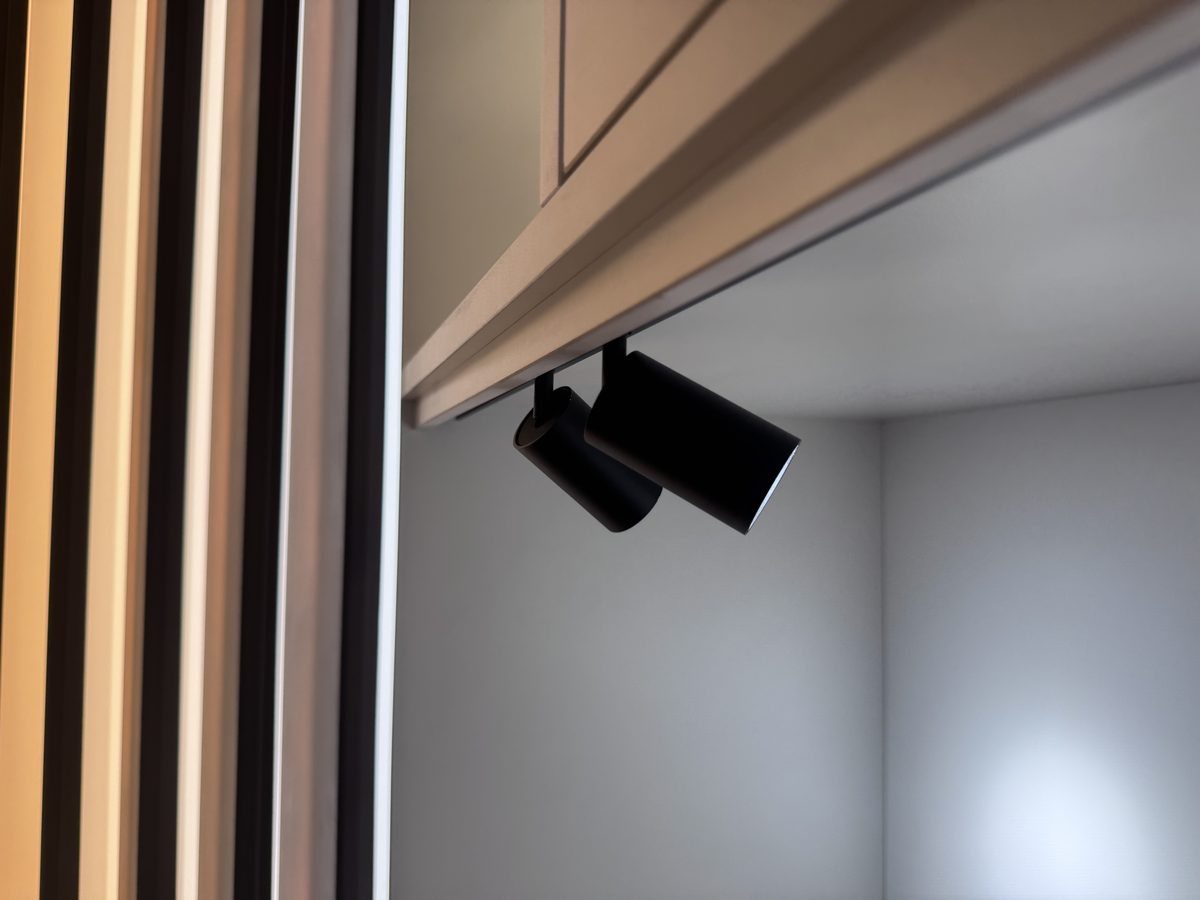

VV Spot 2 — double head
Dimension
H 80
⌀35
mm
Double Head
L 171mm
Spot & Downlight · 2 Heads · 48V Magnetic
VV Spot 2

Dual-head 10W magnetic track spot on Stucchi Micro track. DALI DT8 tunable white 2700K–6500K, CRI ≥90, beam 15°/24°/36°.

IP
IP20
CCT
2700K – 6500K
Output
2×5W
2×350 lm
48V DC
Beam
15°
24°
36°
Dimming
DALI DT8

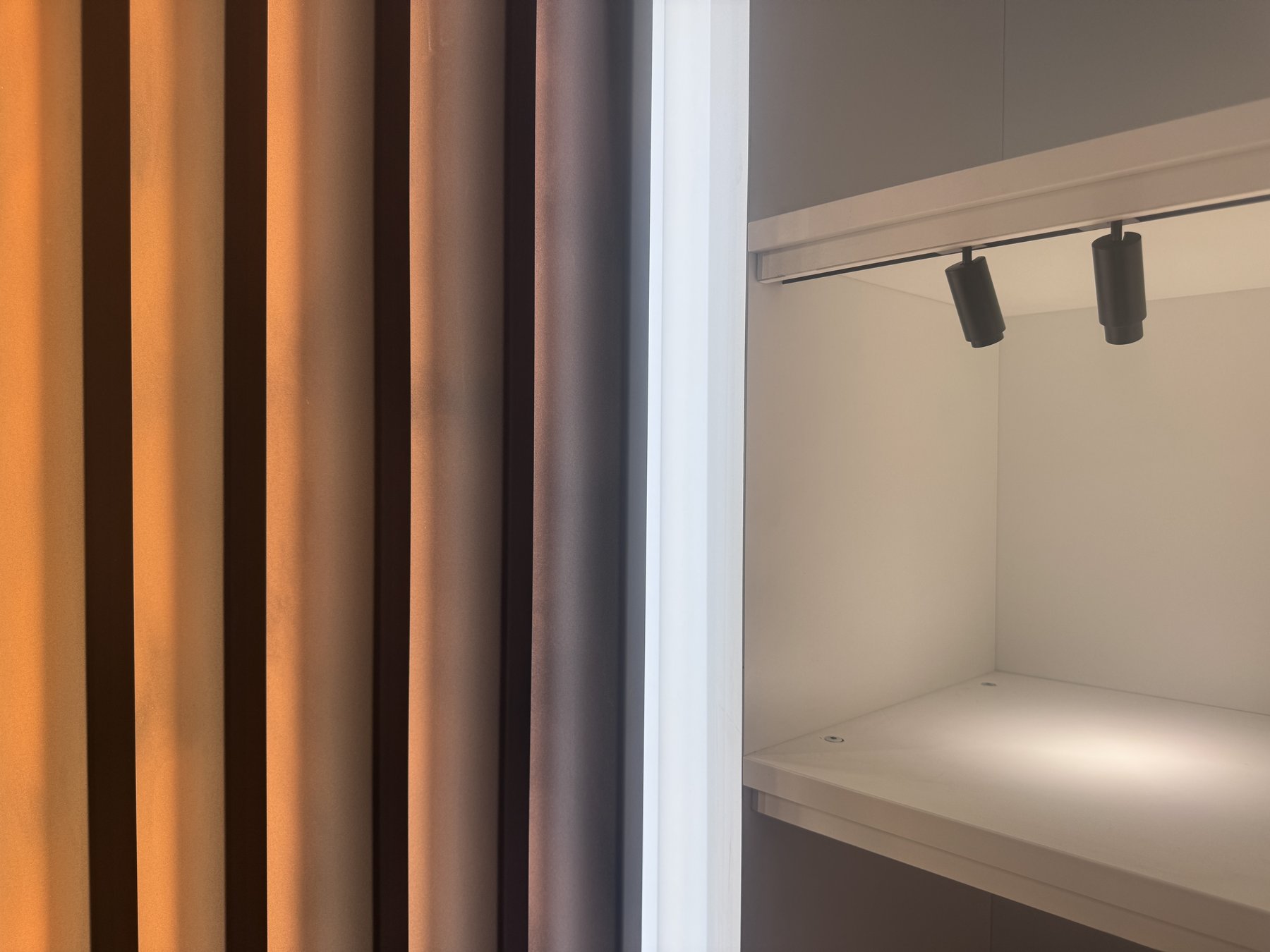

Mini Zoom — compact adjustable spotlight
Dimension
H 48
⌀24
mm
Track Mount
Spot & Downlight · Zoom 10°–40° · Track
Mini Zoom

Compact track spotlight with adjustable zoom 10°–40°. 2.1W, multi-CCT 3000–6000K, CRI ≥95, IP40. DALI / 0–10V dimming.

IP
IP40
CCT
3000K
3500K
4000K
6000K
Output
2.1W
Beam
10° – 40°
CRI
≥95
Dimming
DALI
0–10V
PWM
Coming Soon
Dimension
H 82
⌀93
mm
Recessed
IP65
Spot & Downlight · Recessed · Indoor / Outdoor
TUBO-990

Precision recessed downlight with CITIZEN LED COB engine. IP65 rated, 11W / 13W, five beam angles 15°–90°, CCT 2700K–5000K.

IP
IP65
CCT
2700K
3000K
3500K
4000K
5000K
Output
11W / 13W
811 / 927 lm
Beam
15°
24°
36°
60°
90°
Dimming
DALI DT8
1–10V
ON-OFF

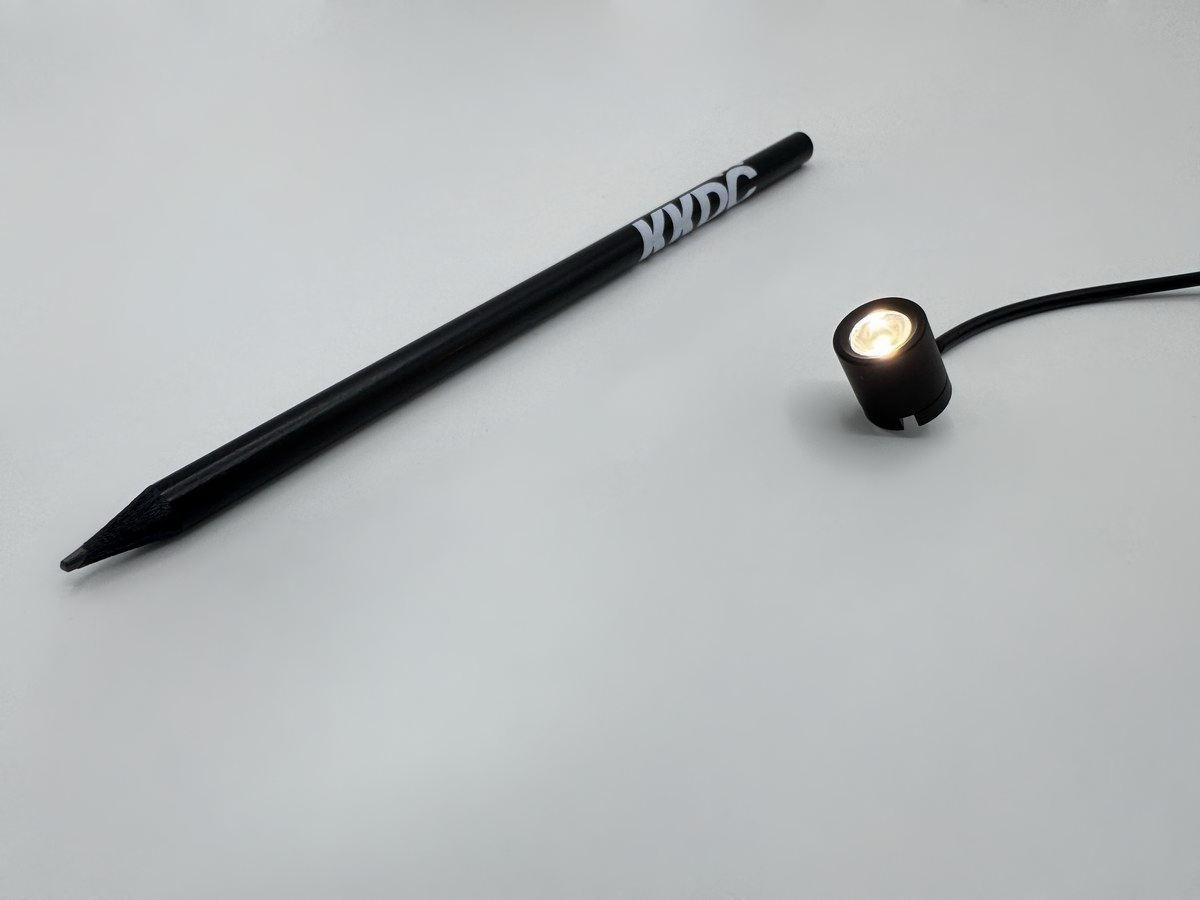

Micro Spot PFS
Dimension
H 15
W 12.5
mm
Magnet
IP20
Spot & Downlight · Micro · Magnet Mount
Micro Spot PFS

Ultra-compact 15 × 12.5 mm magnetic spotlight. 1.6W, 106lm, 20° beam, Nichia chip, CRI ≥90. DALI / DMX / 0–10V dimming.

IP
IP20
CCT
3000K
4000K
Output
1.6W
106 lm
Beam
20°
Dimming
DALI
DMX
0–10V
1–10V

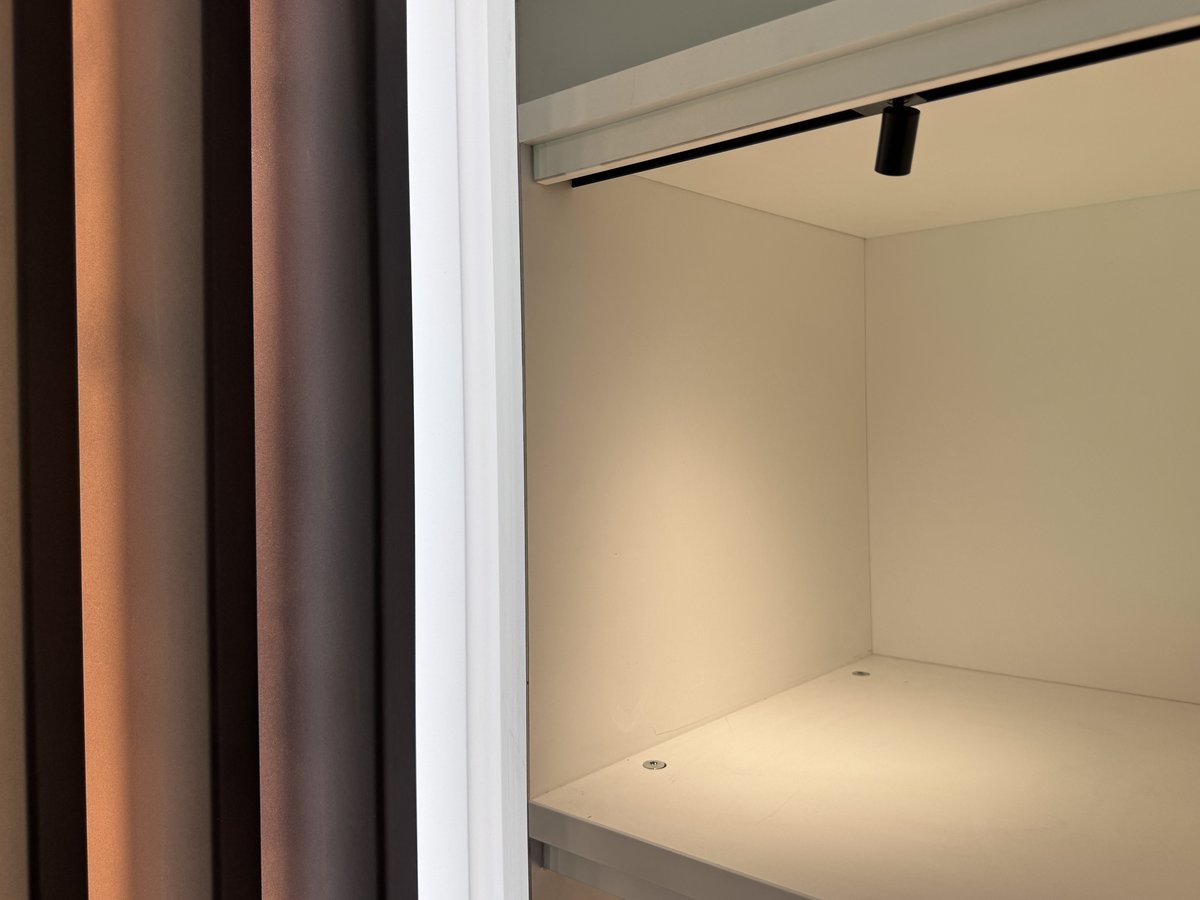

Mini Magnet A90D-1L
Dimension
H 38.5
⌀16
mm
24V Magnetic
IP40
Spot & Track · Magnetic Spotlight · Indoor
Mini Magnet A90D-1L

Ultra-compact 1.5W magnetic spot at just H38.5mm × Ø16mm. CRI ≥95, TM-30 Rf 94, six beam angles 5°–60°, full CCT range — minimal visual presence, maximum colour fidelity.

IP
IP40
CCT
2700K
3000K
3500K
4000K
CRI
≥95
Output
1.5W
85 lm
24V DC
Beam
15°
24°
38° / 45° / 60°
Dimming
DALI
0–10V
PWM

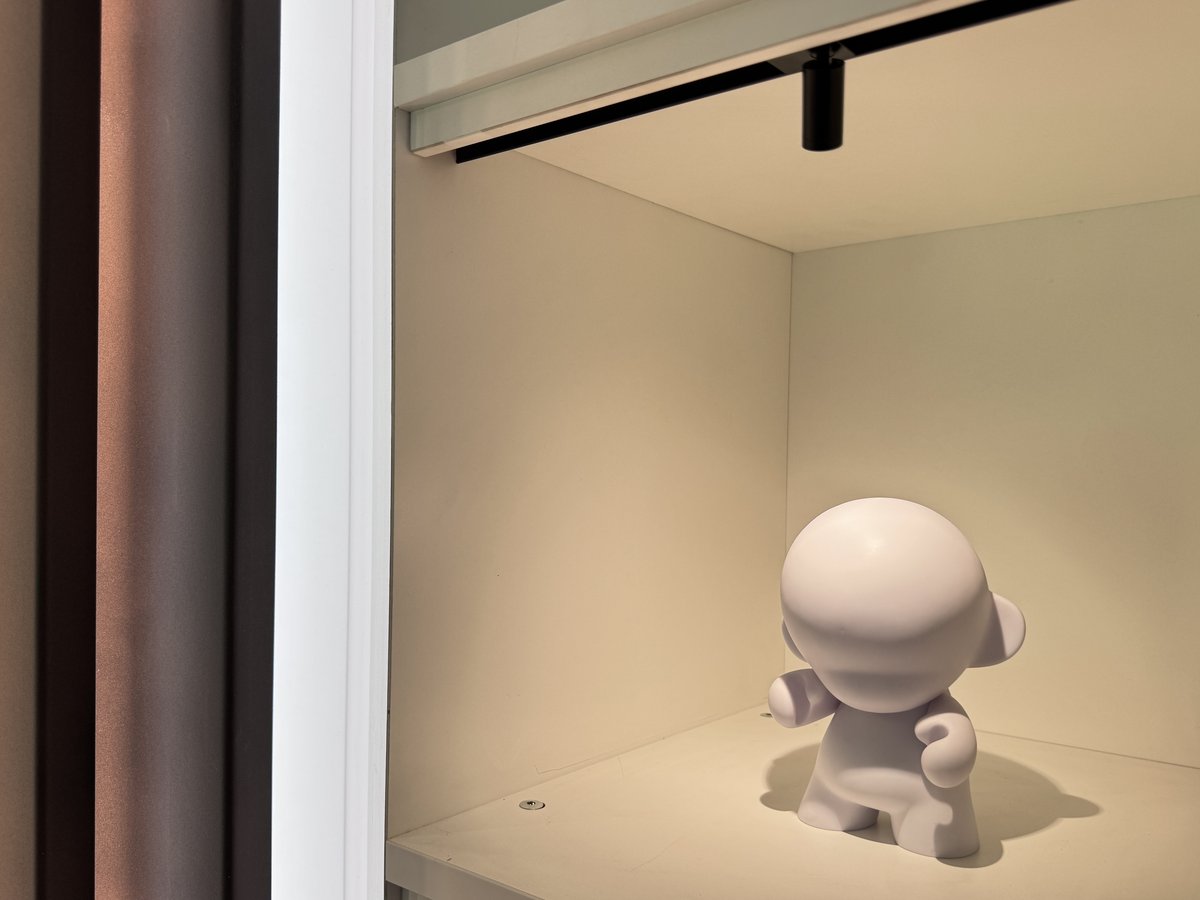

Mini Magnet A90D-2L
Dimension
H 65
⌀28
mm
24V Magnetic
IP40
Spot & Track · Magnetic Spotlight · Indoor
Mini Magnet A90D-2L

Compact 3W magnetic track spot with CRI ≥95 and 2-step MacAdam colour consistency. Six beam angles 5°–60°, full CCT range 2700K–6000K, tool-free snap-on magnetic mounting.

IP
IP40
CCT
2700K
3000K
3500K
4000K
CRI
≥95
Output
3W
200 lm
24V DC
Beam
15°
24°
30° / 45° / 60°
Dimming
DALI
0–10V
PWM

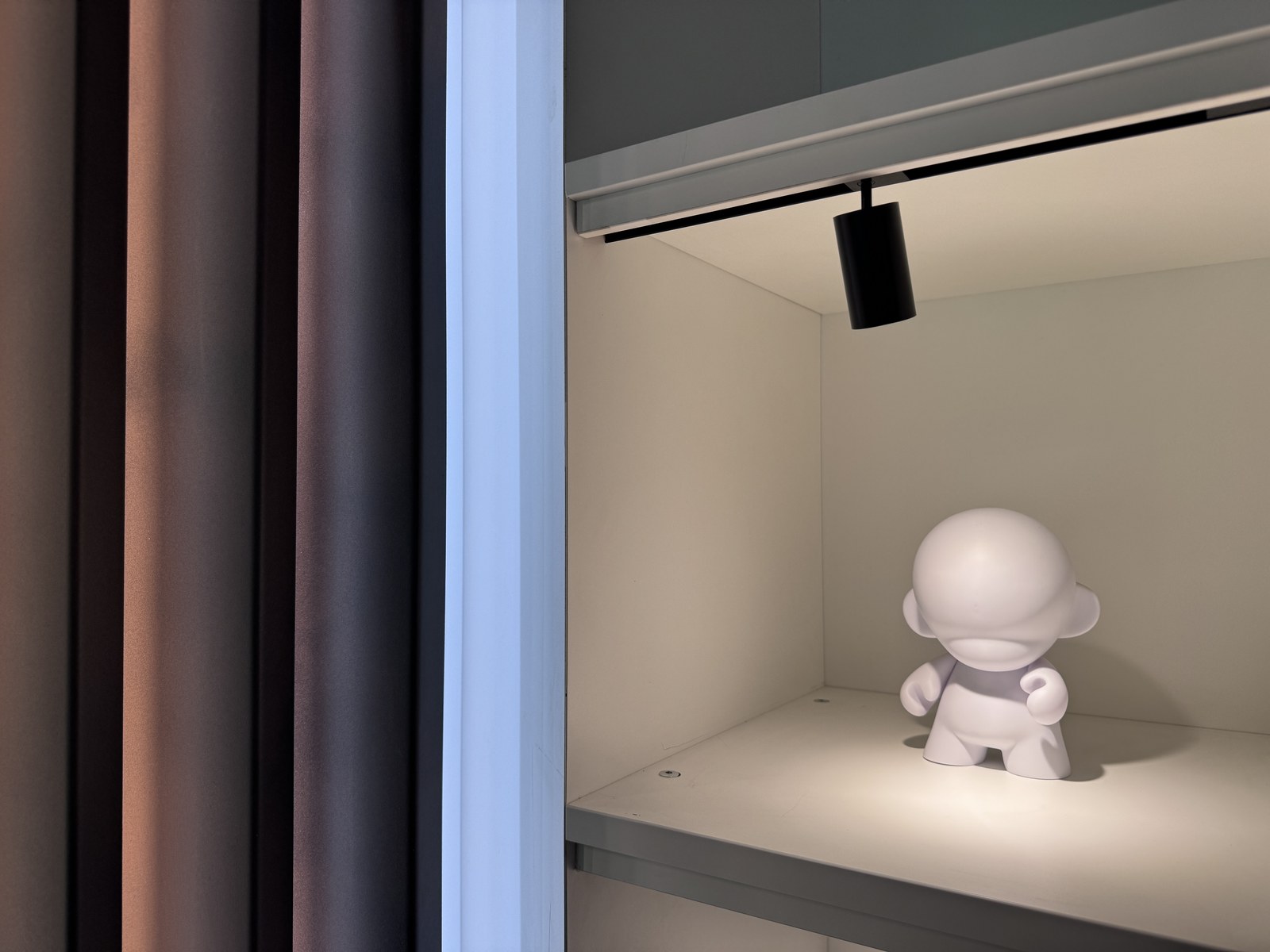

Mini Magnet A90D-5L — magnetic track spotlight
Dimension
H 73.5
⌀33
mm
24V Magnetic
IP40
Spot & Track · Magnetic Spotlight · Indoor
Mini Magnet A90D-5L

Compact 6W magnetic track spot with CRI ≥95 and 2-step MacAdam colour consistency. Six beam angles 5°–60°, full CCT range 2700K–6000K, tool-free snap-on magnetic mounting.

IP
IP40
CCT
2700K
3000K
3500K
4000K
5000K
6000K
CRI
CRI ≥95
2-step MacAdam
Output
6W
400 lm
Beam
15°
24°
30°
45°
60°
Dimming
DALI
0–10V
PWM

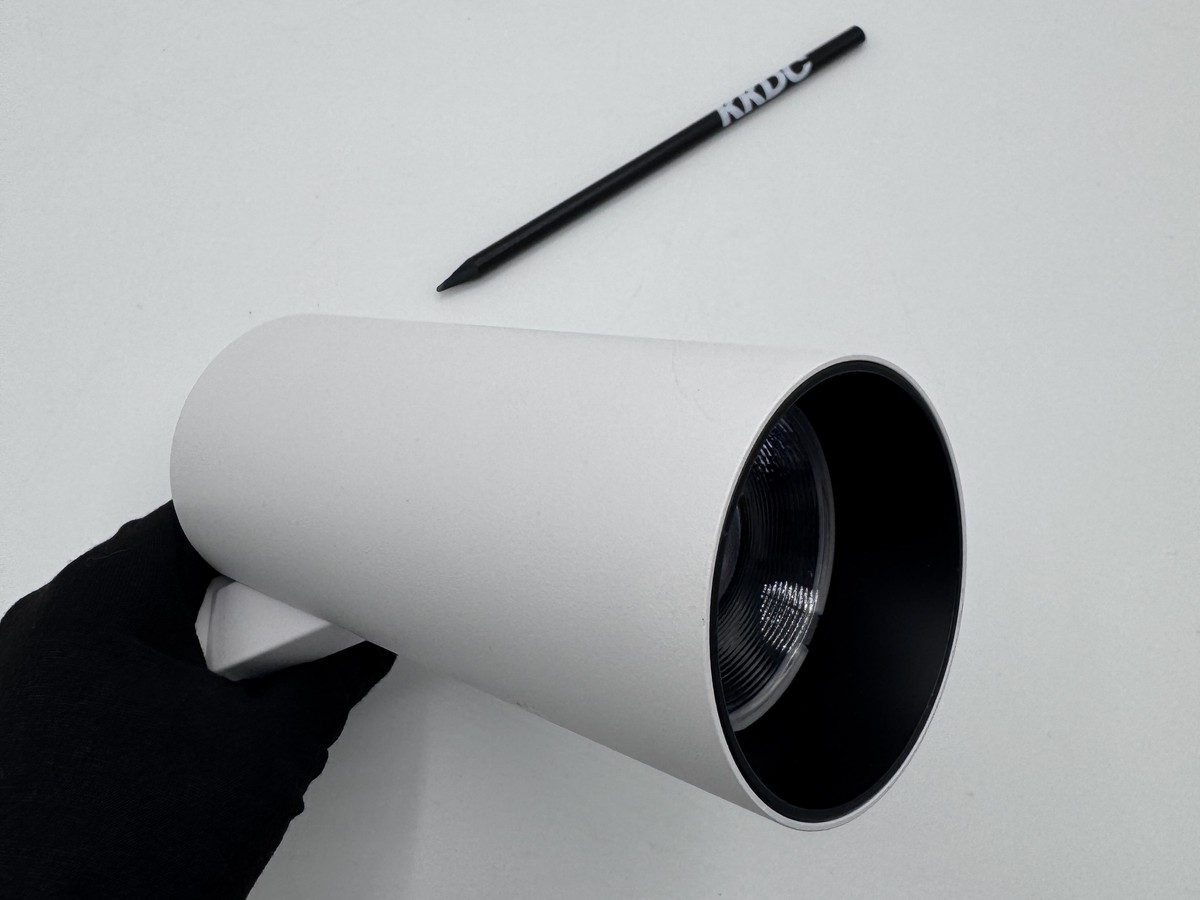

POZZO-H indoor track spotlight
Dimension
H 140
⌀55
mm
Track 3 Phase
IP20
Spot & Downlight · Track Spotlight · Indoor
POZZO-H

Precision track spotlight with Citizen LED engine. Three beam angles 24°/36°/60°, full CCT range 2700K–6000K, 3-step MacAdam ellipse. 12W / 1334lm, DALI / 0–10V dimming.

IP
IP20
CCT
2700K
3000K
3500K
4000K
5000K
6000K
CRI
CRI ≥90
Output
12W
1334 lm
Beam
24°
36°
60°
Dimming
DALI
0–10V
1–10V

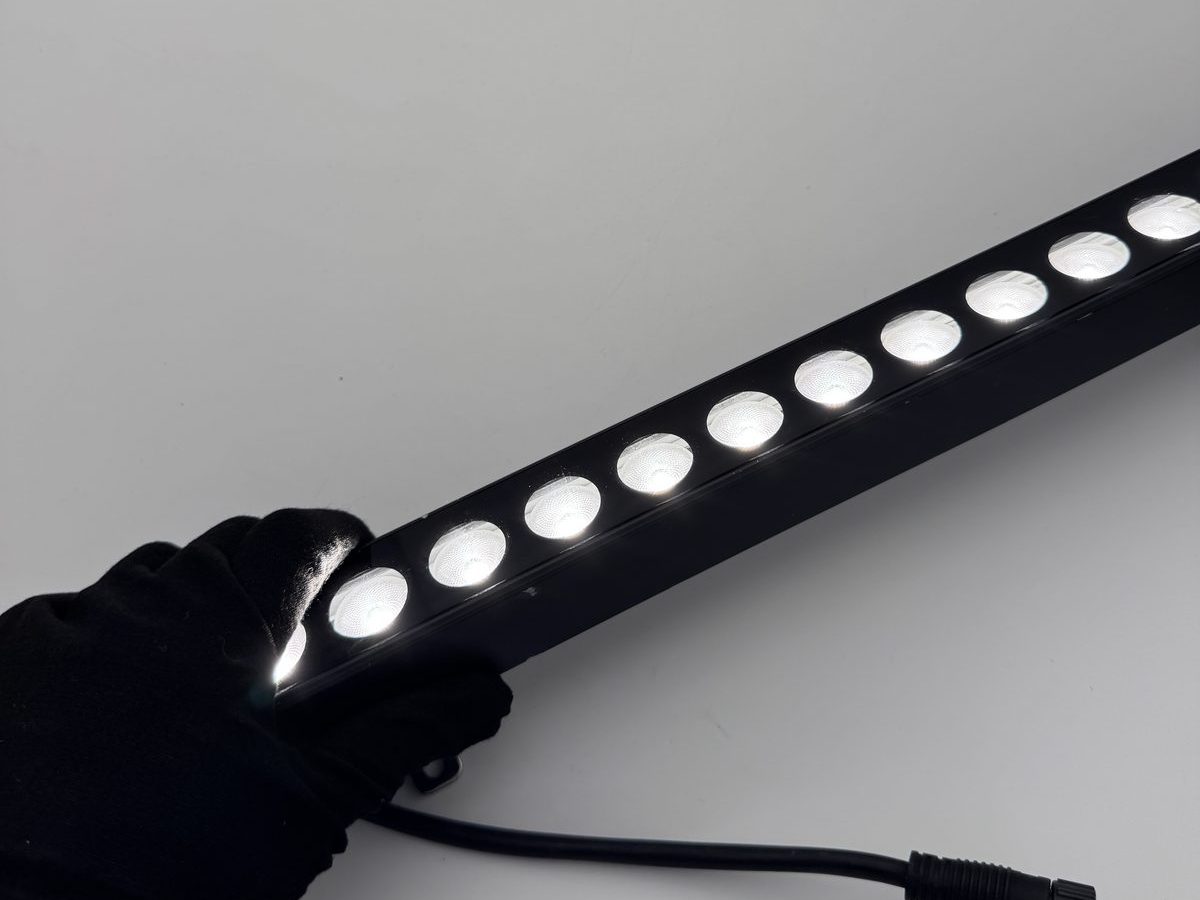

KKRWW38-MX
Dimension
H 38
W 38
mm
T-Adjustable Bracket
Surface Mount
Outdoor · Linear Wall Washer · IP66
KKRWW38-MX

High-power outdoor linear wall washer with adjustable T-bracket mounting. IP66, CRI ≥90. Beam angles 7°–60°, DALI / DMX, available in 300–1000mm lengths.

IP
IP20
IP66
CCT
3000K
3500K
4000K
5000K
CRI
CRI ≥90
Output
12–48 W/m
24V DC
Beam
15°
30°
45°
60°
Dimming
0-10V
DALI
DMX
PWM

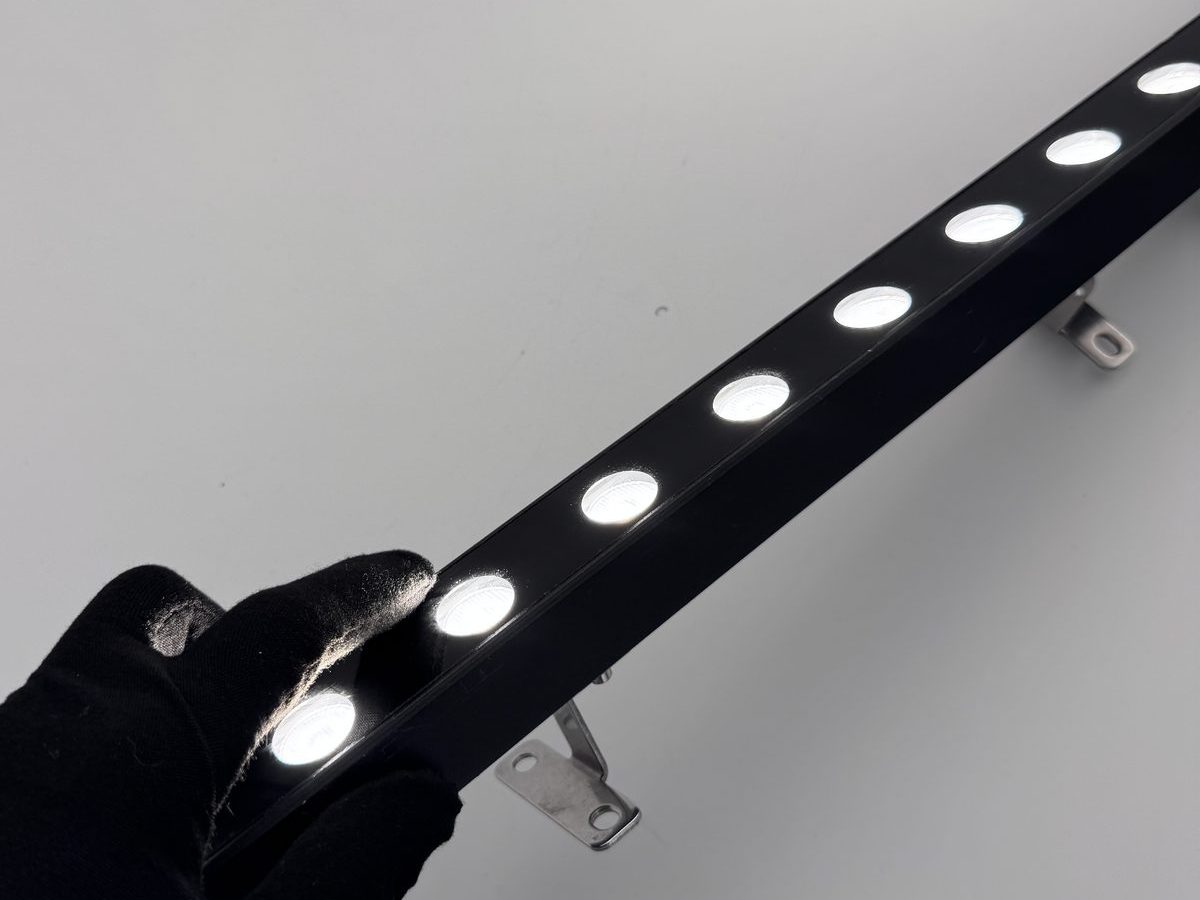

KKRWW33
Dimension
H 26.1
W 33
mm
T-Adjustable Bracket
IP66 · IK06
Outdoor · Linear Wall Washer · IP66
KKRWW33

Compact IP66 architectural wall washer with anti-glare louvre accessory. IK06, CRI ≥90. Available in 300mm, 500mm and 1000mm. Designed and manufactured in Italy.

IP
IP66
IK06
CCT
2700K
3000K
4000K
5000K
5700K
CRI
CRI ≥90
Output
18–24 W/m
24V DC
Beam
20°
30°
45°
20°×40°
Dimming
0-10V
DALI
DMX

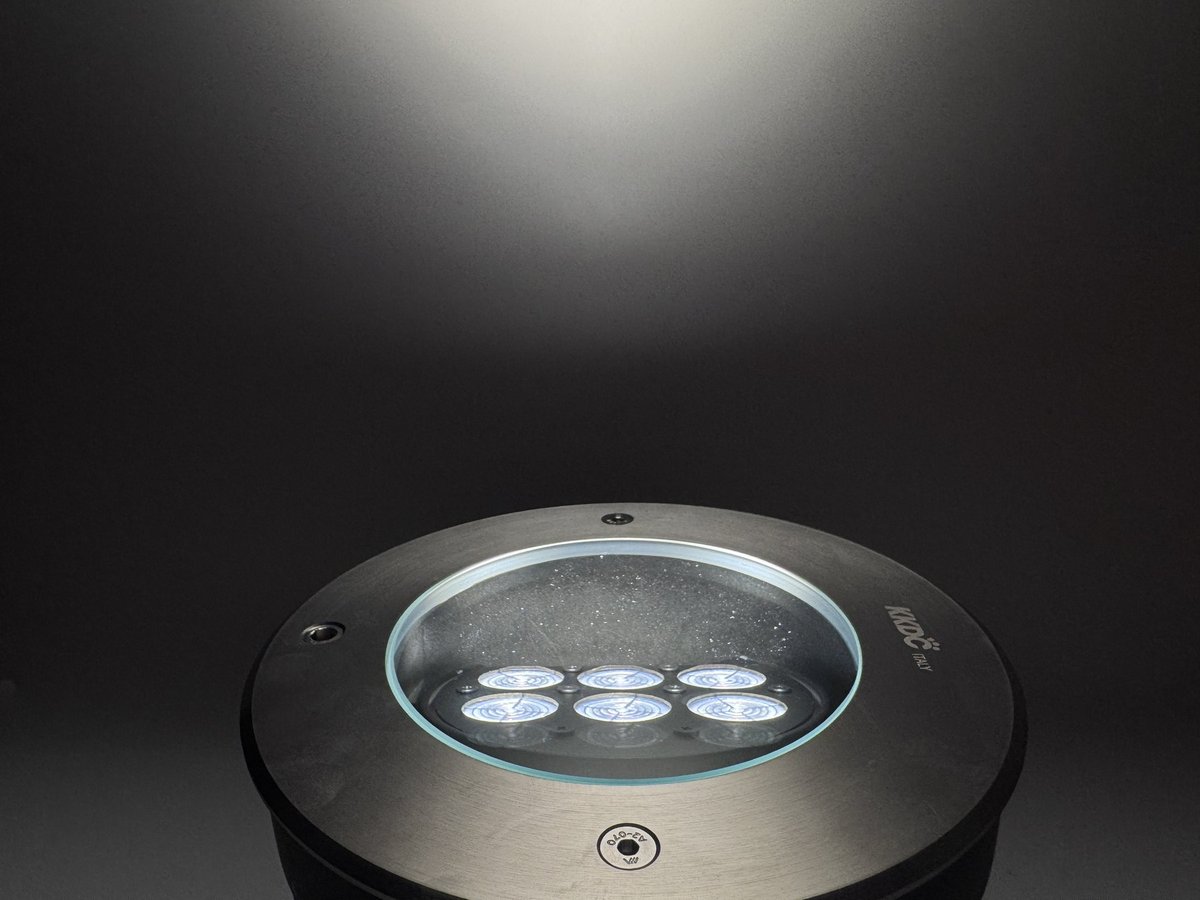

Twist-20 in-ground light
Dimension
H 163
φ 181
mm
In-Ground Mount
IP65 · IK10
Outdoor · In-Ground Light · IP65
Twist-20

IP65 IK10 in-ground spotlight with 20° precision beam and 1475 lm output. 316 stainless steel housing, static load 2000 kg, salt-spray tested >1000h. DALI / DMX.

IP
IP65
IK10
CCT
3000K
CRI
CRI ≥90
Output
15W
1475 lm
24V DC / 220V AC
Beam
20°
Dimming
ON/OFF
DALI
1-10V
DMX

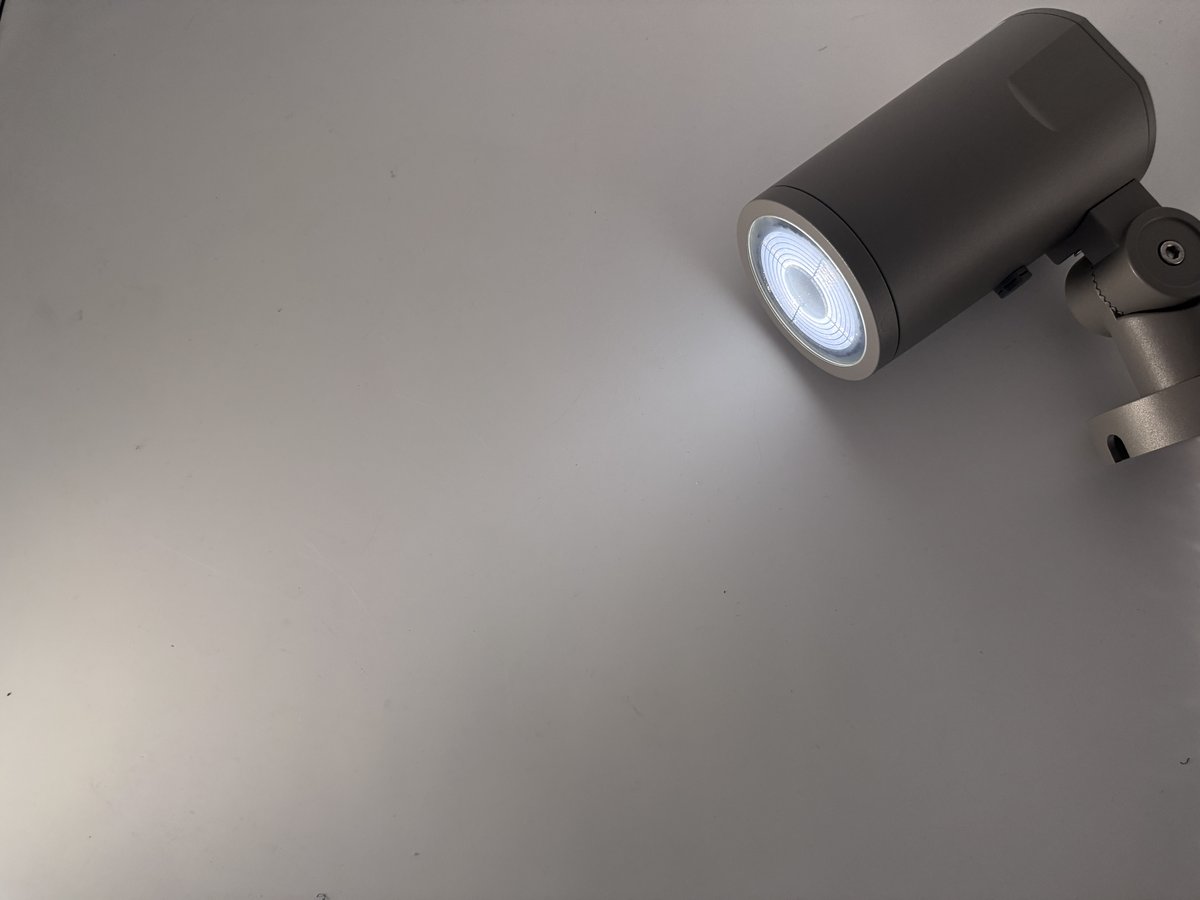

Laser Spot 2 ultra-narrow outdoor spotlight
Dimension
⌀84
H 138
mm
Adjustable Bracket
IP65 · IK05
Outdoor · Precision Spot · IP65
Laser Spot 2

Ultra-narrow 2° beam outdoor spotlight delivering 20,079 cd peak intensity. CNC-machined 6061 aluminium, 355° rotation, mechanical aiming lock, anti-glare louver.

IP
IP65
IK05
Output
3W
175 lm
20,079 cd
Beam
2° (FWHM)
Rotation
0–355°
Dimming
DALI
1–10V
DMX
ON–OFF

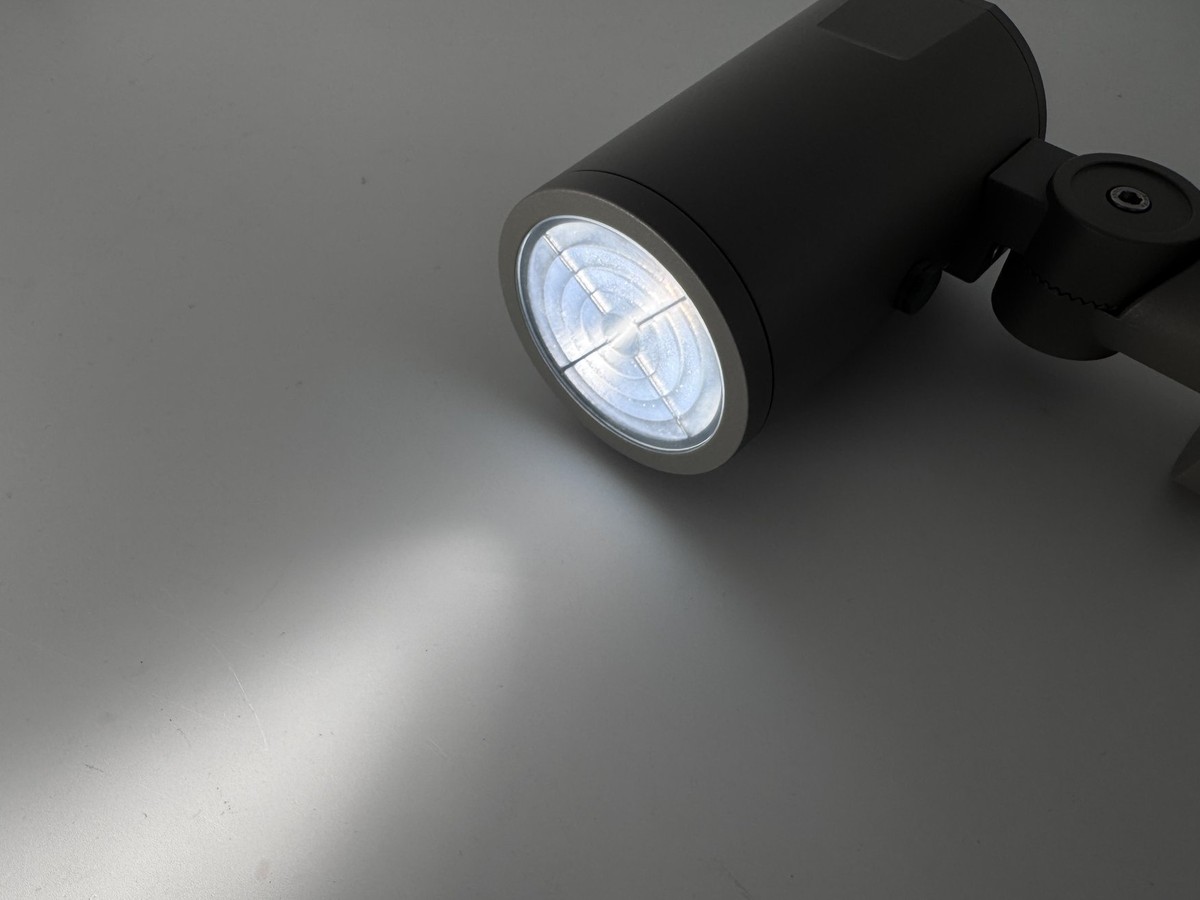

Laser Spot 12 wide-beam outdoor spotlight
Dimension
⌀84
H 138
mm
Adjustable Bracket
IP65 · IK05
Outdoor · Wide Beam Spot · IP65
Laser Spot 12

Wide 12° beam outdoor spotlight delivering 12,802 cd peak intensity. CNC-machined 6061 aluminium, 355° rotation, mechanical aiming lock, anti-glare louver.

IP
IP65
IK05
Output
18W
1,646 lm
12,802 cd
Beam
12° (FWHM)
Rotation
0–355°
Dimming
DALI
1–10V
DMX
ON–OFF

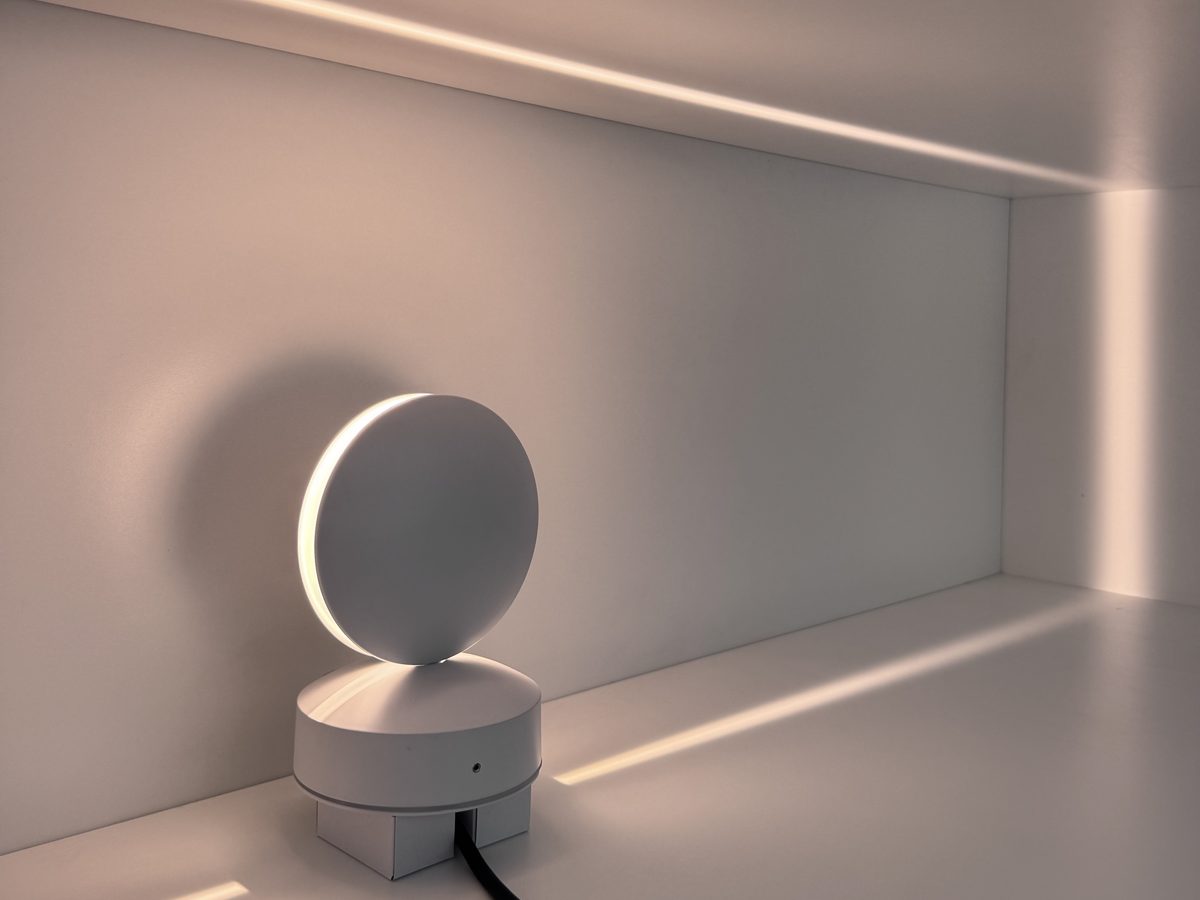

BLADE outdoor light shaper
Dimension
H 167
Ø 110
mm
Fixed Mount
IP65 · IK05
Outdoor · Light Shaper · IP65
BLADE

Outdoor light shaper with three 360° ring emitters — designed for facades, domes, windows and corridors. IP65, CRI ≥90, DALI/DMX.

IP
IP65
IK05
CCT
3000K
CRI
CRI ≥90
Output
10W
24V DC
Beam
3×360°
Dimming
1-10V
DALI
DMX

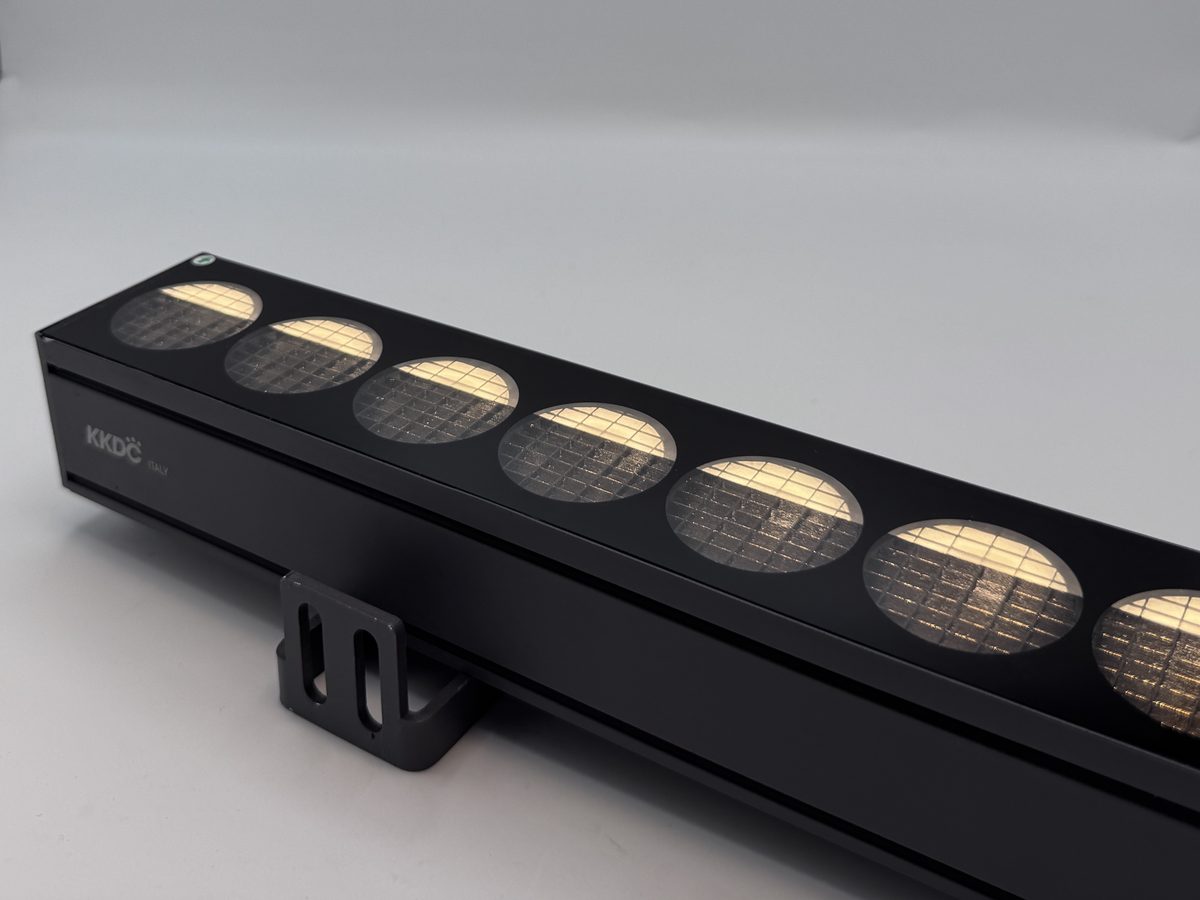

SHADE outdoor linear wall washer
Dimension
H 46
W 57
mm
Adjustable Bracket
IP65 · IK05
Outdoor · Linear Wall Washer · IP65
SHADE

Stretched-aluminium linear wall washer with 5° narrow beam and anti-glare micro-louvre optic for maximum visual comfort. IP65, IK05, CRI ≥90. DALI/1-10V/DMX.

IP
IP65
IK05
CCT
3000K
CRI
CRI ≥90
Output
72W
24V DC
Beam
Dimming
ON/OFF
1-10V
DALI
DMX
Coming Soon
Dimension
H 103
W 103
mm
Pedestal Mount
IP66 · IK08
Outdoor · Compact Spotlight · IP66
KKRFL50R

Compact IP66 outdoor spotlight with five selectable beam angles (8°–60°) and full CCT range. Die-cast aluminium, pedestal-mount with ±90° tilt, DALI/DMX.

IP
IP66
IK08
CCT
2700K
3000K
4000K
5000K
Output
10W
24V DC
Beam
15°
30°
45°
60°
Dimming
0-10V
DALI
DMX
No products match your search.

More products coming soon — contact us for full catalogue.

Get In Touch

Work with our team

We supply architects, lighting designers, and interior designers with reliable, specification-grade luminaires. Reach out for product specifications, samples, or project support.

Phone+39 02 83539019
ShowroomCorso Sempione 48, Milan
Specification Sheet
1 / ?
Loading…
