Flex Lighting — Ultra-Slim Micro Profile
Ref: Onda-Pico (NS-232)

Onda-Pico
Micro Flex

9 W/m · Side-Bend · IP54 · 24VDC

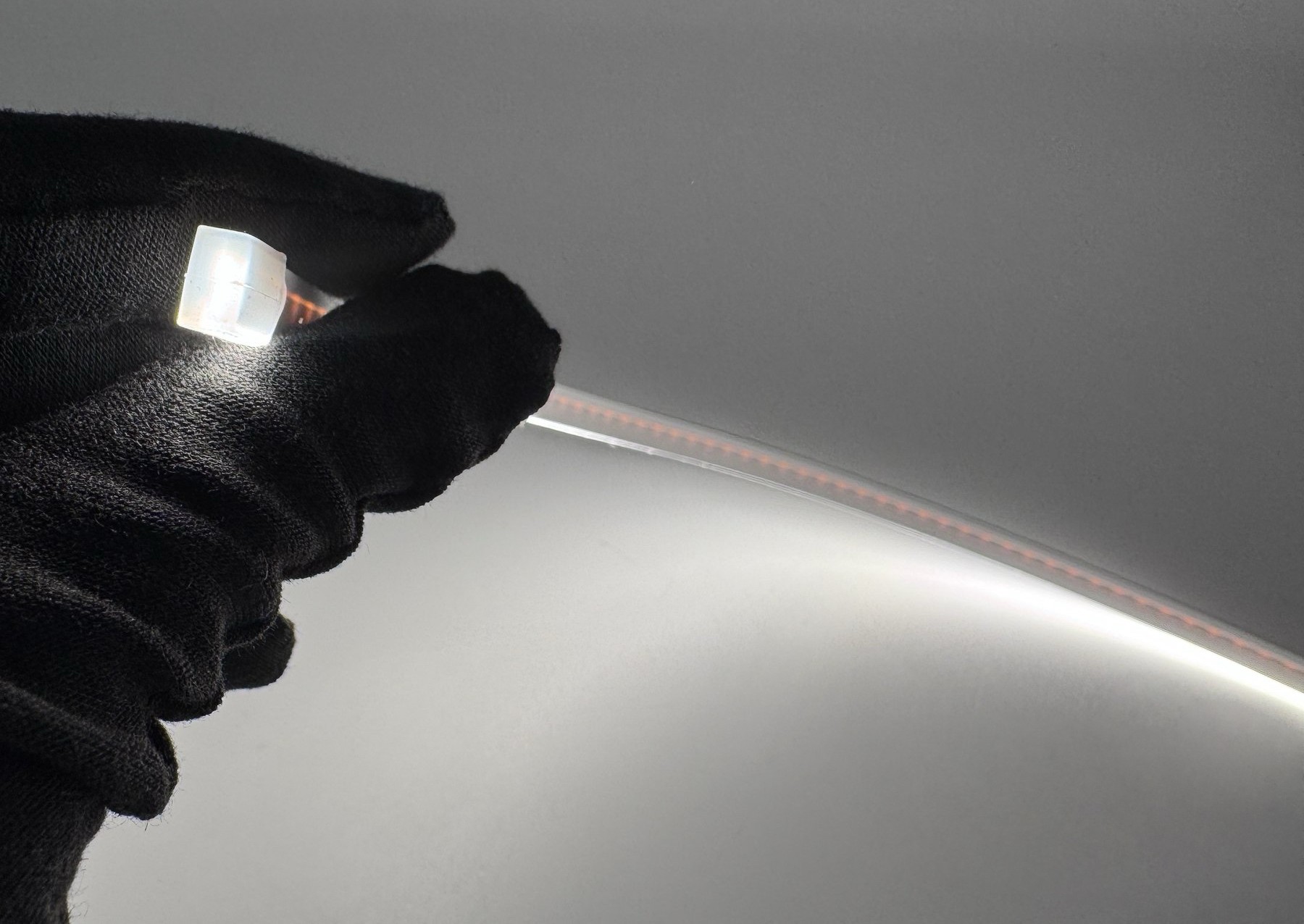

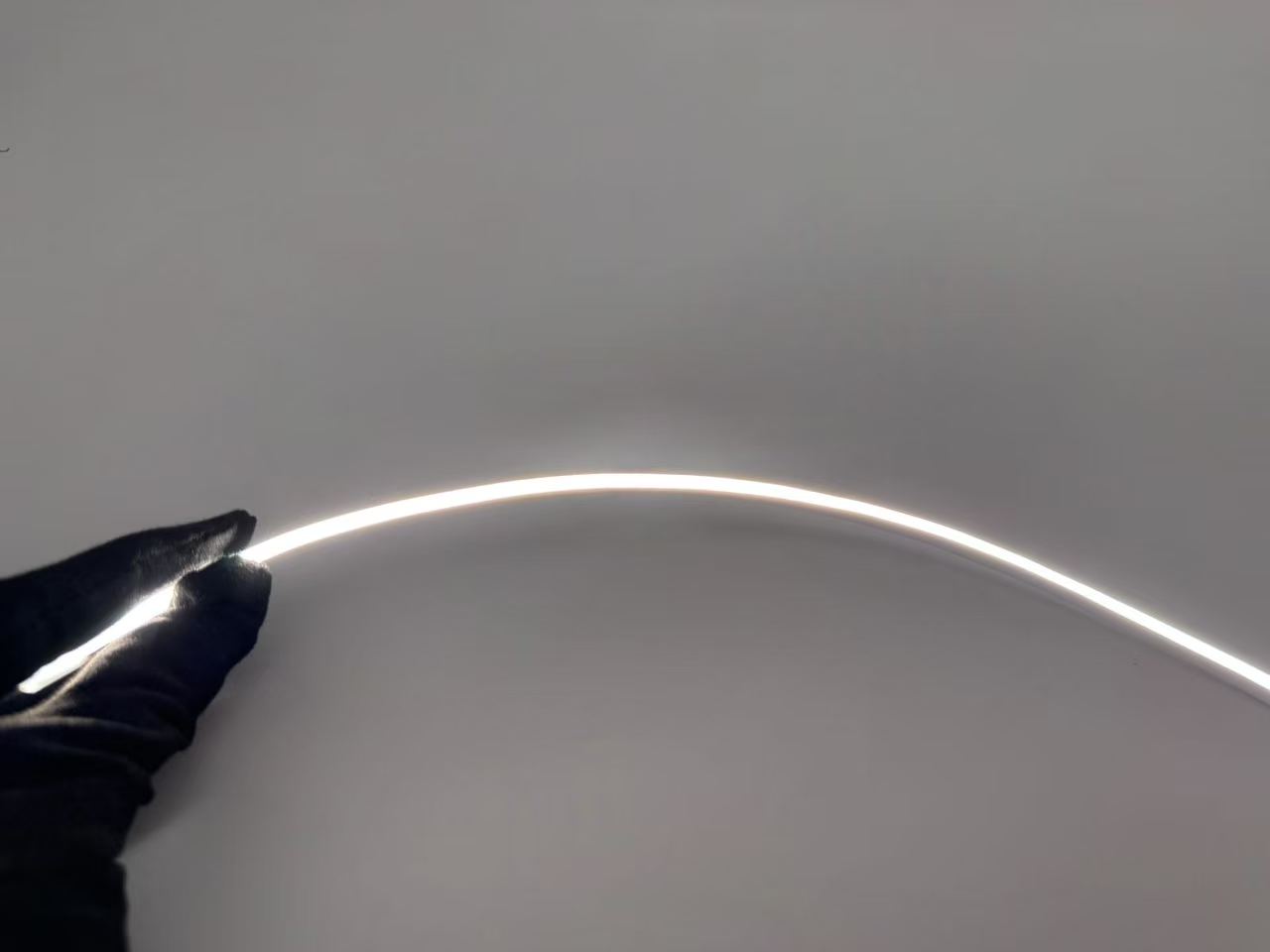

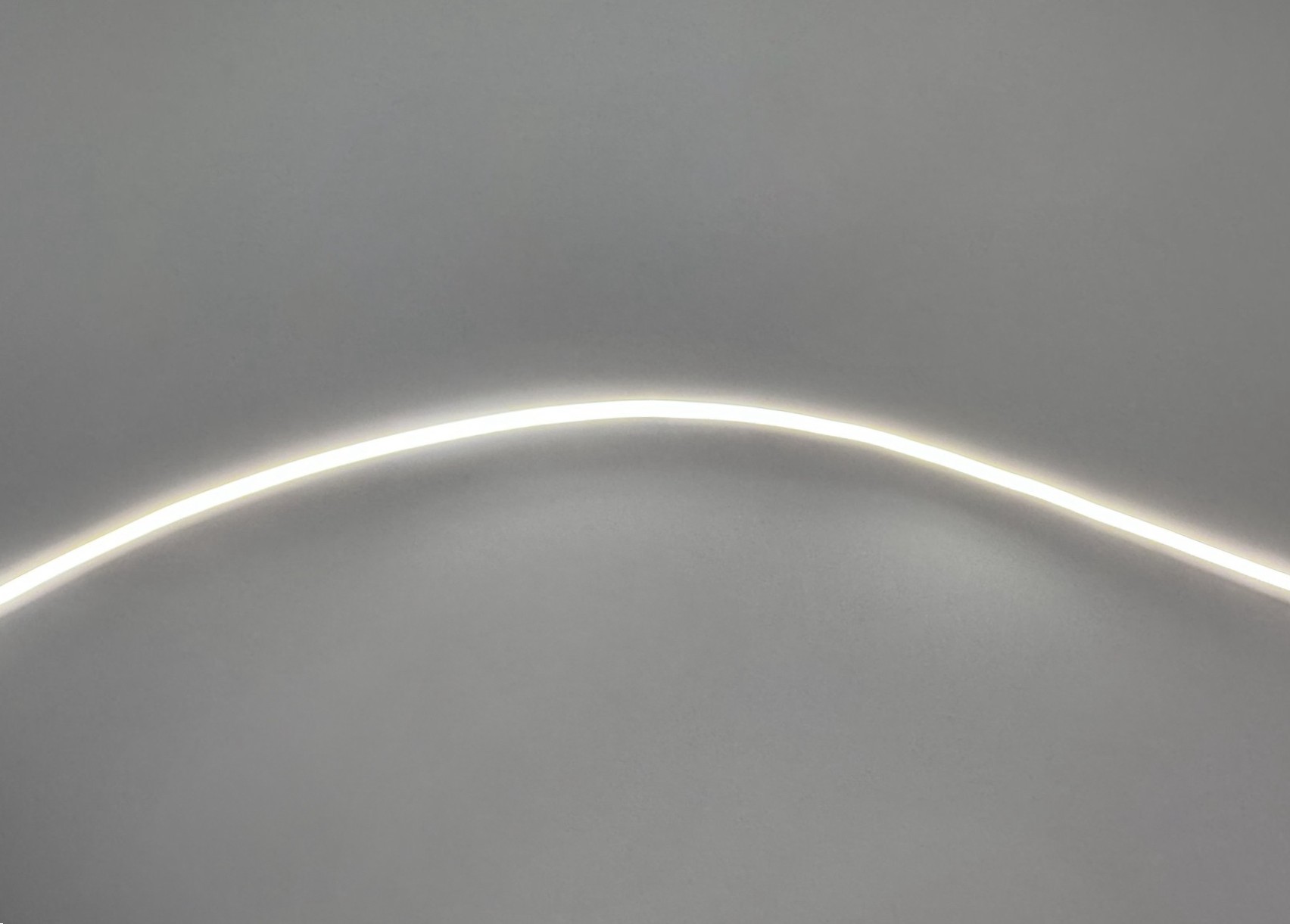

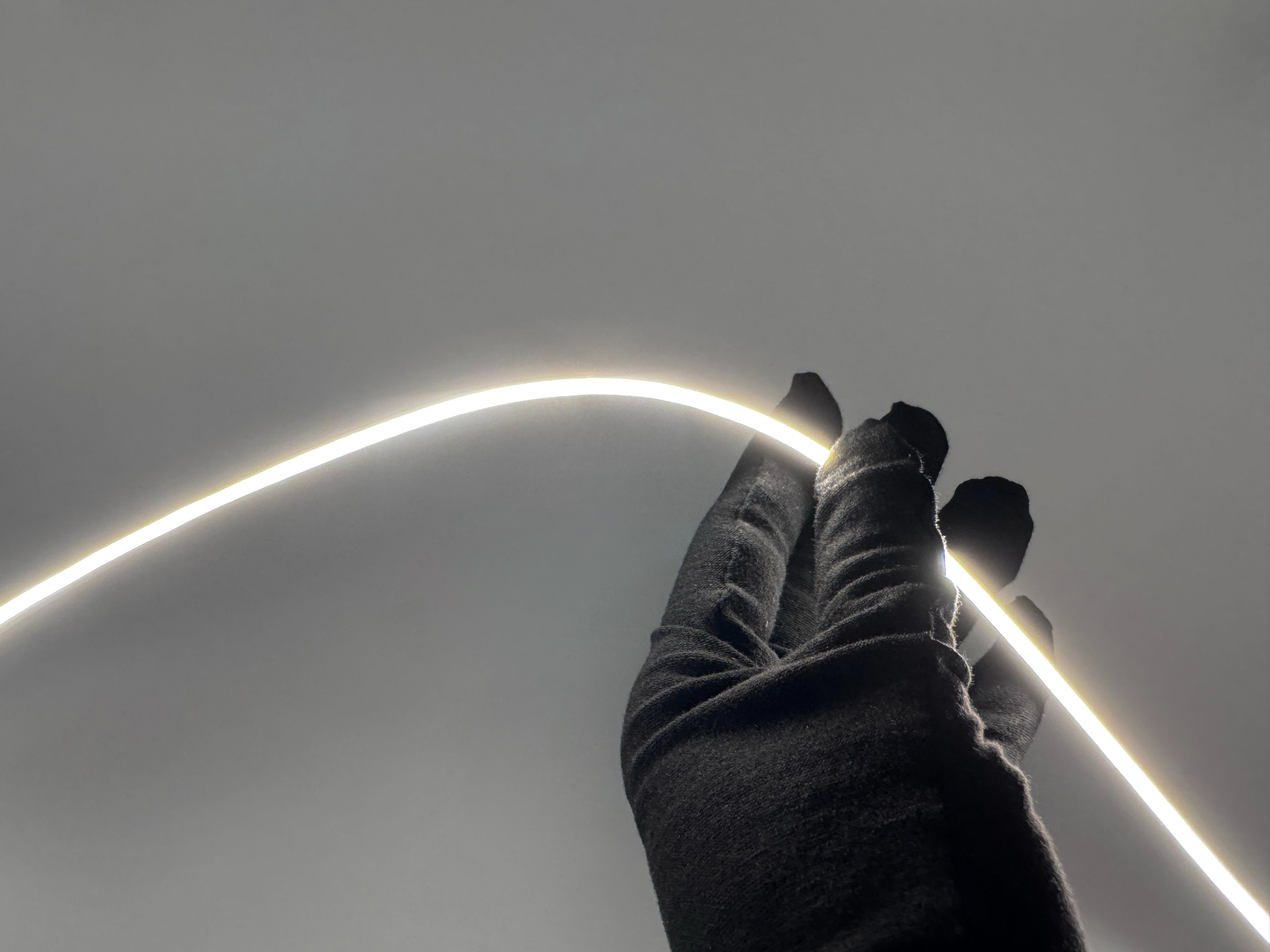

The smallest profile in the KIT Concept Flex range at just H6×W3mm, free-cut to any length up to 5m. 240 LED/m and six CCT options make it ideal for fine architectural detailing, coves and tight-radius accents where the fixture itself must disappear.

IP54 CRI ≥90 DALI · DMX CE · UL
Spec Sheet ↓
Technical Data
Full Specification
Dimension
H6 × W3 mm
Max run 5,000mm
Wattage
9 W/m
@ 4000K
Lumen Output
34 lm/m
@ 4000K
Efficacy
310 lm/W
@ 4000K
Voltage
24V DC
CCT
2700K / 3000K / 3500K / 4000K
5000K / 6000K
CRI
Ra ≥90
3-Step MacAdam Ellipse
Beam Angle
120°
Cover optic
Bend Type
Side-Bend
Single axis
IP Rating
IP54
LED / Chip
240 LED/m
Lifetime
50,000 hours
L70 B10 @ 65°C
Operating Temp
−20 to 45°C
TC max 65°C
Dimming / Control
0-10V · 1-10V · DMX · DALI
Certification
CE, UL
Warranty
3 Years
Mounting
Clips / Tape / Bracket
Aluminum channel
Power Feed
Rear / Bottom
Left & right side
PCB Increment
Free cut
Any length
Weight
0.12 kg/m
Technical Files
Downloads
Spec Sheet
PDF
Photometric Data
IES
View Spec Sheet PDF ↓
