Flex Lighting — RGBW Color-Changing
Ref: Onda-Giulia (NS-205)

Onda-Giulia
Color Flex

18 W/m · Side-Bend · IP67 · IK06 · 24VDC

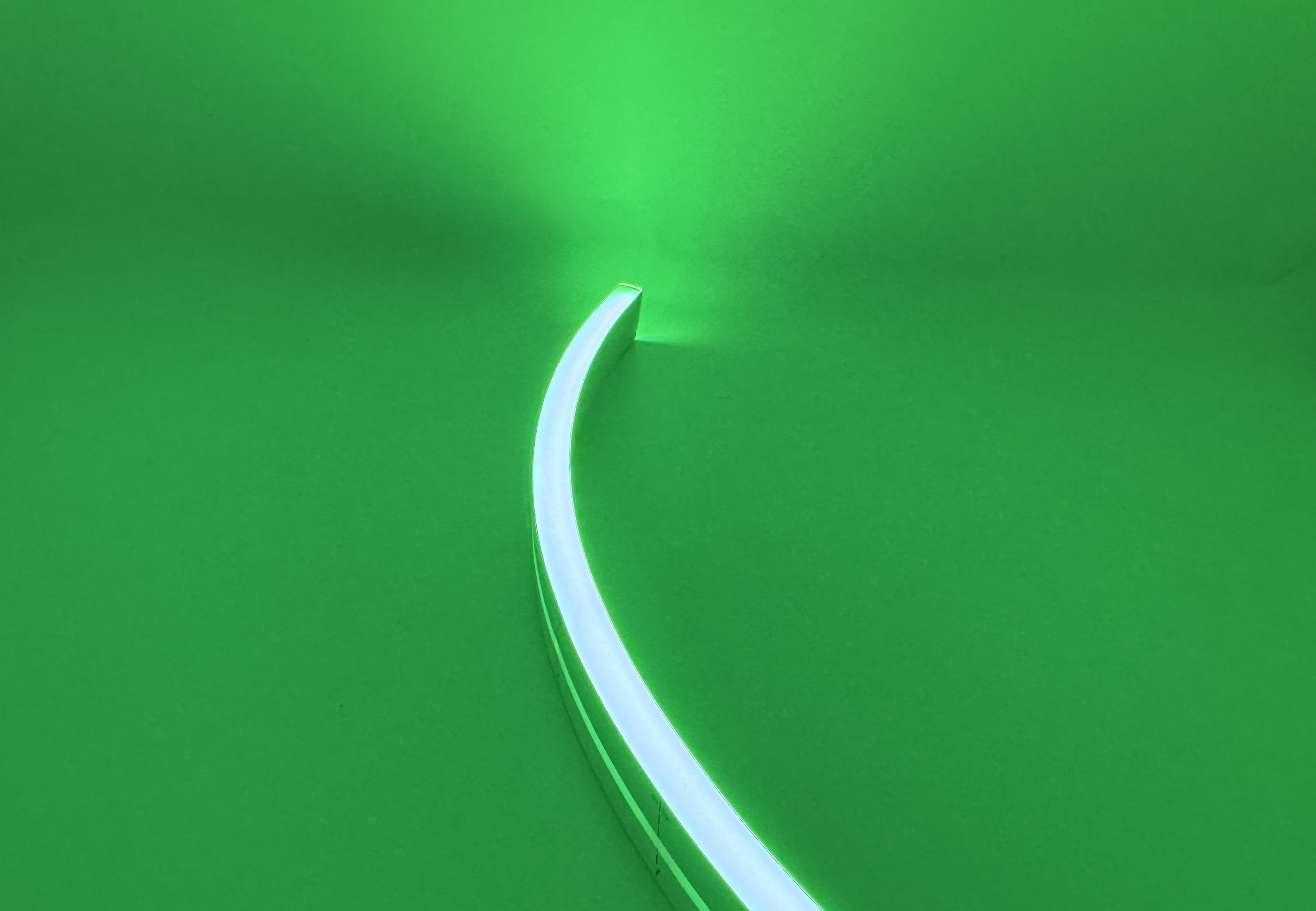

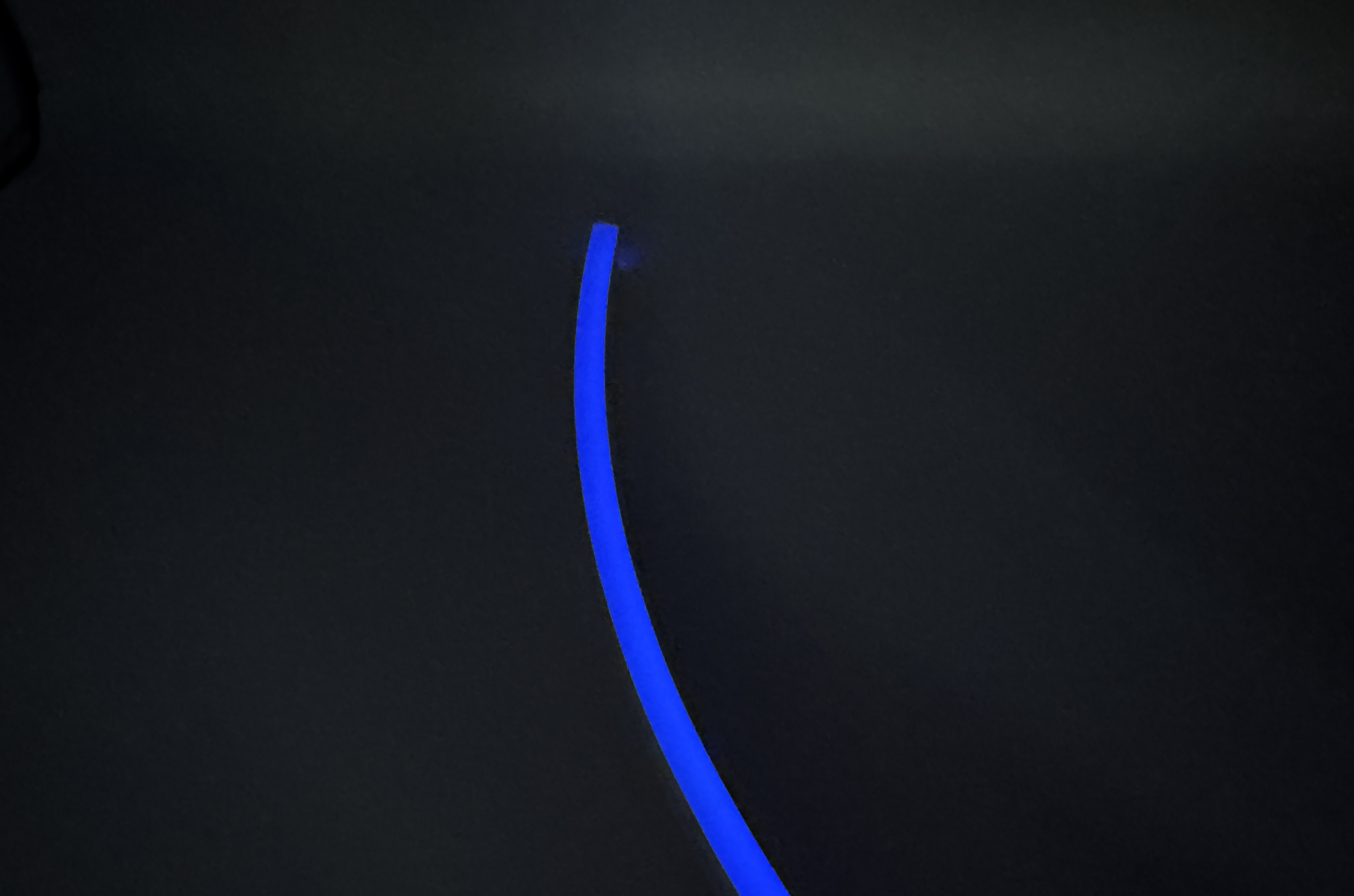

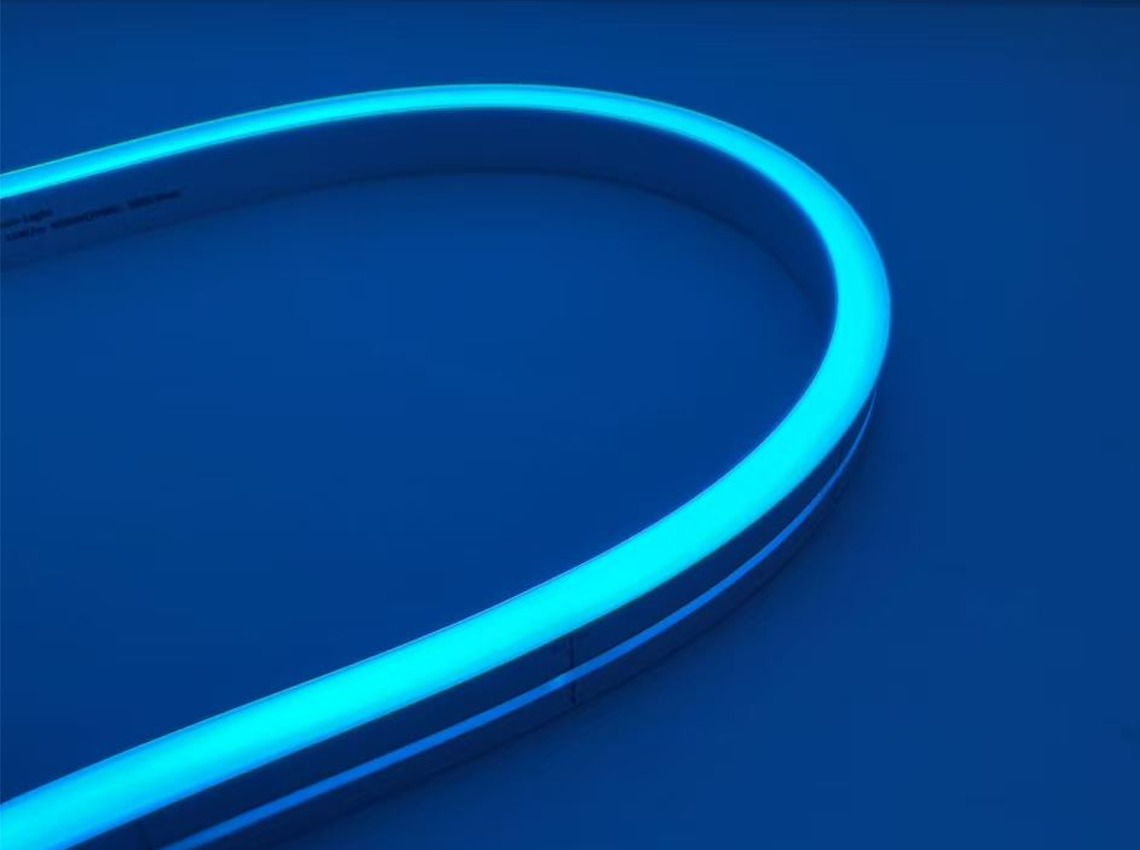

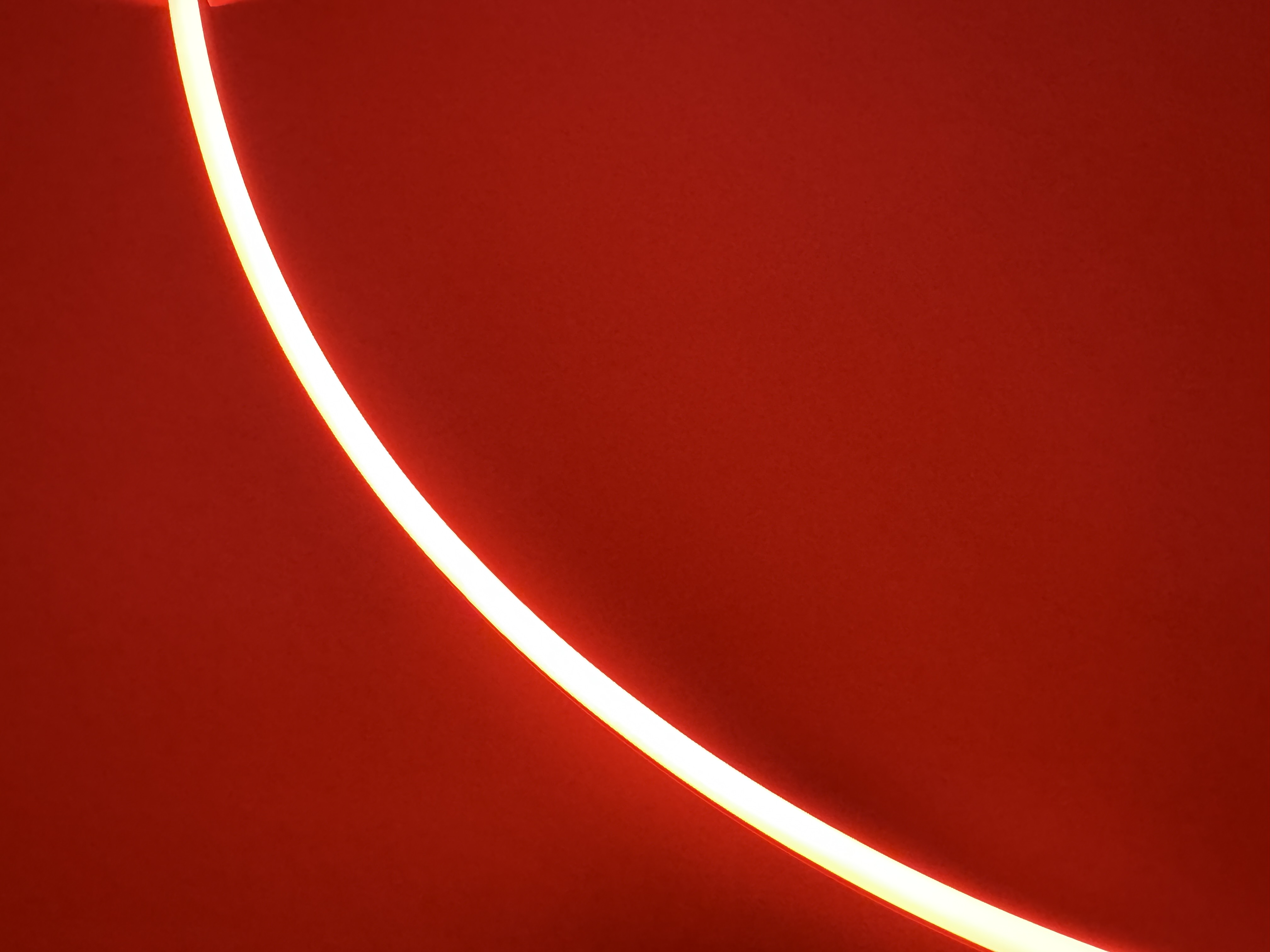

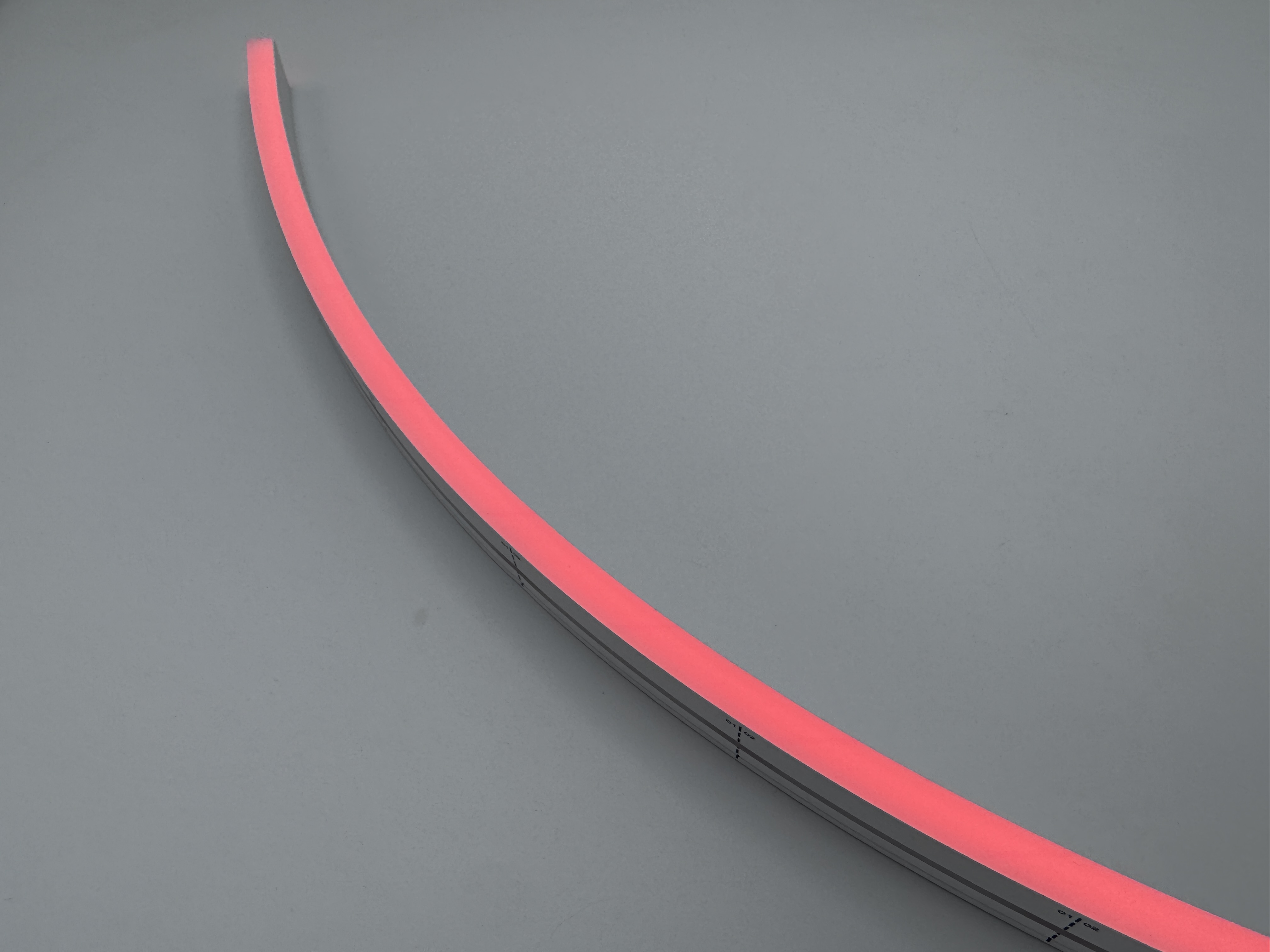

RGBW color-changing side-bend flexible neon at H10×W20mm, free-cut in 62.5mm PCB increments up to 5m runs. 96 LED/m and individually addressable DMX, SPI or PWM control make it ideal for dynamic architectural accents, coves and color-changing installations — indoors or outdoors at IP67/IK06.

IP67 IK06 CRI 90 DMX · SPI · PWM CE · UL
Spec Sheet ↓
Technical Data
Full Specification
Dimension
H10 × W20 mm
Max run 5,000mm
Wattage
18 W/m
@ 4000K
Lumen Output
220 lm/m
@ 4000K
Voltage
24V DC
Color Channels
R 620-630nm · G 515-530nm
B 460-470nm · W 2700-6500K
CRI
Ra 90
Cover / Optic
120°
Bend Type
Side-Bend
Single axis
IP Rating
IP67
IK Rating
IK06
LED / Chip
96 LED/m
SMD5050
Lifetime
50,000 hours
Operating Temp
−20 to 45°C
TC max 65°C
Control
ON/OFF · 0-10V · 1-10V
DMX · SPI · PWM
Certification
CE, UL
Warranty
3 Years
Mounting
Clip / Aluminum channel
Bendable bracket
Power Feed
Tail / Side / Bottom
PCB Increment
62.5mm
Fixed cut points
Weight
1.47 kg
@ 5,000mm max run
Technical Files
Downloads
Spec Sheet
PDF
Photometric Data
IES
View Spec Sheet PDF ↓
