Linear Lighting — Indoor / Outdoor

Ref: NEX-CN007

Nex-CN007

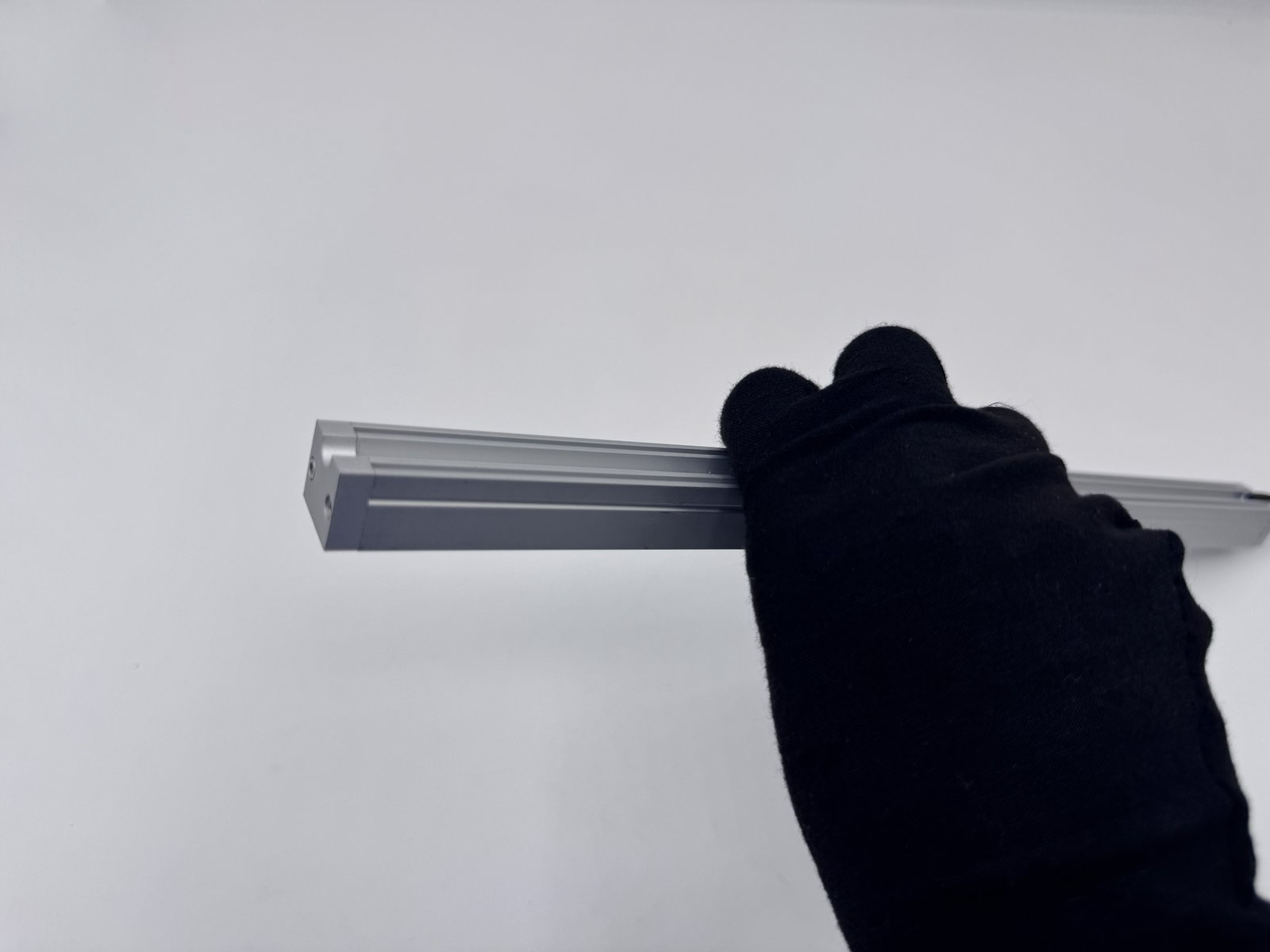

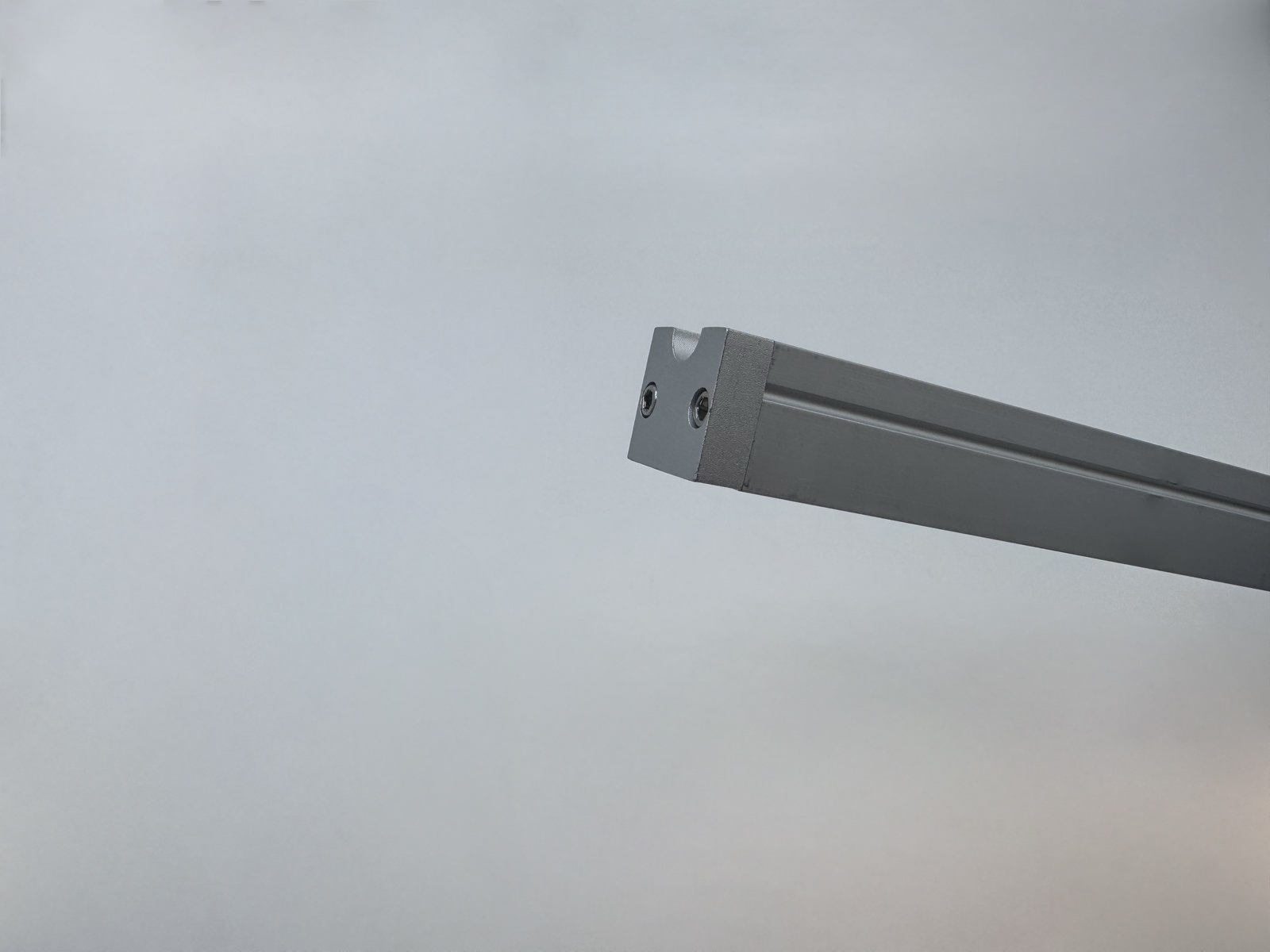

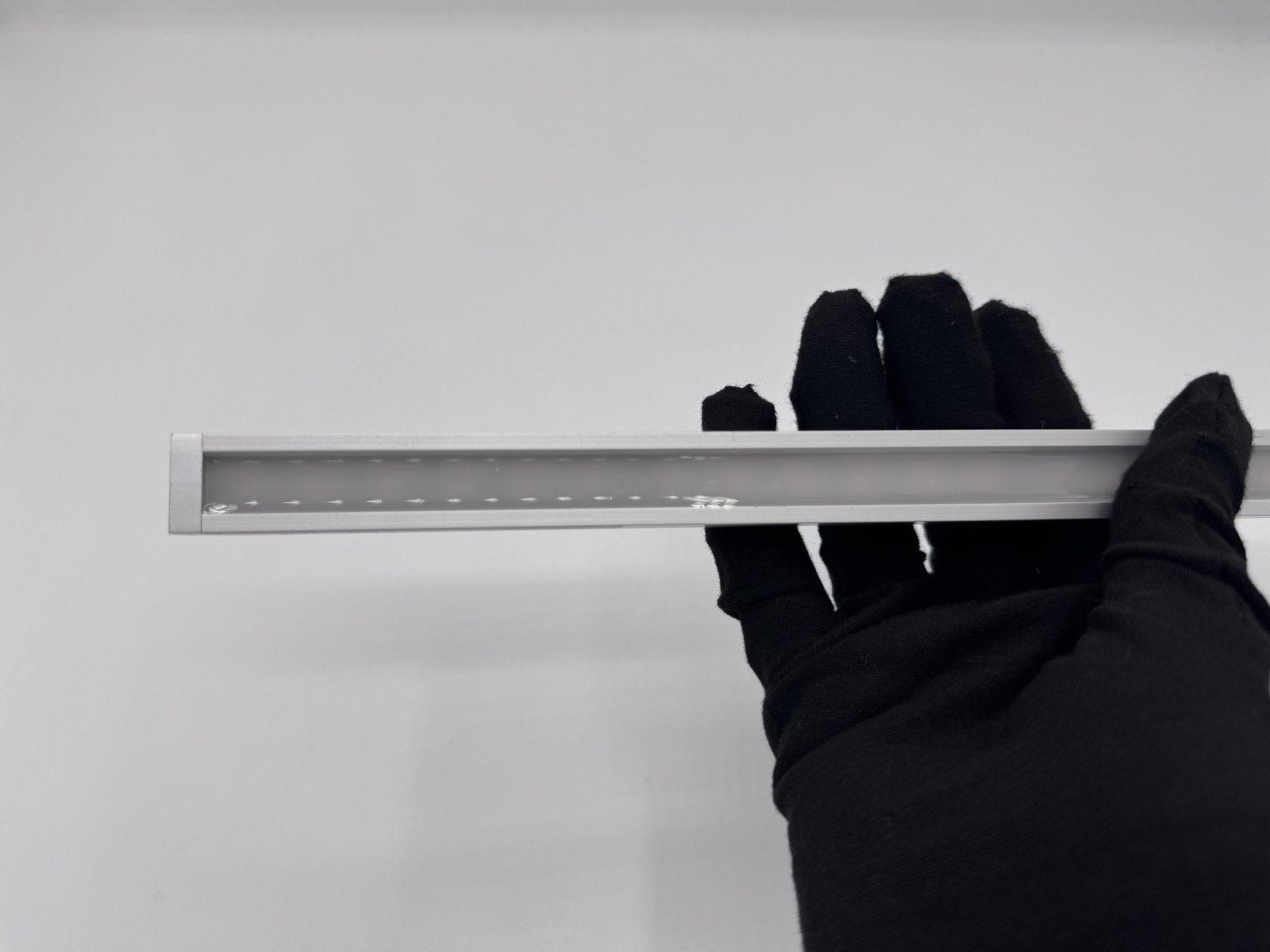

Linear Profile

H15mm × W17mm · Surface Mount · IP66

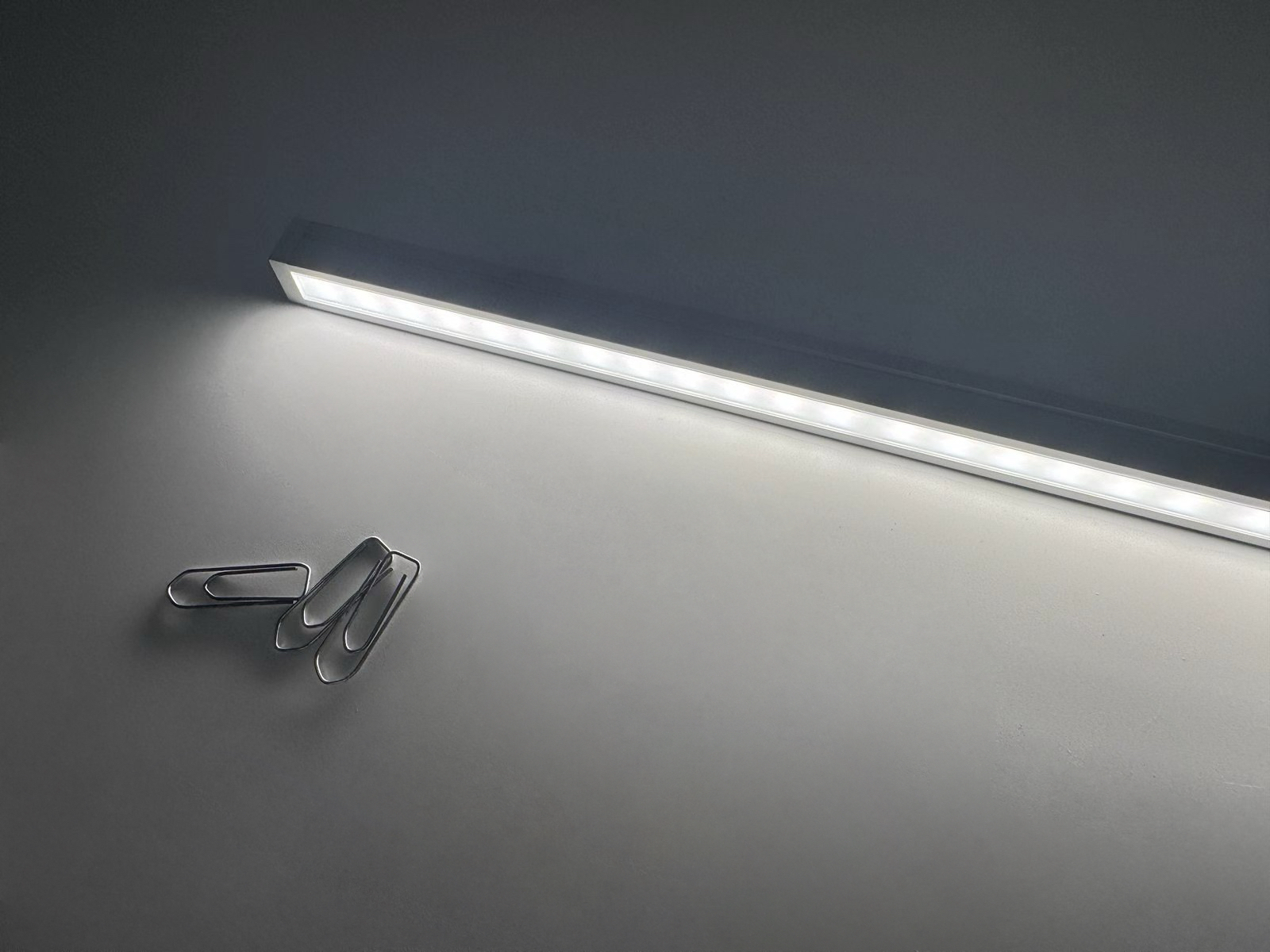

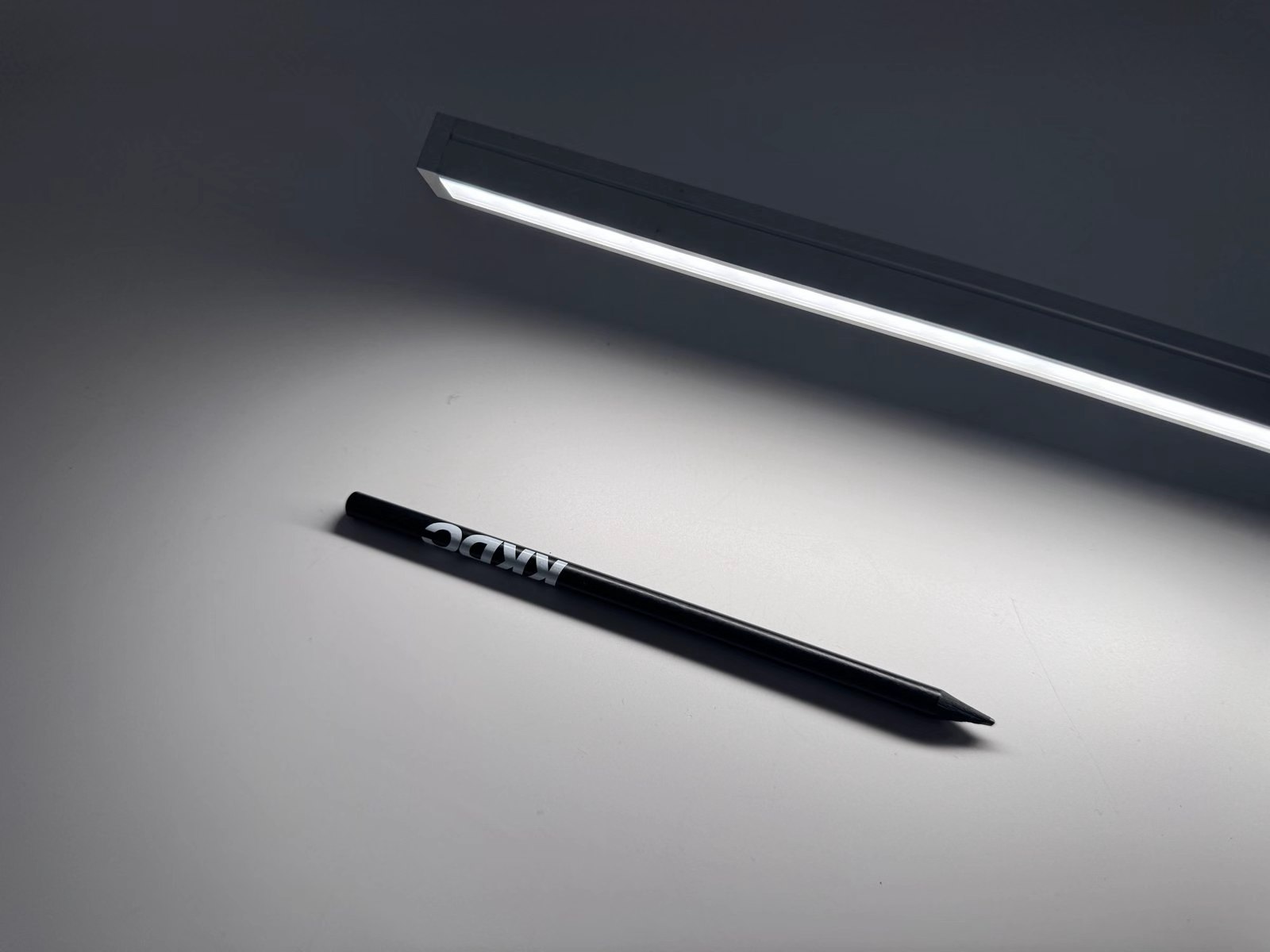

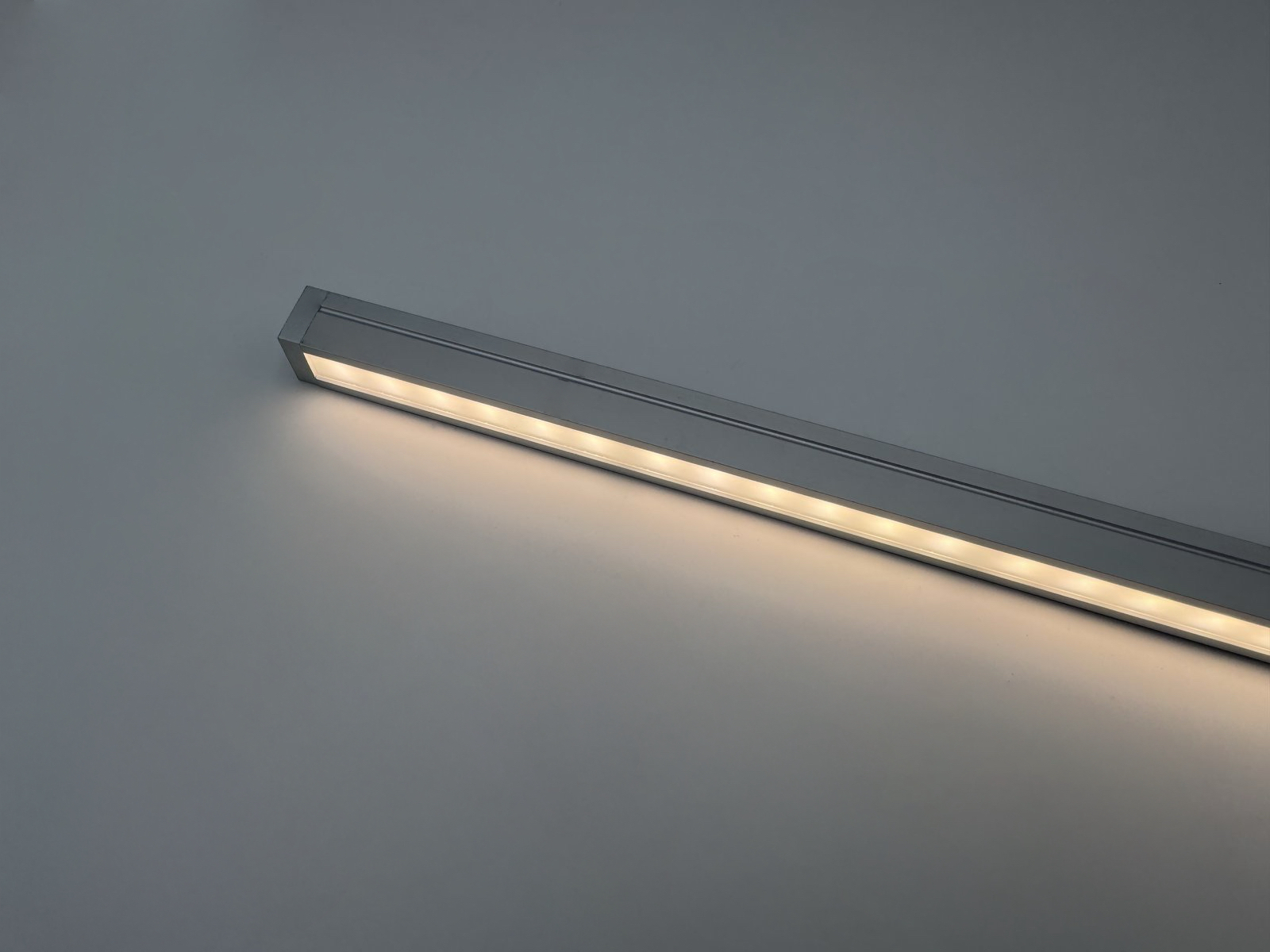

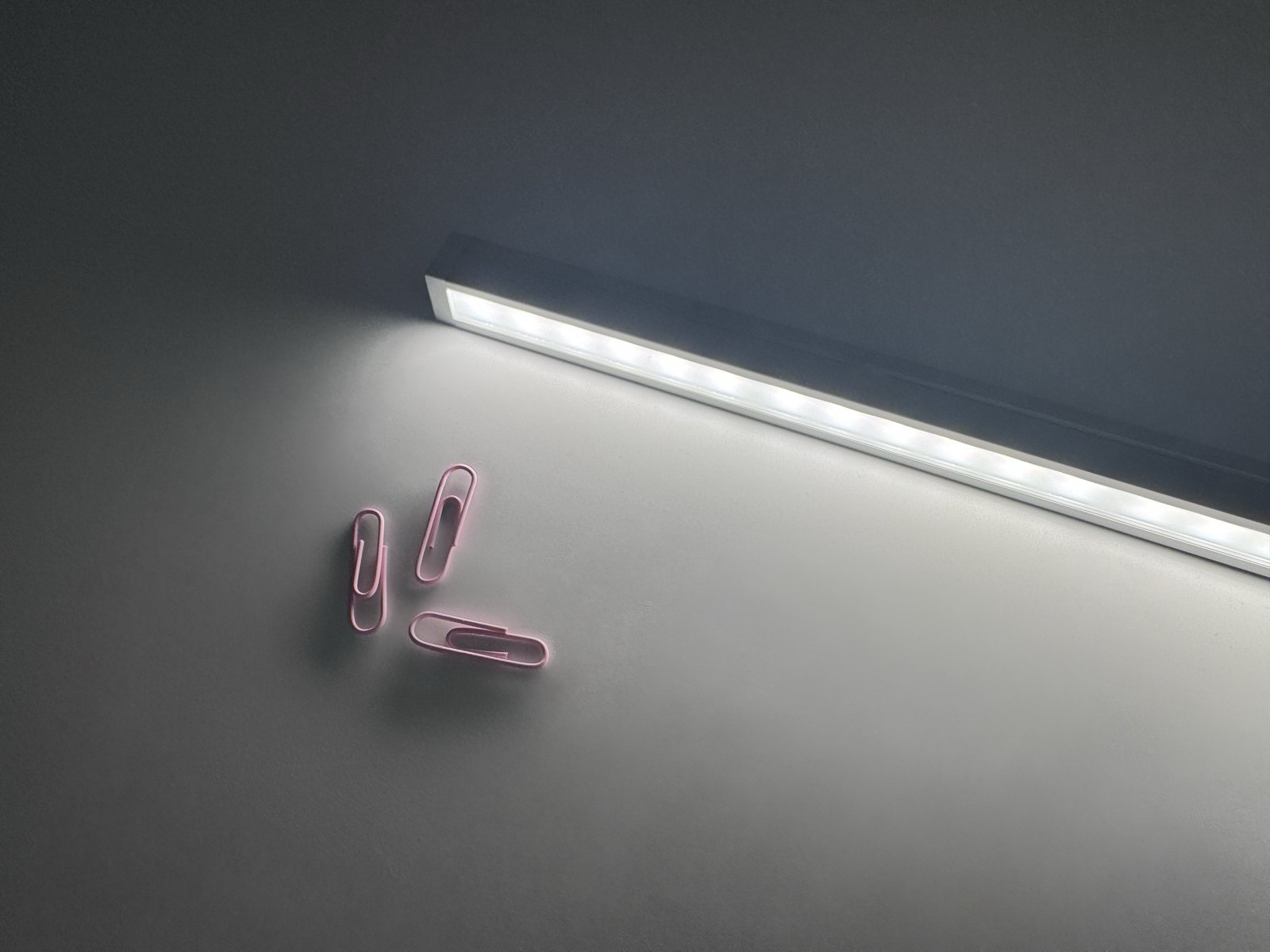

The only IP66-rated linear in the CN range — designed for outdoor and wet-area applications. Nichia chip, 2-step MacAdam precision. 18 W/m with diffused optic (1000 lm/m) or clear optic (1800 lm/m). Fixing clip or magnet. Custom lengths to 2022mm.

IP66CRI ≥9024V DCDALI50,000hCE · KC2-Step MacAdamNichia Chip

Download Spec Sheet ↓

Technical Data

Full Specification

Dimension

H15mm × W17mm × L Variable

min 84mm · max 2022mm

PCB Increment

71.5mm

LED/m

Chip

Nichia or equivalent

Beam Angle

100°

Diffused or Clear optic

CCT

3000K · 3500K · 4000K

Bin / Step

2-Step MacAdam Ellipse

CRI

≥ 90

Ra 93.3 @ 3459K

Lifetime

50,000 hours @ 25°C

Operating Temp.

−10°C to +40°C

Tc max = 65°C

IP Rating

IP66

Outdoor / wet area rated

Finish

Silver / Black / Custom

Optic

Diffused / Clear

Mounting

Fixing Clip / Magnet

Power Feed

Hardwire tail or M/F connectors

Wire Section

22AWG — 0.36 mm²

Outside section 3.8mm

Wire Length

300mm

Custom on request

Control

0-10V / 1-10V / DALI

Supply Voltage

24V DC

Certification

CE, KC

Power & Lumen Output

Product Models @ 3000K

Model	Wattage	Efficacy	Luminous Flux
NEX-CN007 Diffused	18 W/m	55.6 lm/W	1000 lm/m
NEX-CN007 Clear	18 W/m	100 lm/W	1800 lm/m
