Linear Lighting — Indoor Surface

Ref: NEX-CN005

Nex-CN005

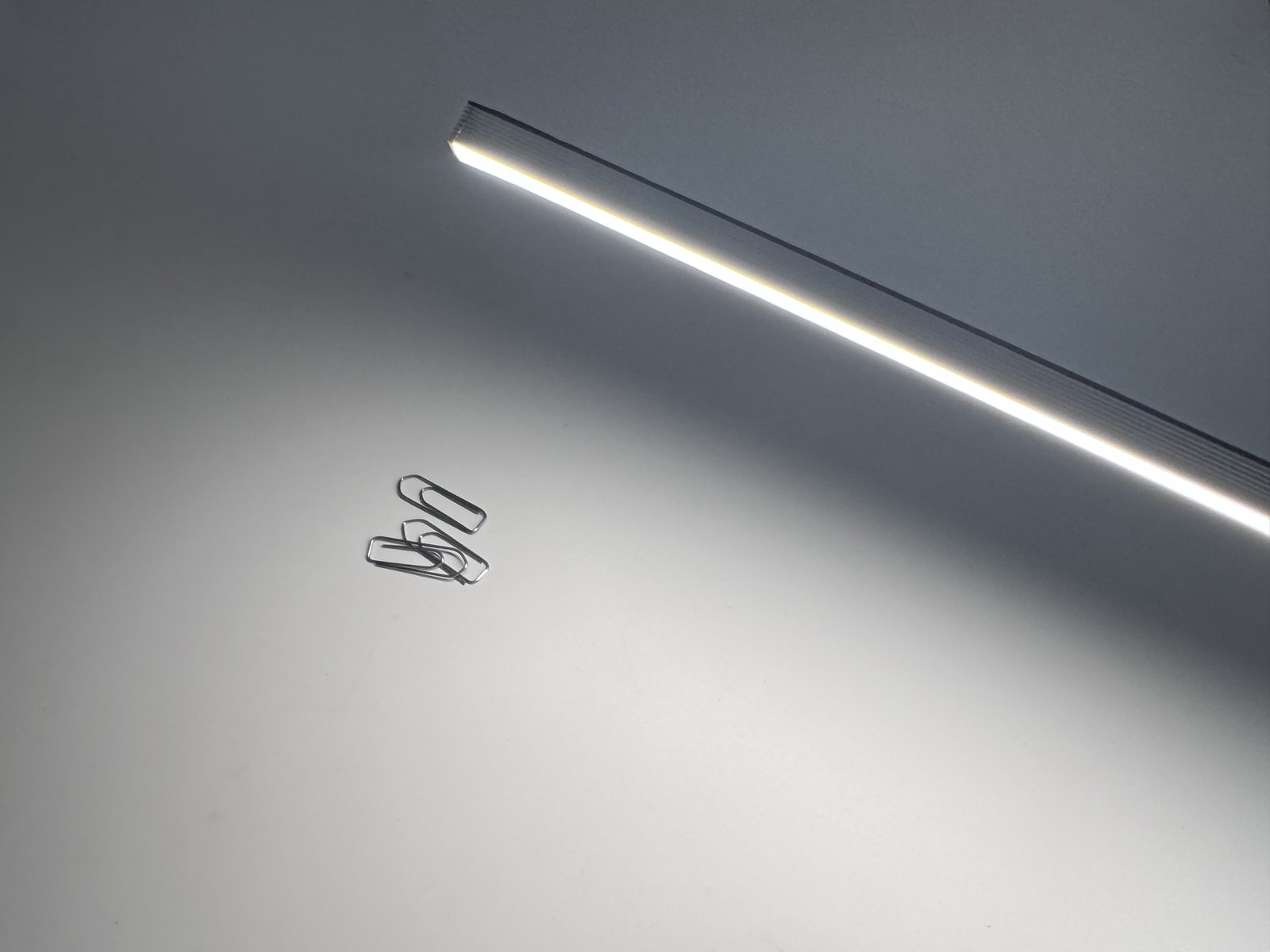

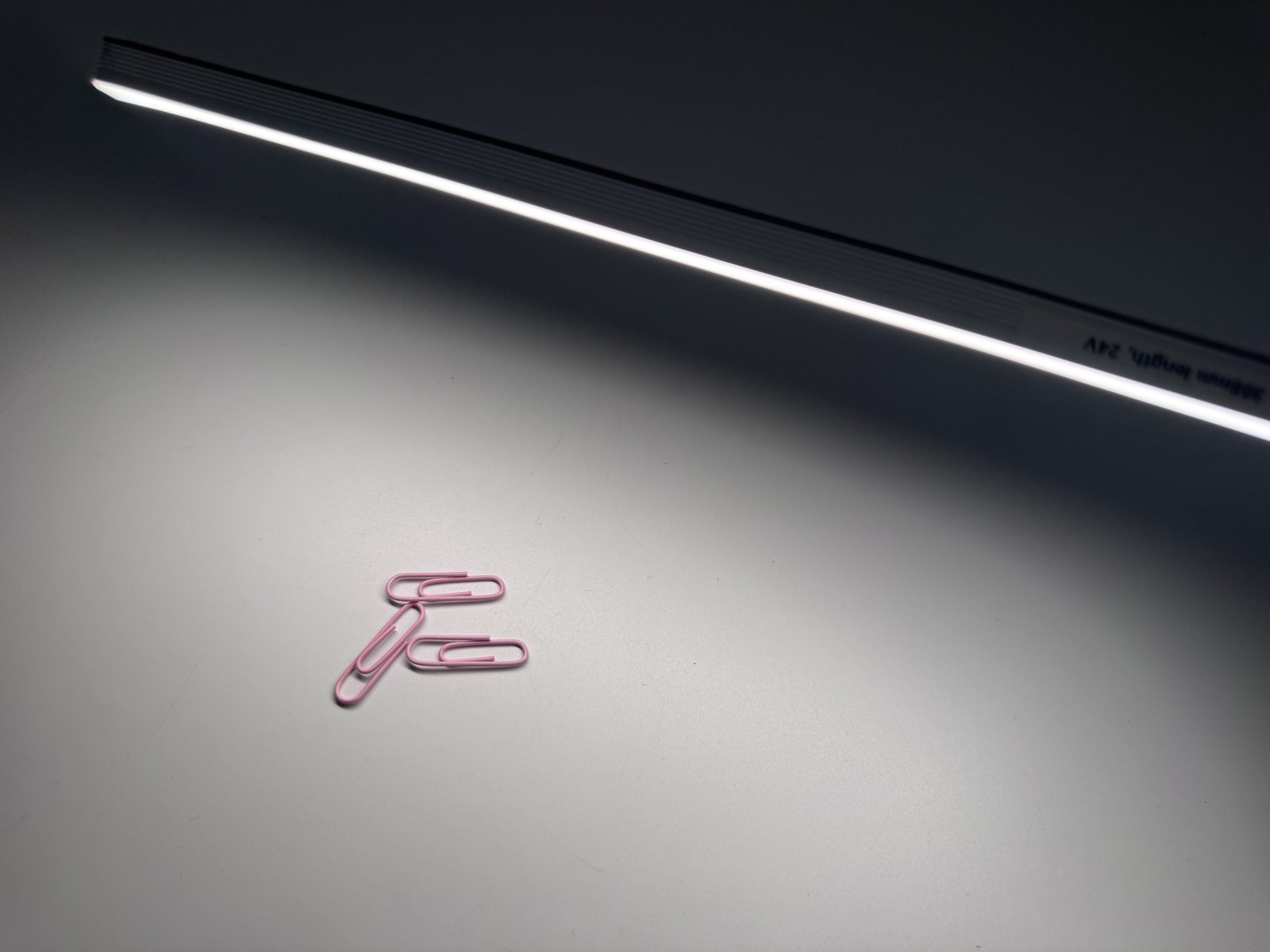

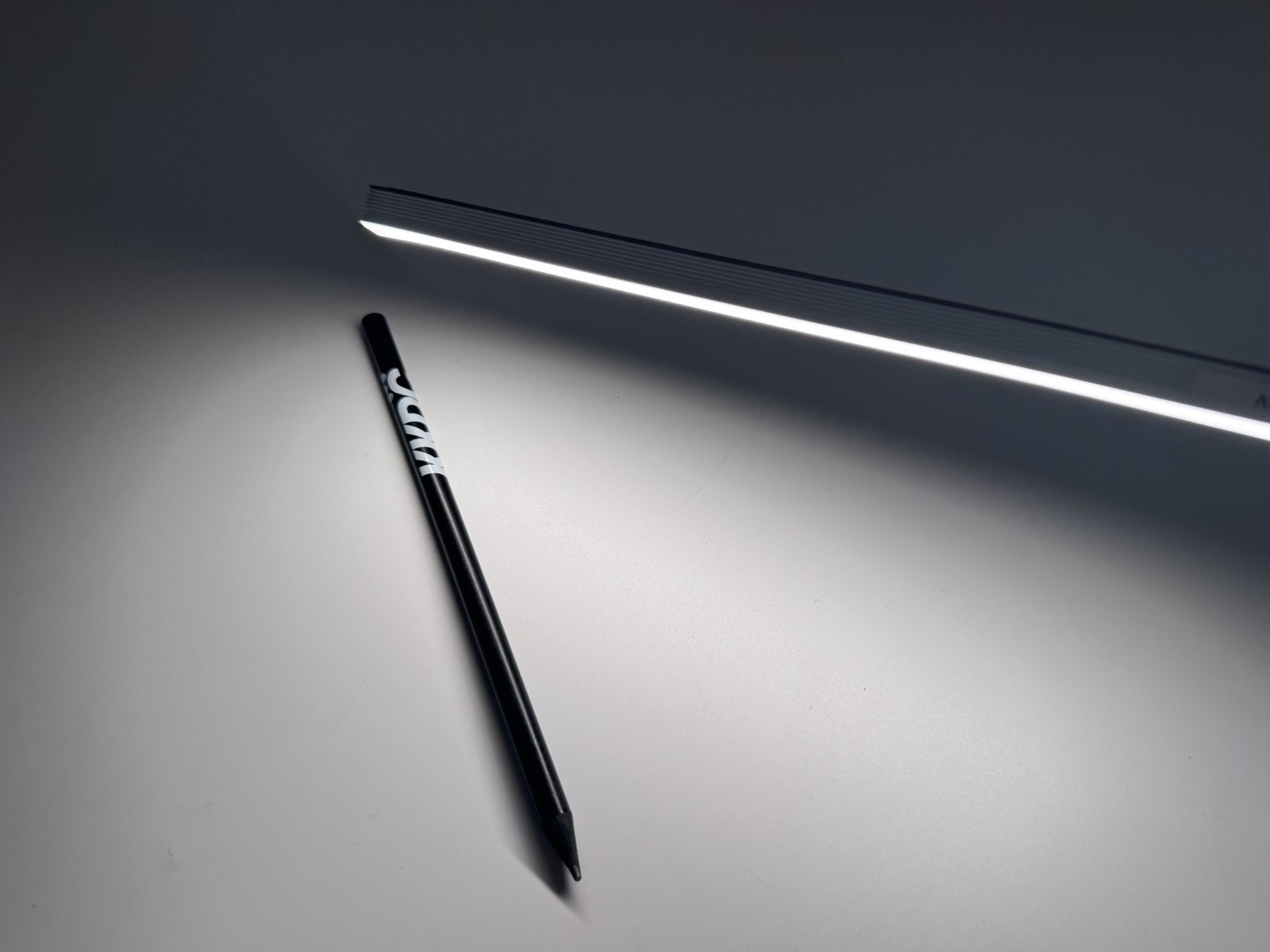

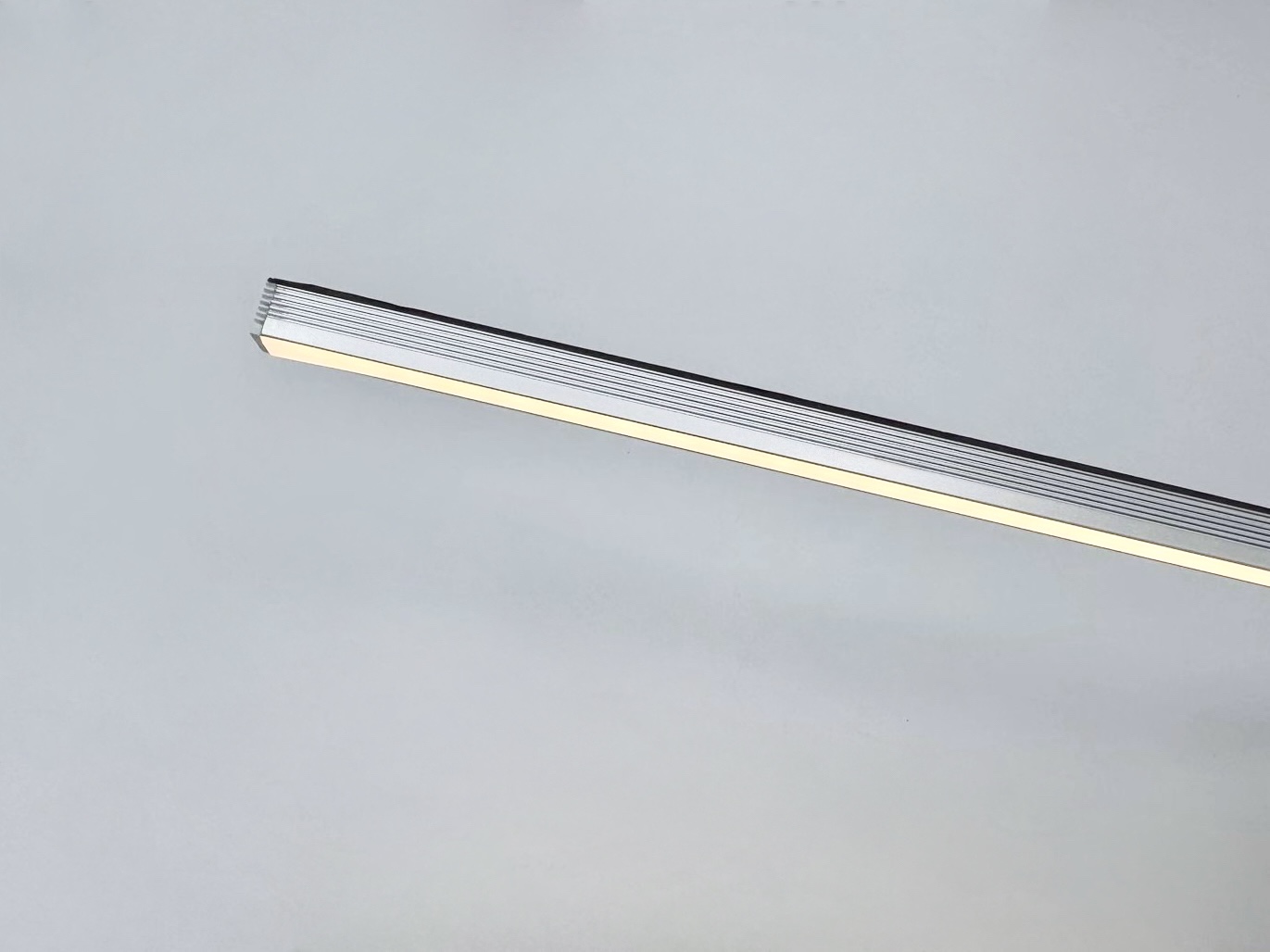

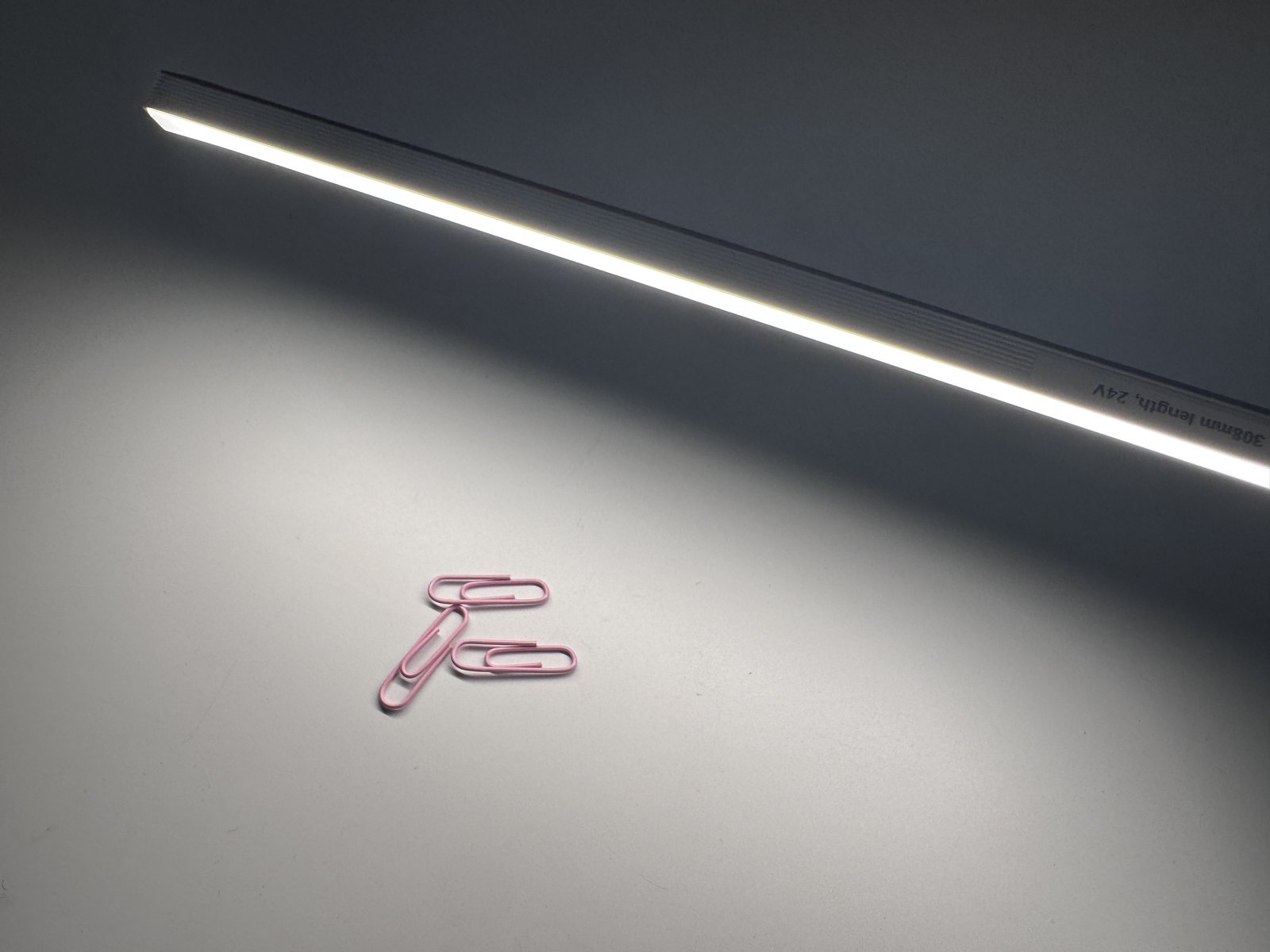

Linear Profile

H9mm × W8mm · Surface Mount · IP40

Ultra-slim H9×W8mm linear with tape, clip, or magnet fixing — ideal for coves and recessed channels. Two power options: 10 W/m (720 lm/m) and 14 W/m (1008 lm/m). Osram chip, 3-step MacAdam, 100° diffused optic, custom lengths to 1808mm.

CRI ≥90IP4024V DCDALI / DMX50,000hCE · KC · BIS3-Step MacAdam

Download Spec Sheet ↓

Technical Data

Full Specification

Dimension

H9mm × W8mm × L Variable

min 108mm · max 1808mm

PCB Increment

50mm

LED/m

120

Chip

Osram or equivalent

Beam Angle

100°

Diffused optic

CCT

3000K · 3500K · 4000K

Bin / Step

3-Step MacAdam Ellipse

CRI

≥ 90

CRI 92 @ 3043K

Lifetime

50,000 hours @ 25°C

Operating Temp.

−25°C to +45°C

Tc max = 70°C

IP Rating

IP40

Finish

Silver / Black / Custom

Mounting

Double Side Tape / Fixing Clip / Magnet

3 magnets per metre

Power Feed

Hardwire tail or M/F connectors

Wire Section

20AWG — 0.5 mm²

Wire Length

300mm

Custom on request

Control

0-10V / 1-10V / DMX / DALI

Supply Voltage

24V DC

Certification

CE, KC, BIS

Power & Lumen Output

Product Models @ 3000K

Model	Wattage	Efficacy	Luminous Flux
NEX-CN005-10	10 W/m	72 lm/W	720 lm/m
NEX-CN005-14	14 W/m	72 lm/W	1008 lm/m

Technical Files

Downloads

View Datasheet
