Linear Lighting — Indoor Surface

Ref: NEX-CN002

Nex-CN002

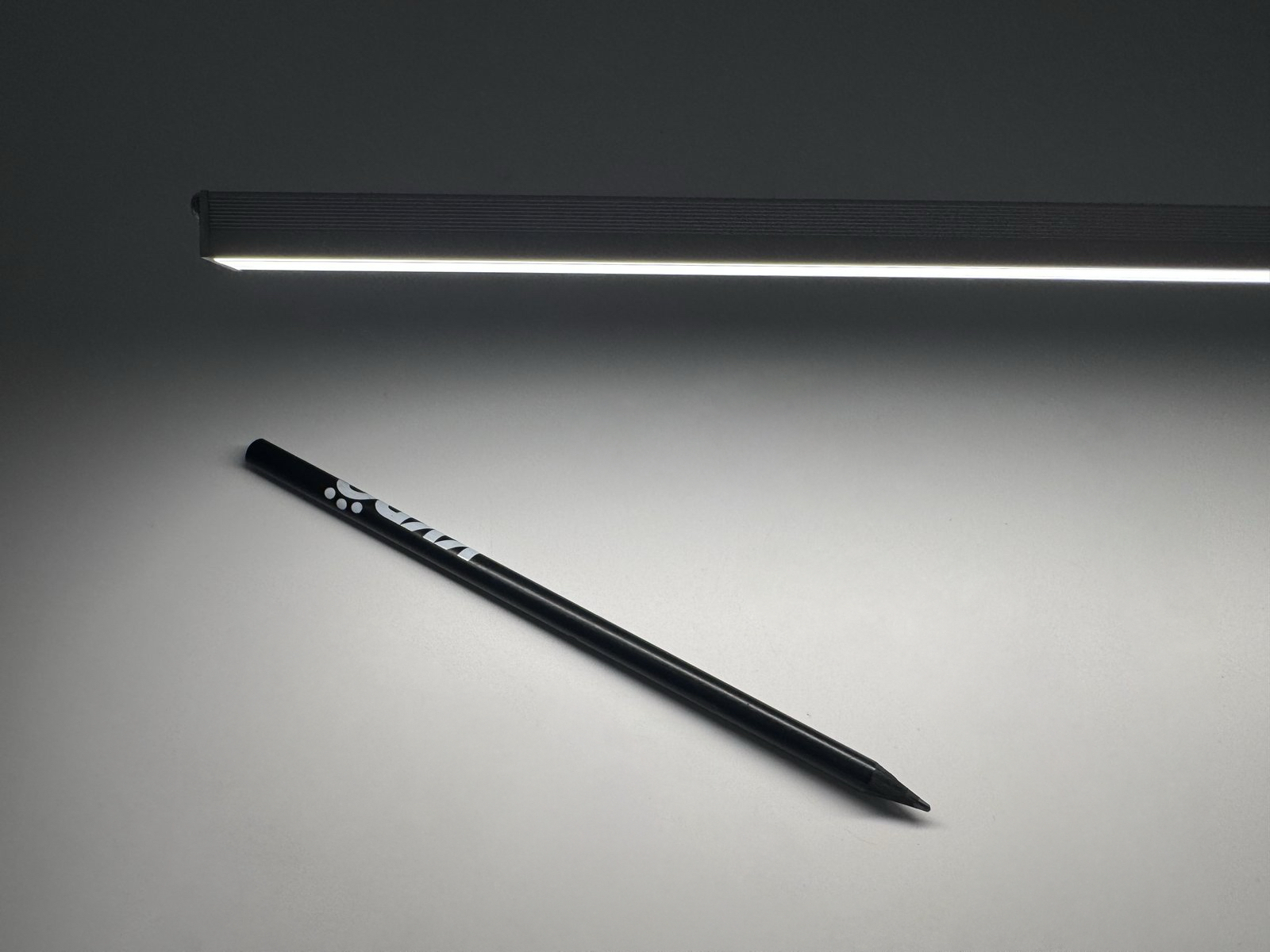

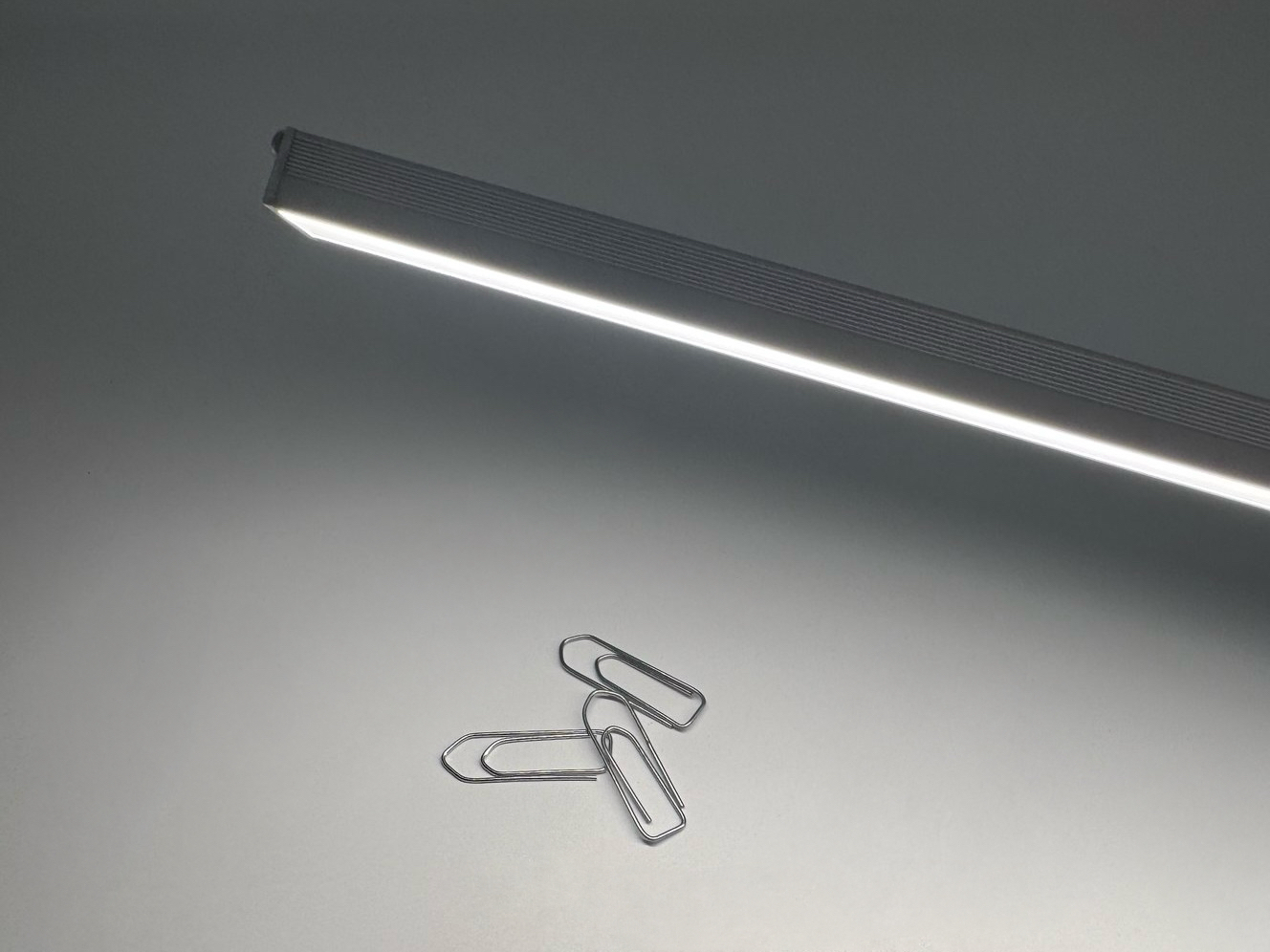

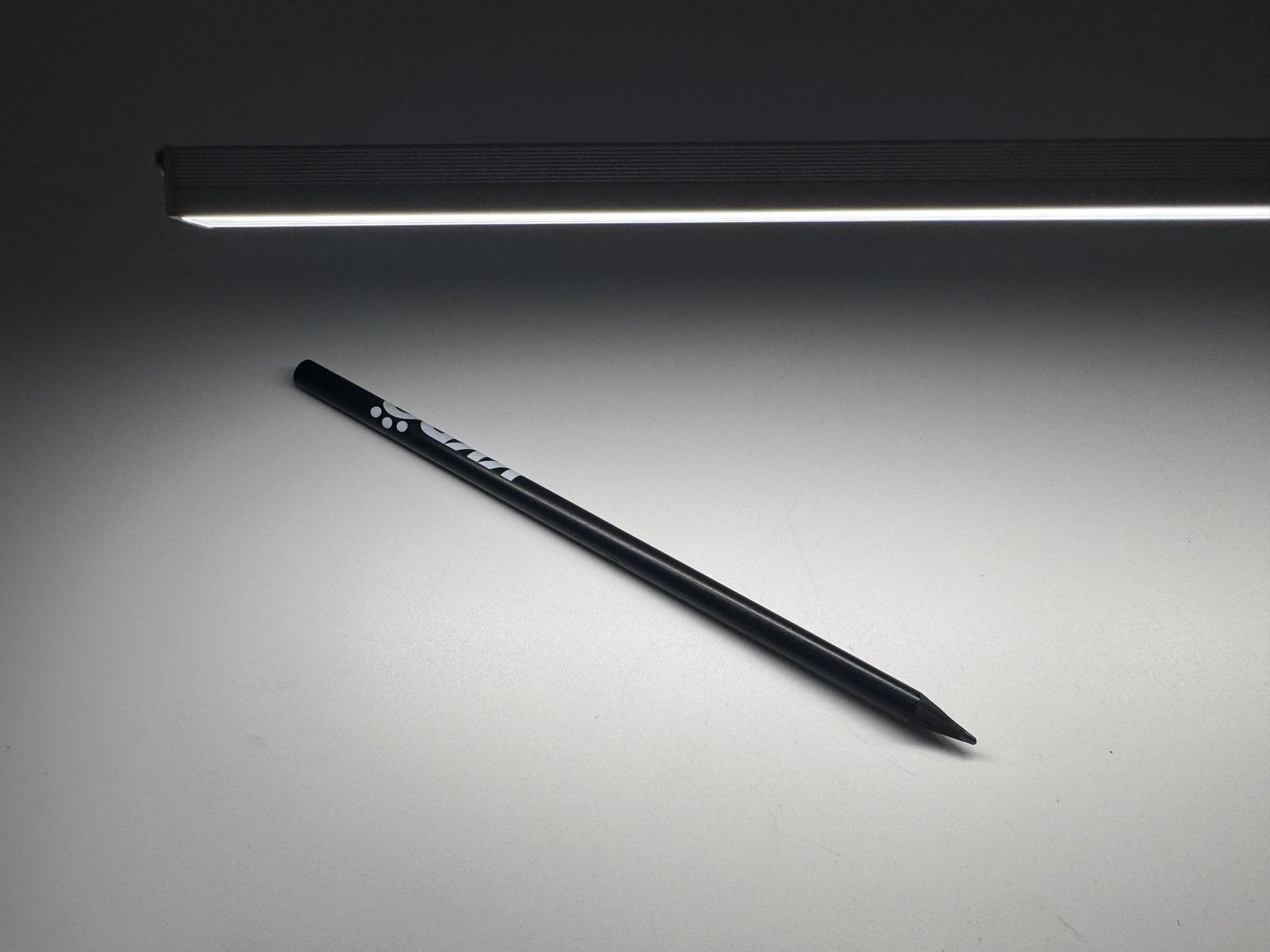

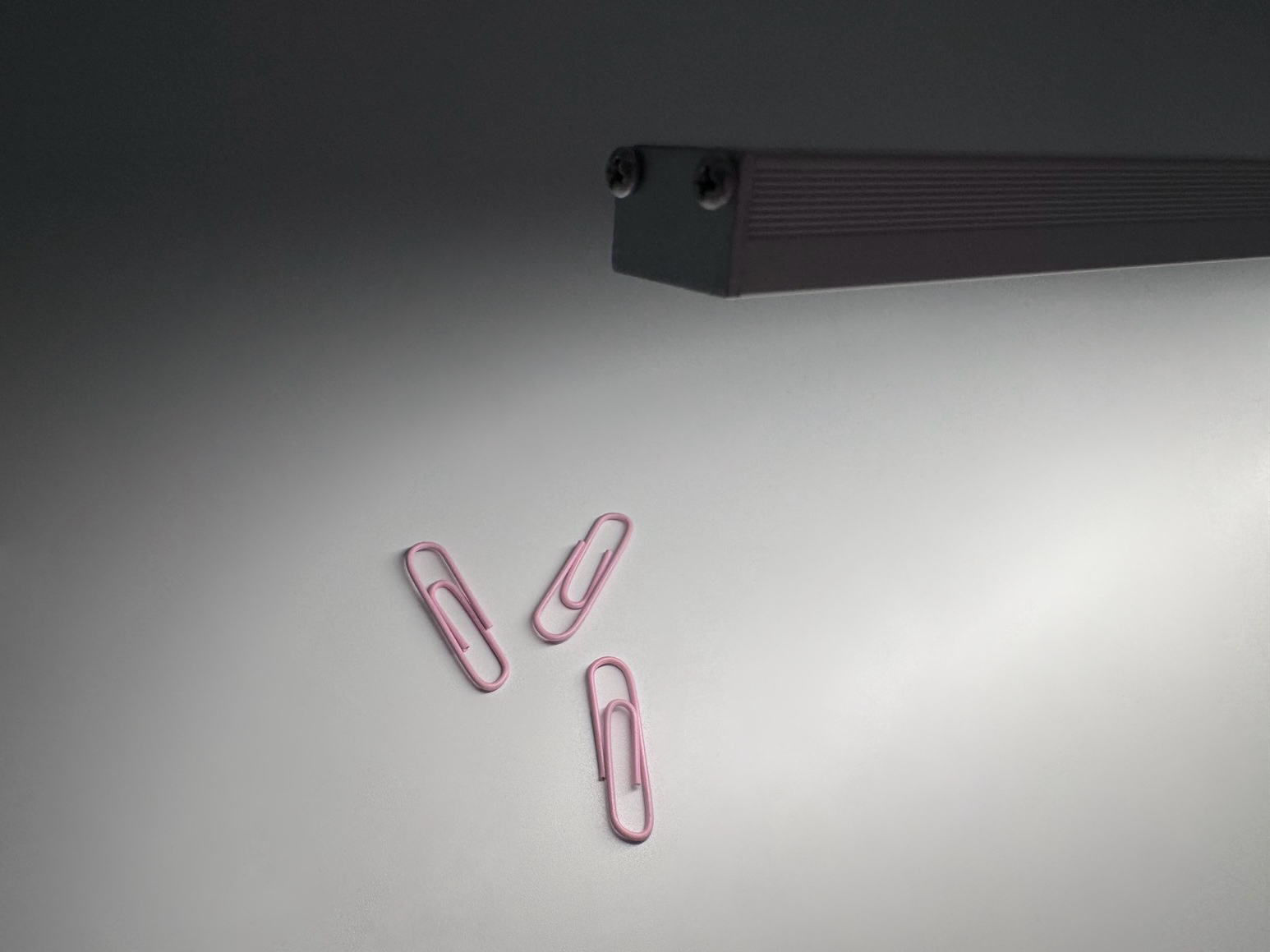

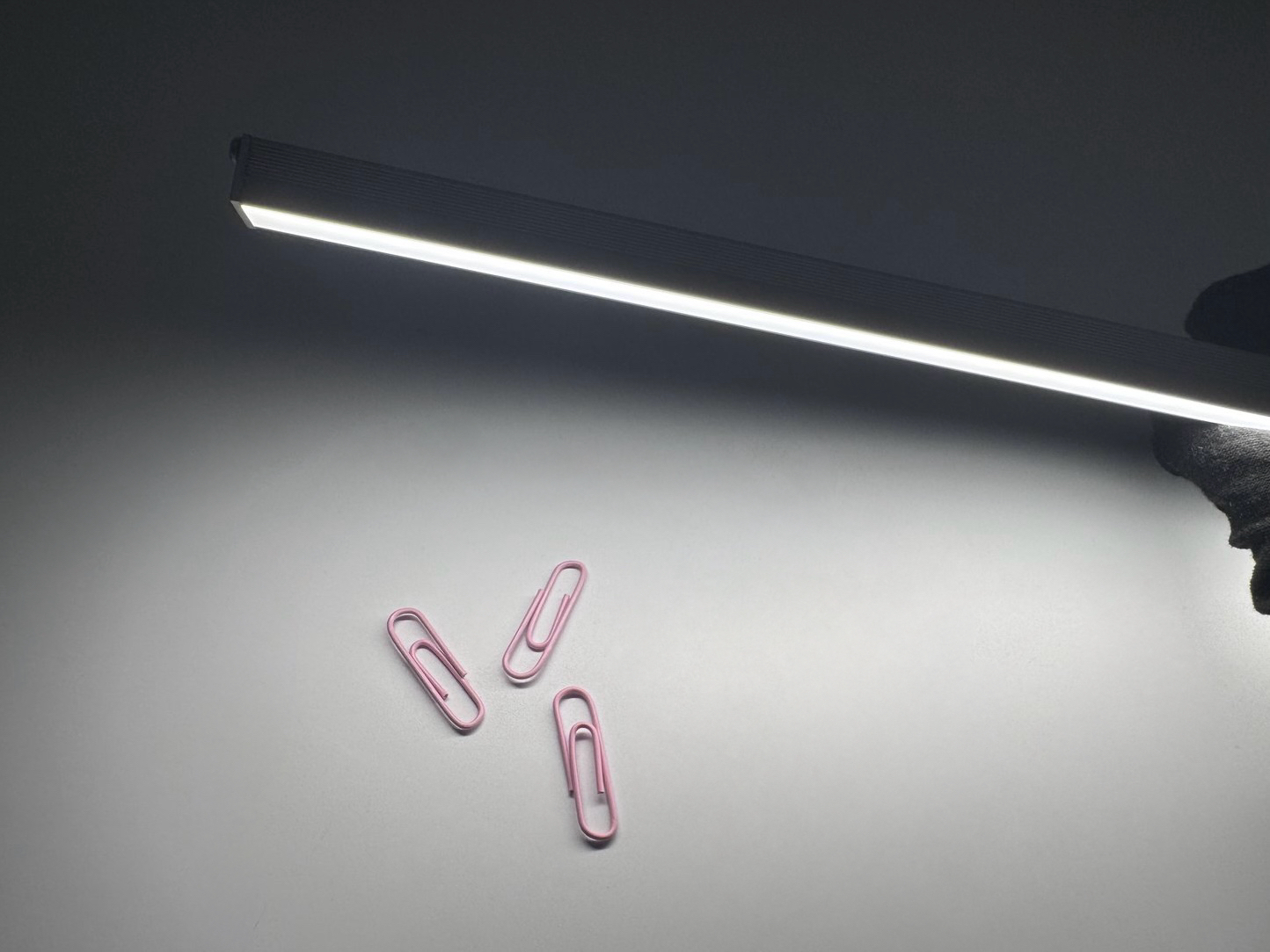

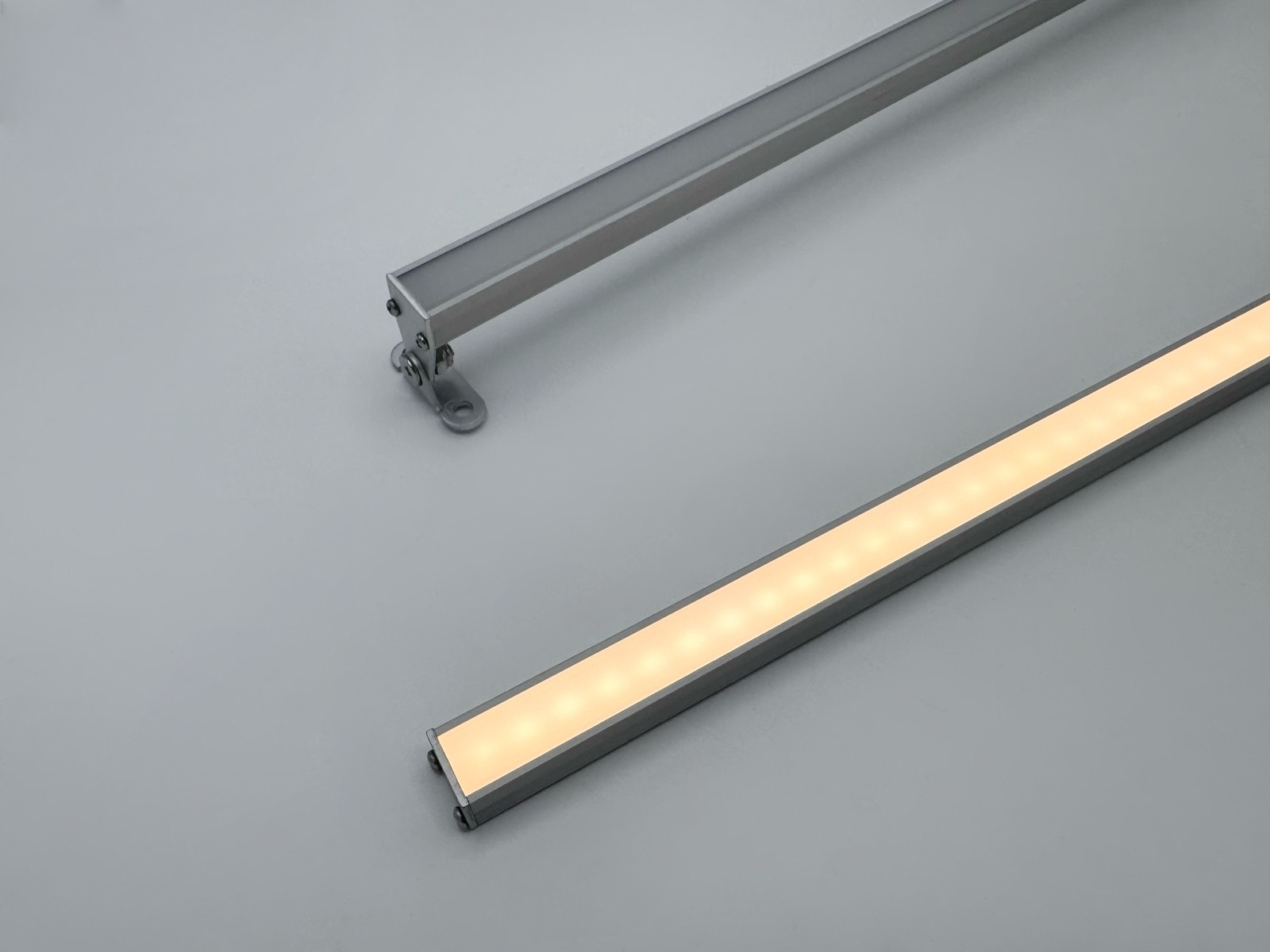

Linear Profile

H11.8mm × W14.6mm · Surface Mount · IP40

Versatile H11.8×W14.6mm linear with three mounting modes — fixing clip, adjustable bracket, or magnet. 10–24 W/m output, up to 1560 lm/m. Osram chip, 3-step MacAdam ellipse, 100° diffused optic, custom lengths to 2008mm.

CRI ≥90IP4024V DCDALI / DMX50,000hCE · KC · BIS3-Step MacAdam

Download Spec Sheet ↓

Technical Data

Full Specification

Dimension

H11.8mm × W14.6mm × L Variable

min 108mm · max 2008mm

PCB Increment

50mm

LED/m

120

Chip

Osram or equivalent

Beam Angle

100°

Diffused optic

CCT

3000K · 3500K · 4000K

Bin / Step

3-Step MacAdam Ellipse

CRI

≥ 90

CRI 92.1 @ 3043K

Lifetime

50,000 hours @ 25°C

Operating Temp.

−25°C to +40°C

Tc max = 66°C

IP Rating

IP40

Finish

Silver / Black / Custom

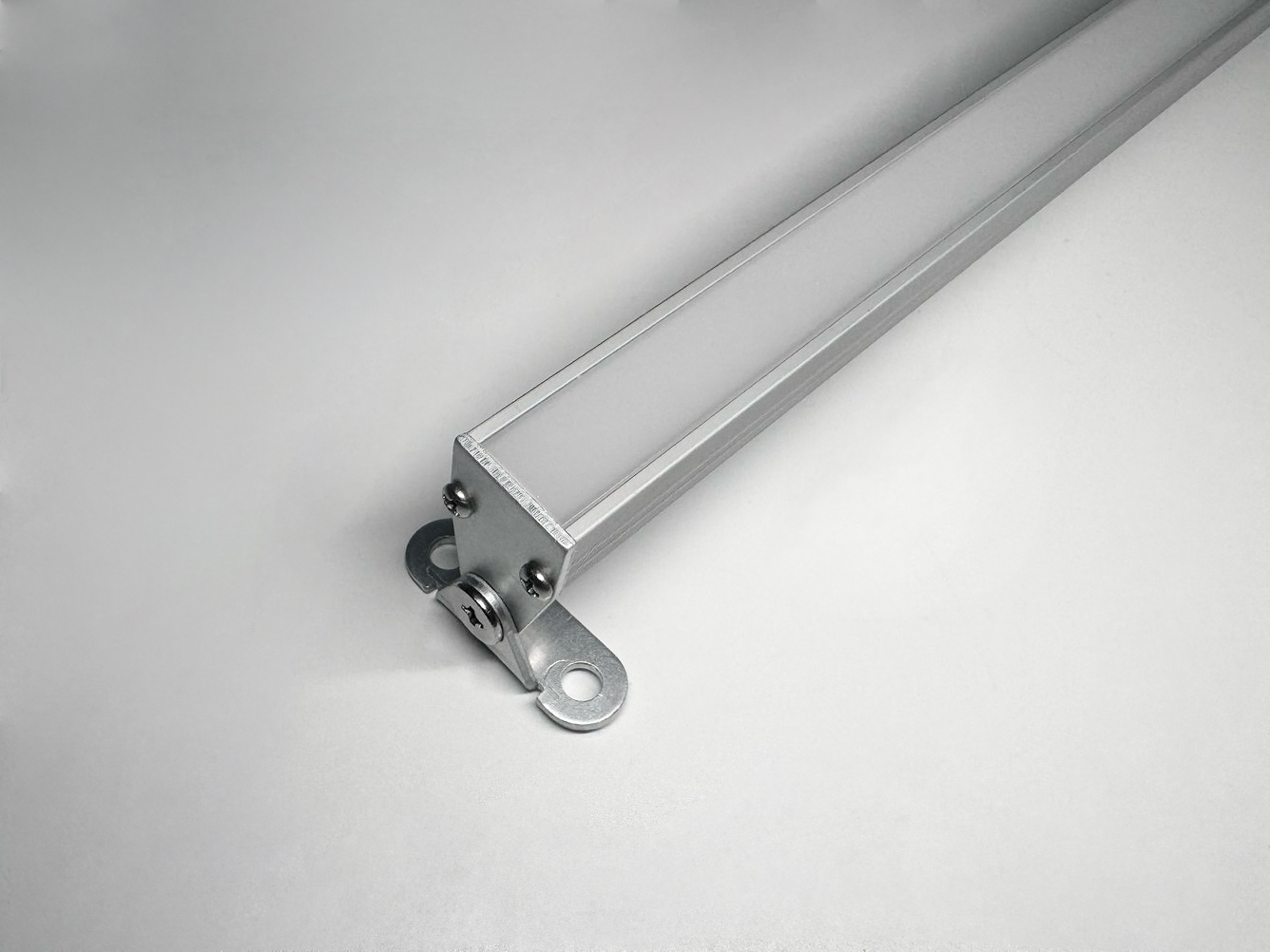

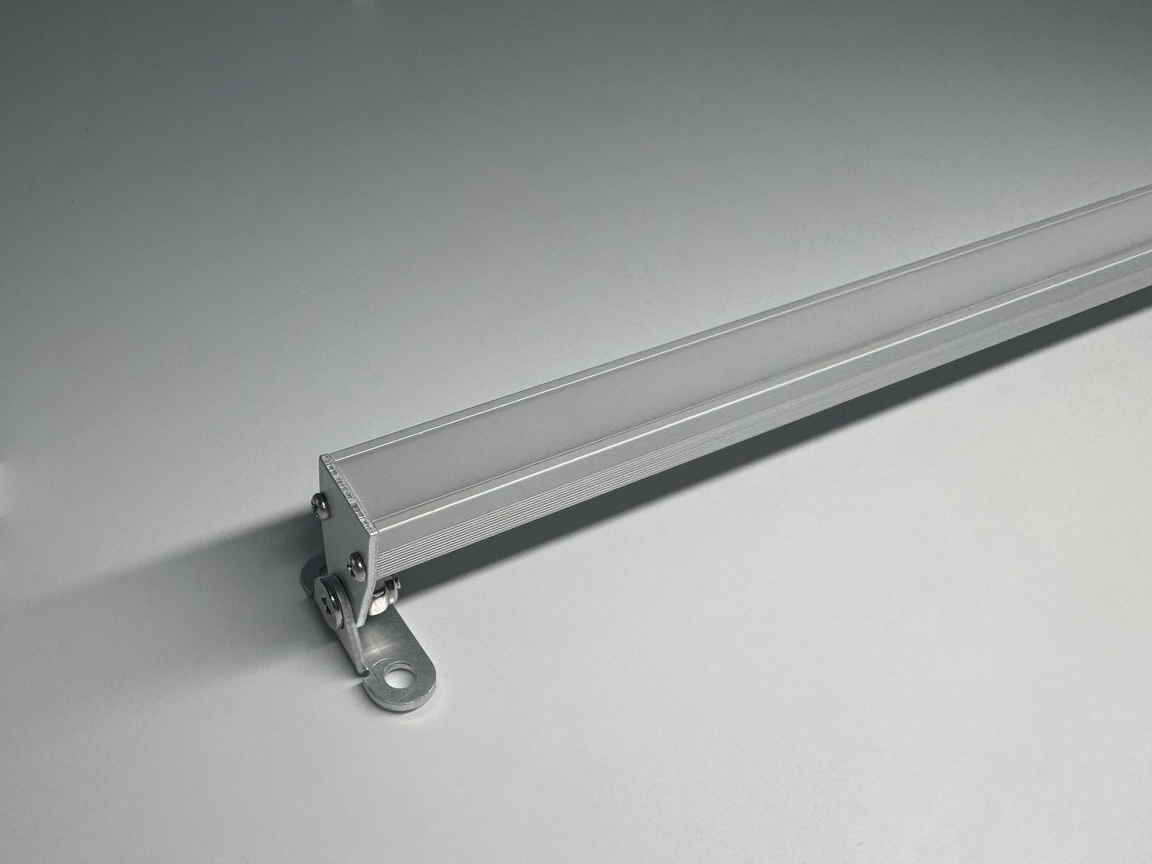

Mounting

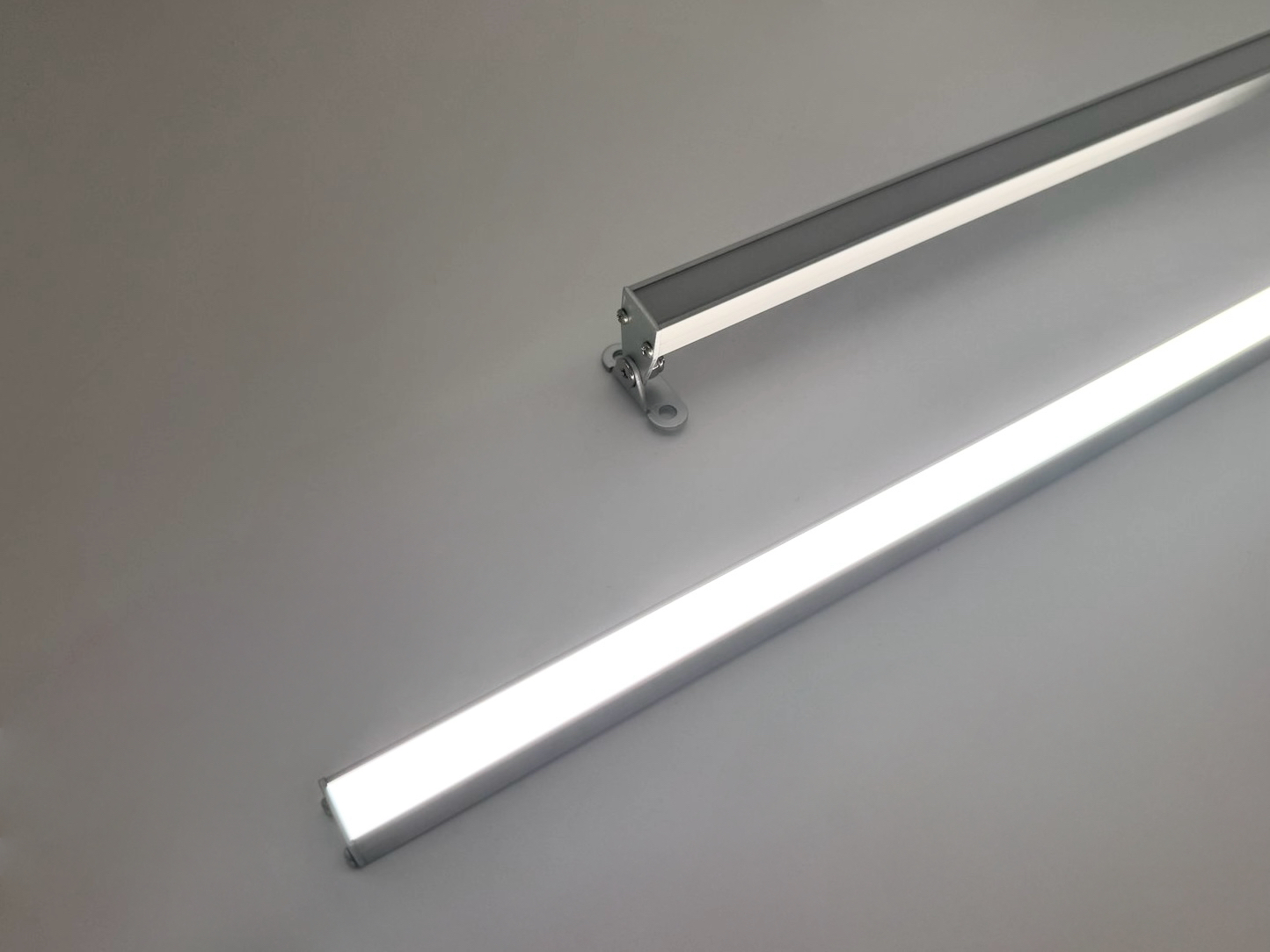

Fixing Clip / Adjustable Bracket / Magnet

Power Feed

Hardwire tail or M/F connectors

Wire Section

20AWG — 0.5 mm²

Wire Length

300mm

Custom on request

Control

0-10V / 1-10V / DMX / DALI

Supply Voltage

24V DC

Certification

CE, KC, BIS

Power & Lumen Output

Product Models @ 3000K

Model	Wattage	Efficacy	Luminous Flux
NEX-CN002-10	10 W/m	65 lm/W	650 lm/m
NEX-CN002-16	16 W/m	65 lm/W	1040 lm/m
NEX-CN002-24	24 W/m	65 lm/W	1560 lm/m

Technical Files

Downloads

View Datasheet

Also Consider

Related Products

Linear

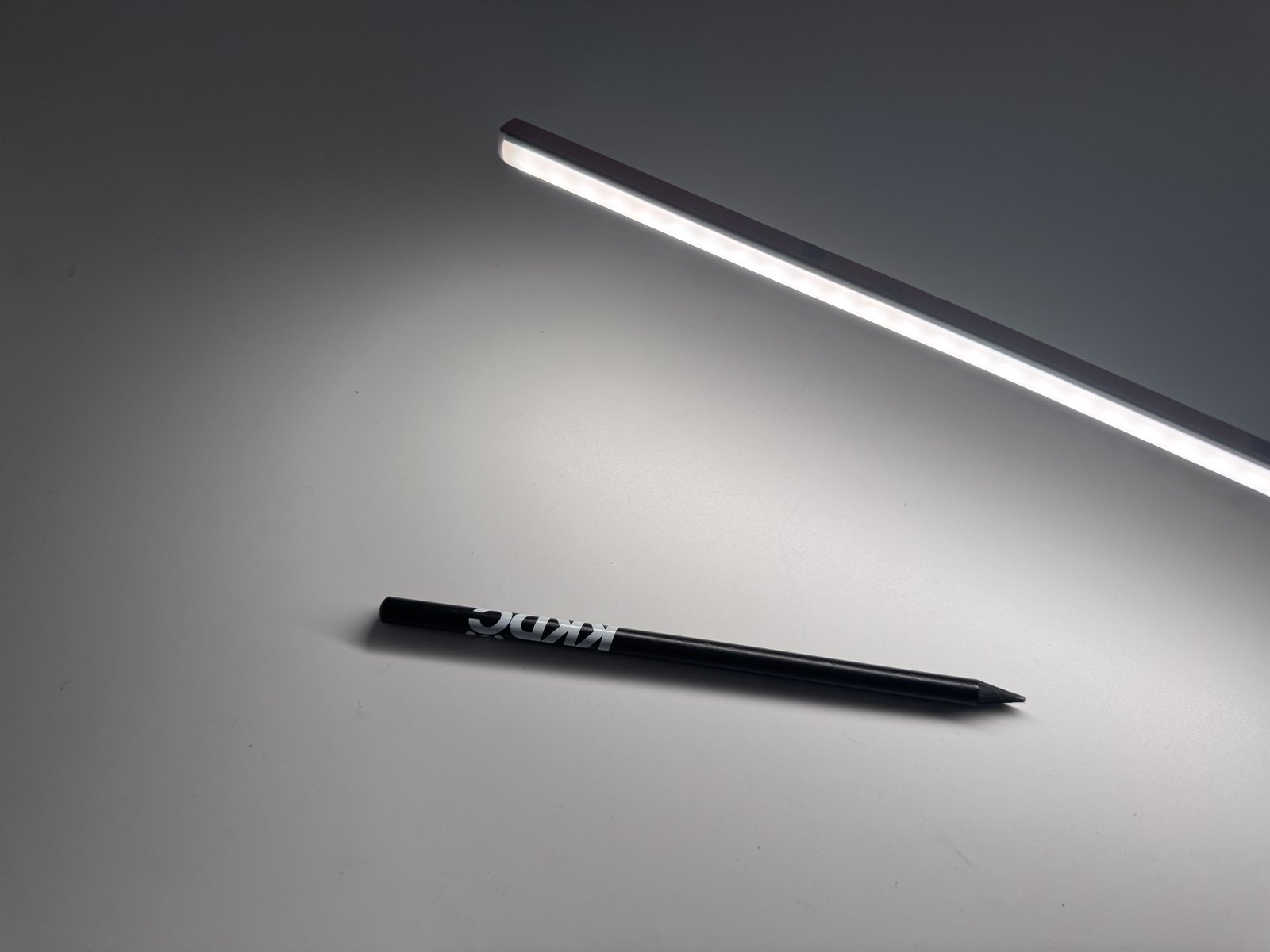

Apex-CN001

IP40 · H10×W10mm · 1136 lm/m · CRI ≥90

Linear

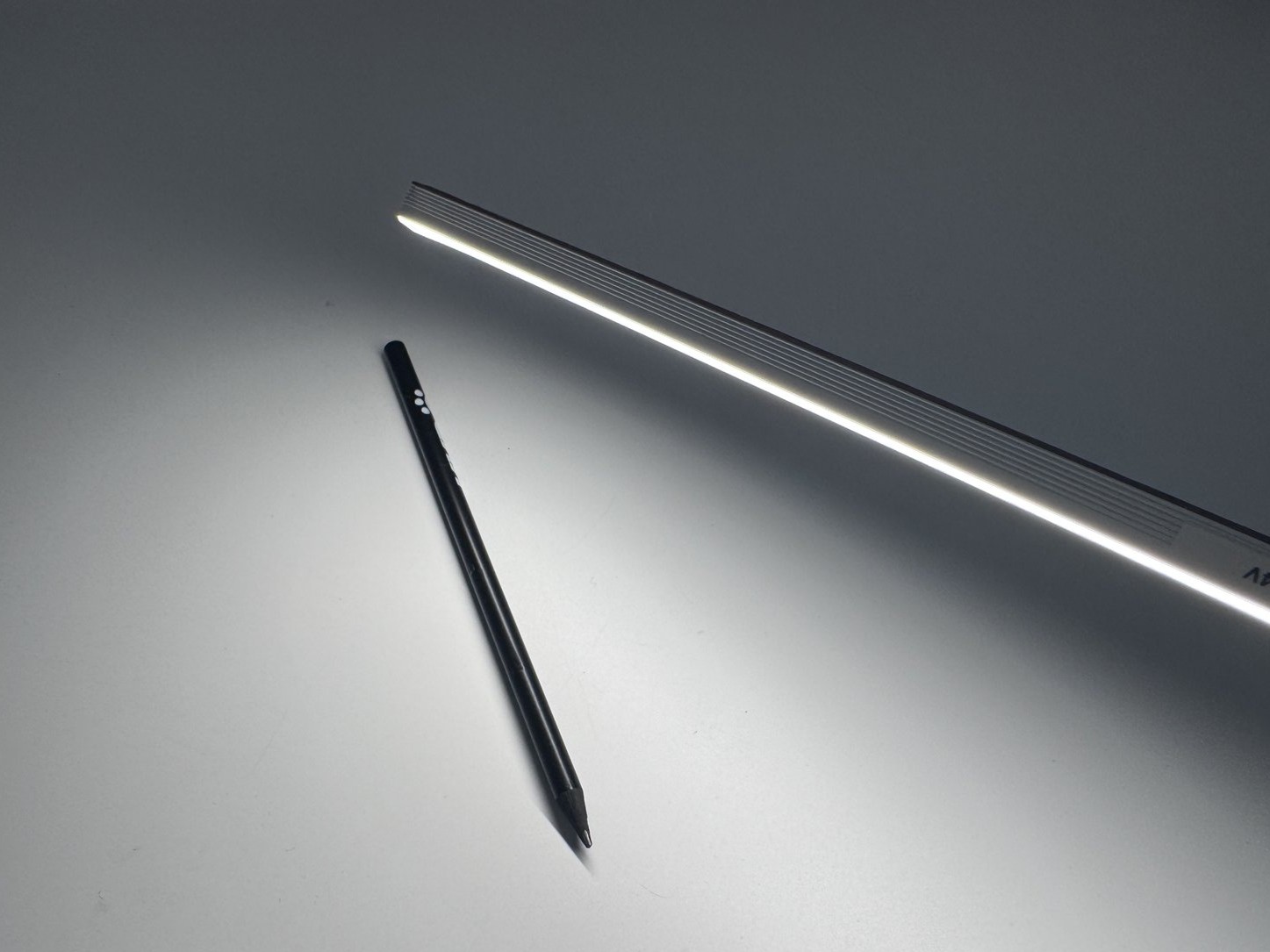

Nex-CN005

IP40 · H9×W8mm · 1008 lm/m · CRI ≥90

Linear

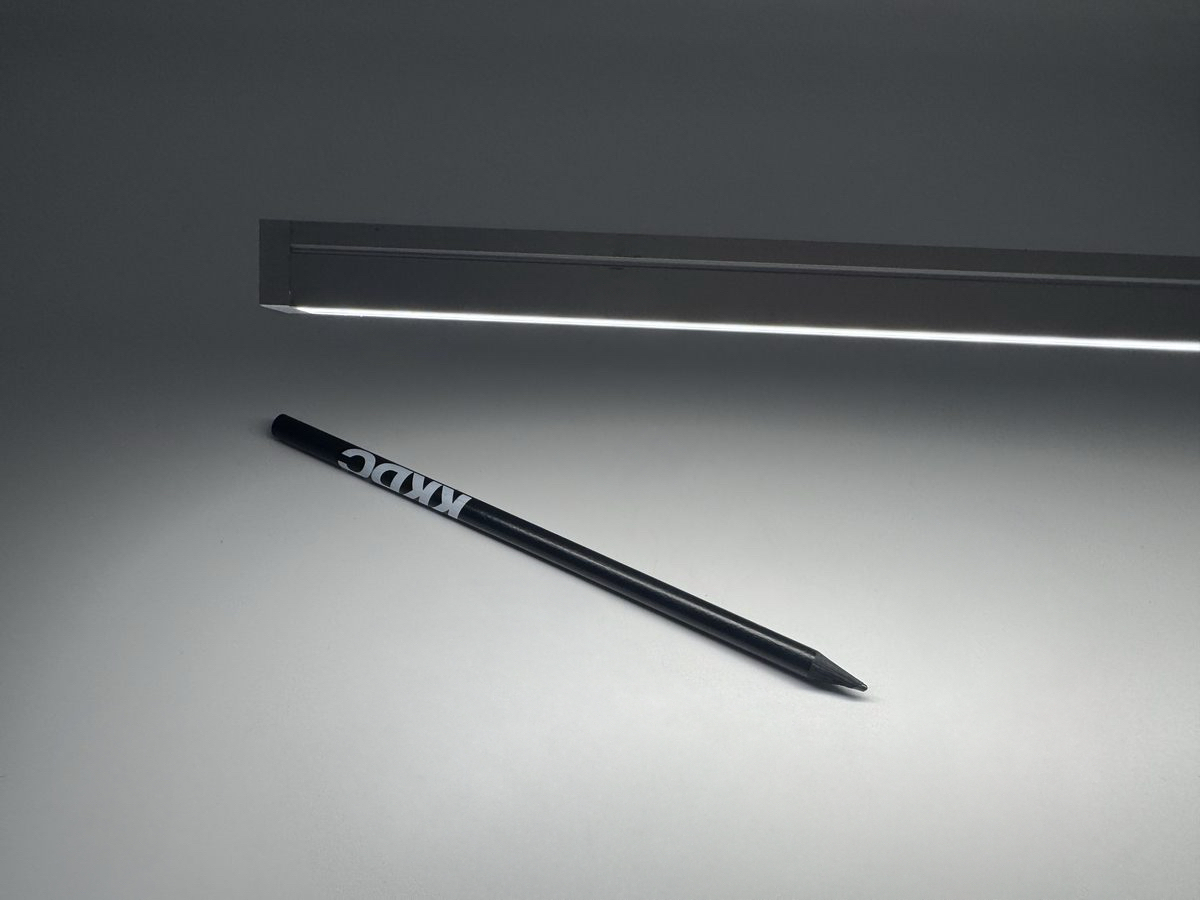

Nex-CN007
