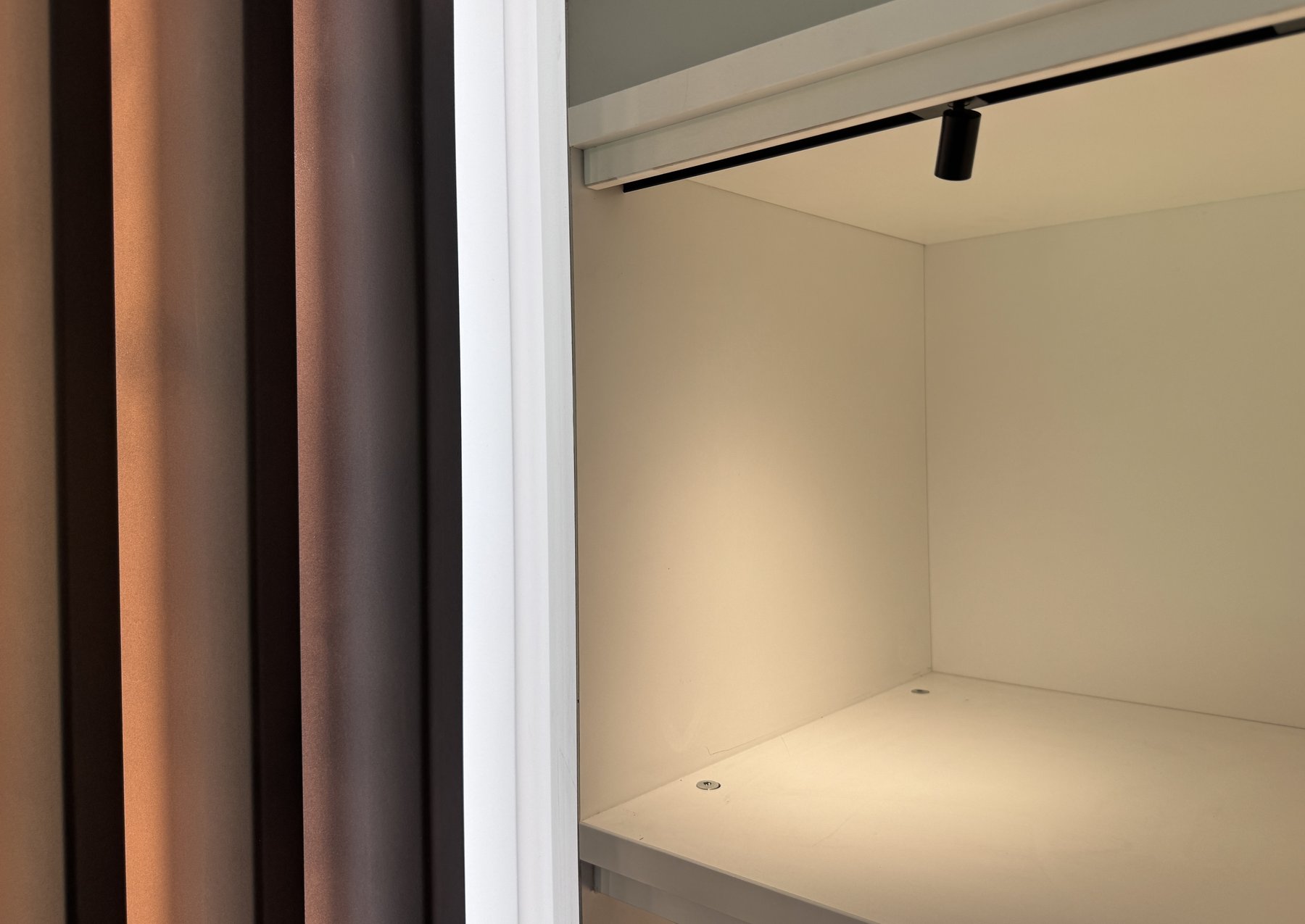

Mini Magnet A90D-1L — ultra-compact magnetic track spotlight

Spot & Track

Mini Magnet
A90D-1L

Ultra-Compact Magnetic Track Spotlight

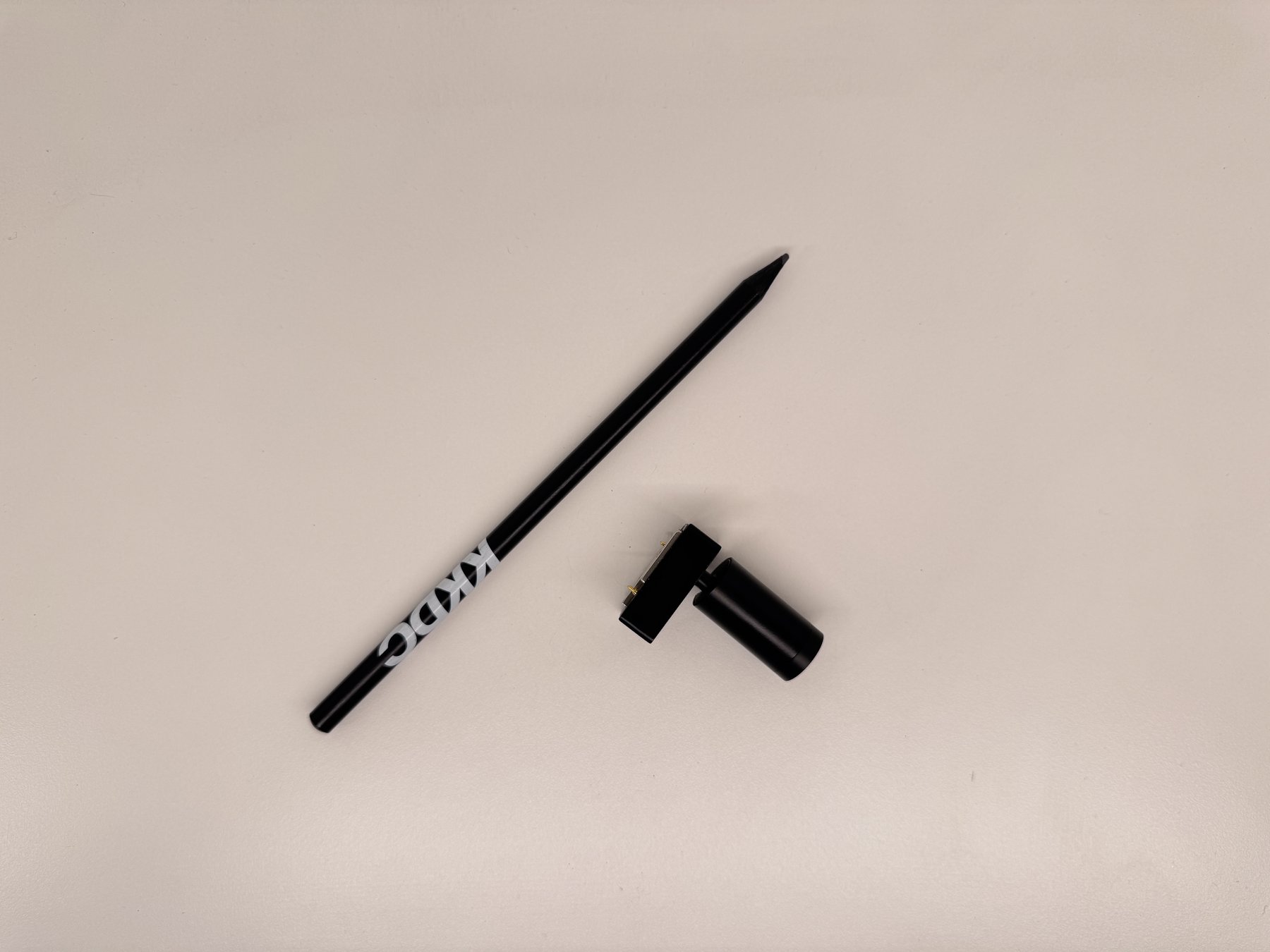

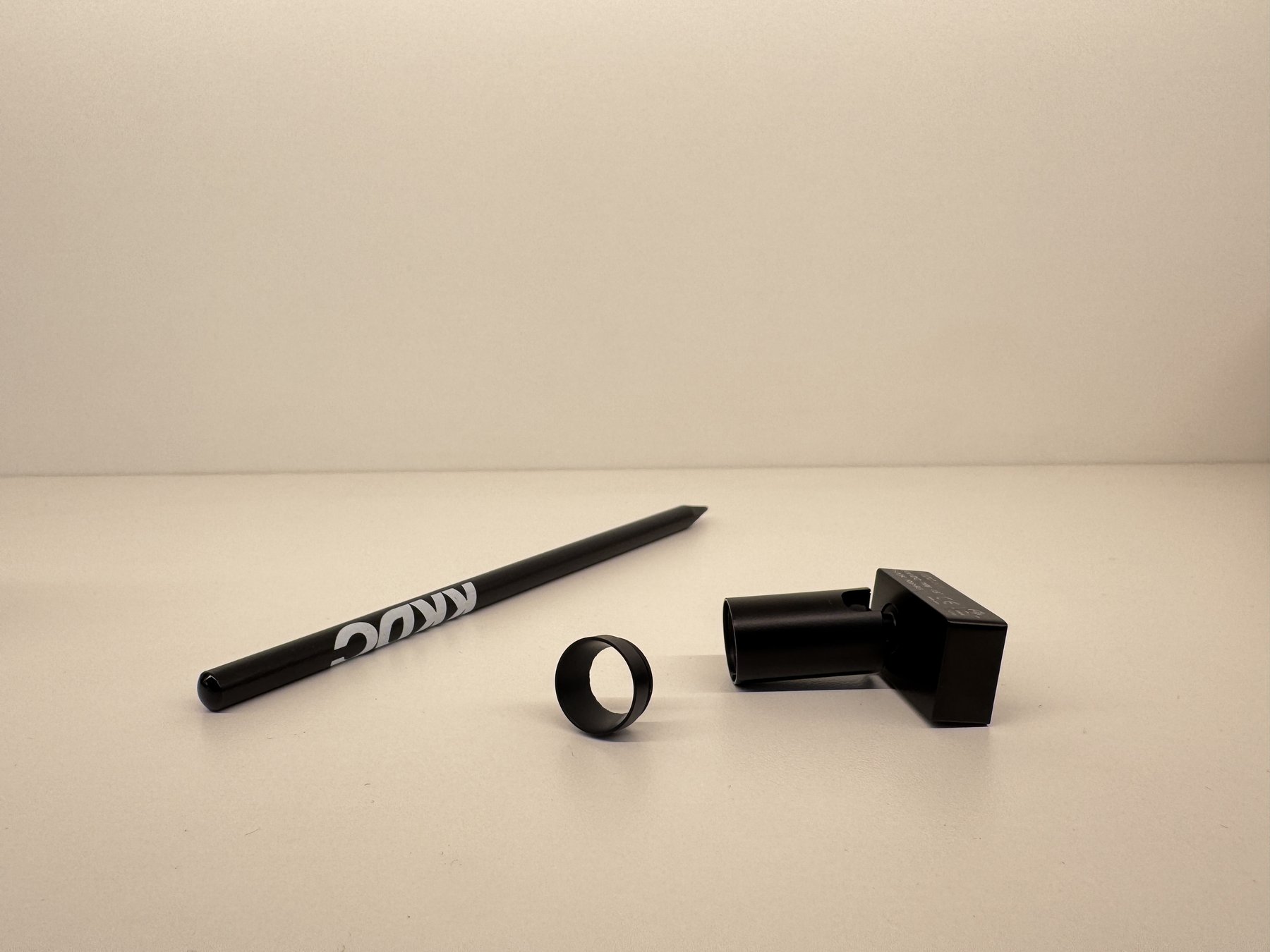

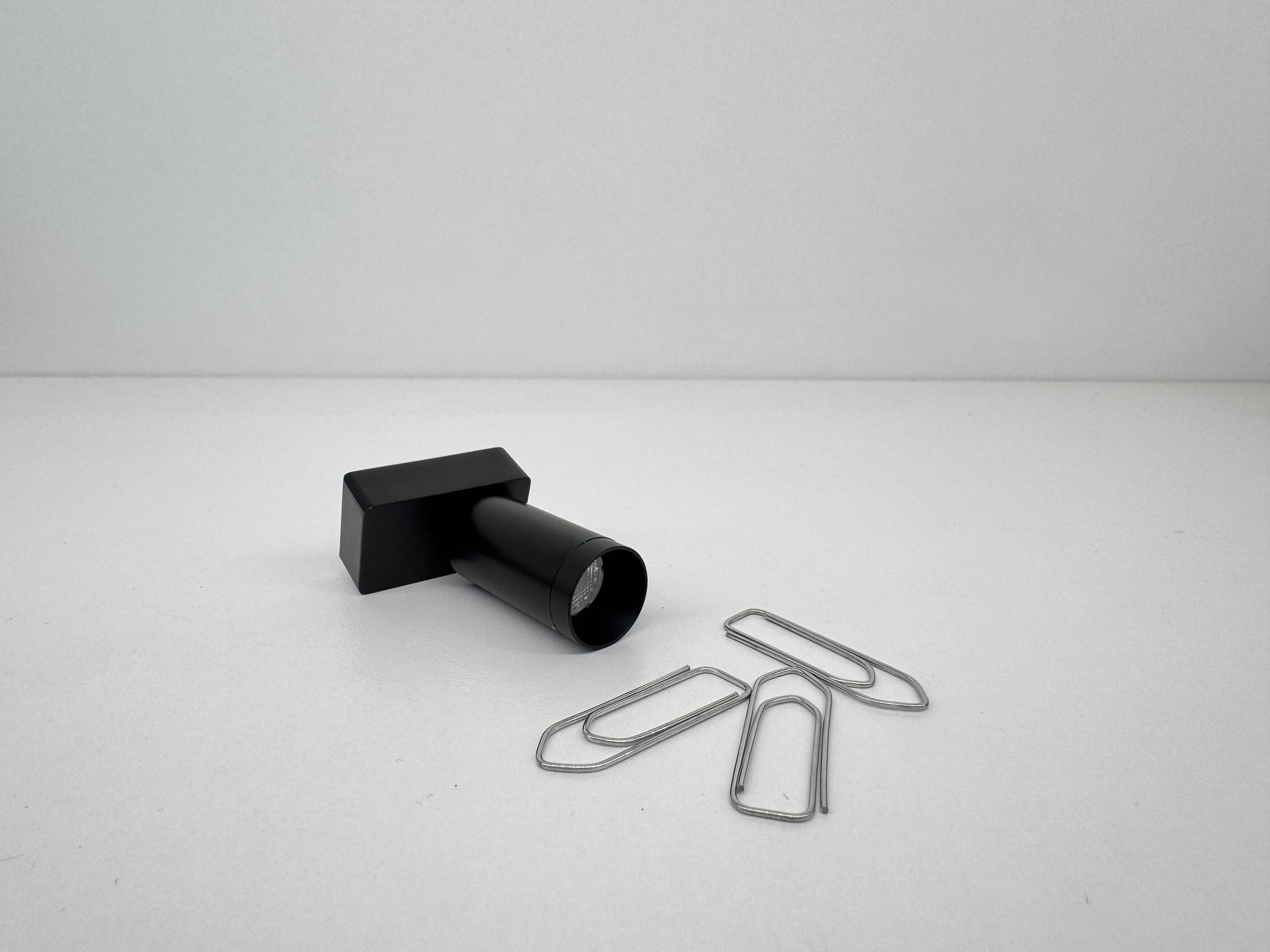

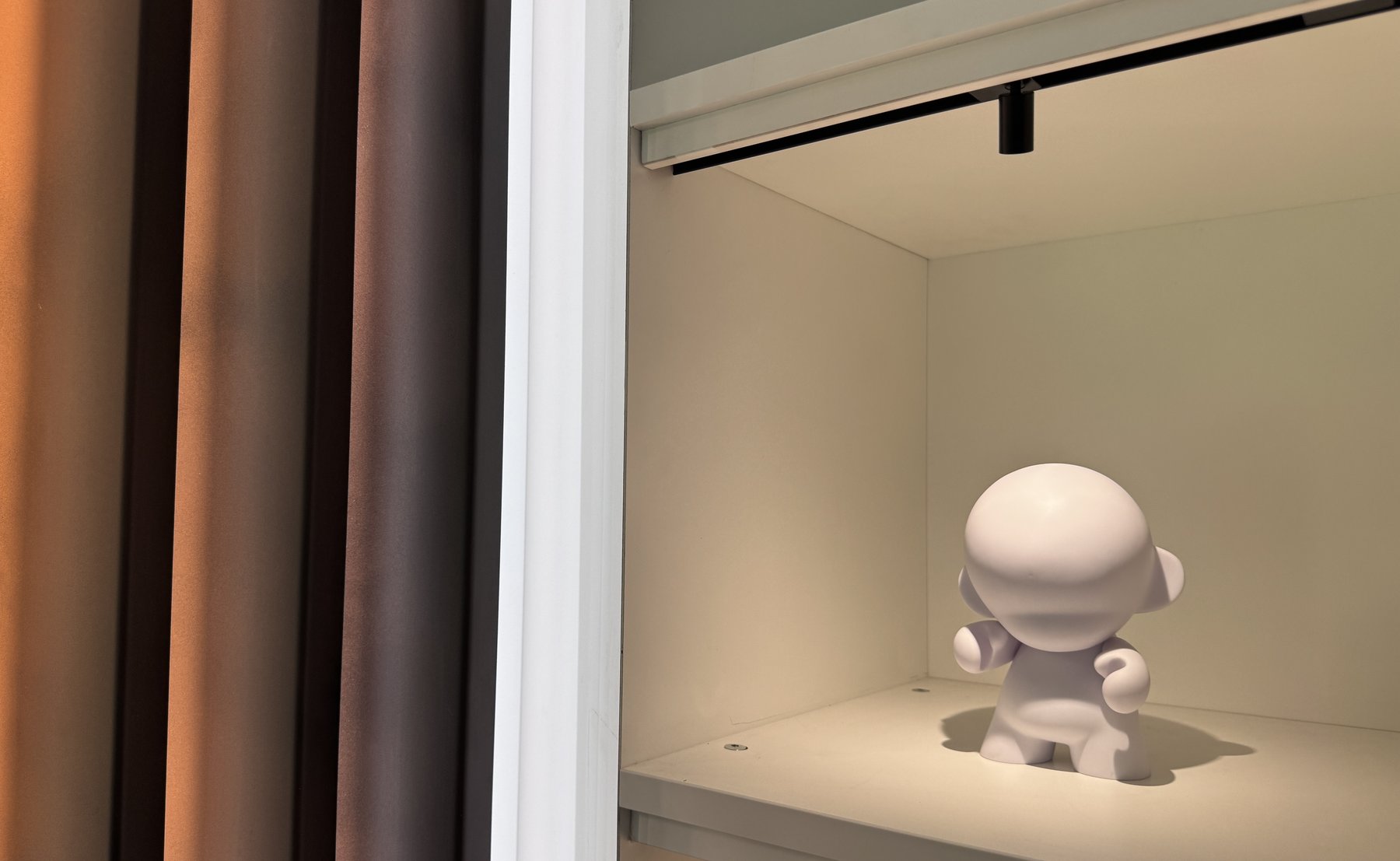

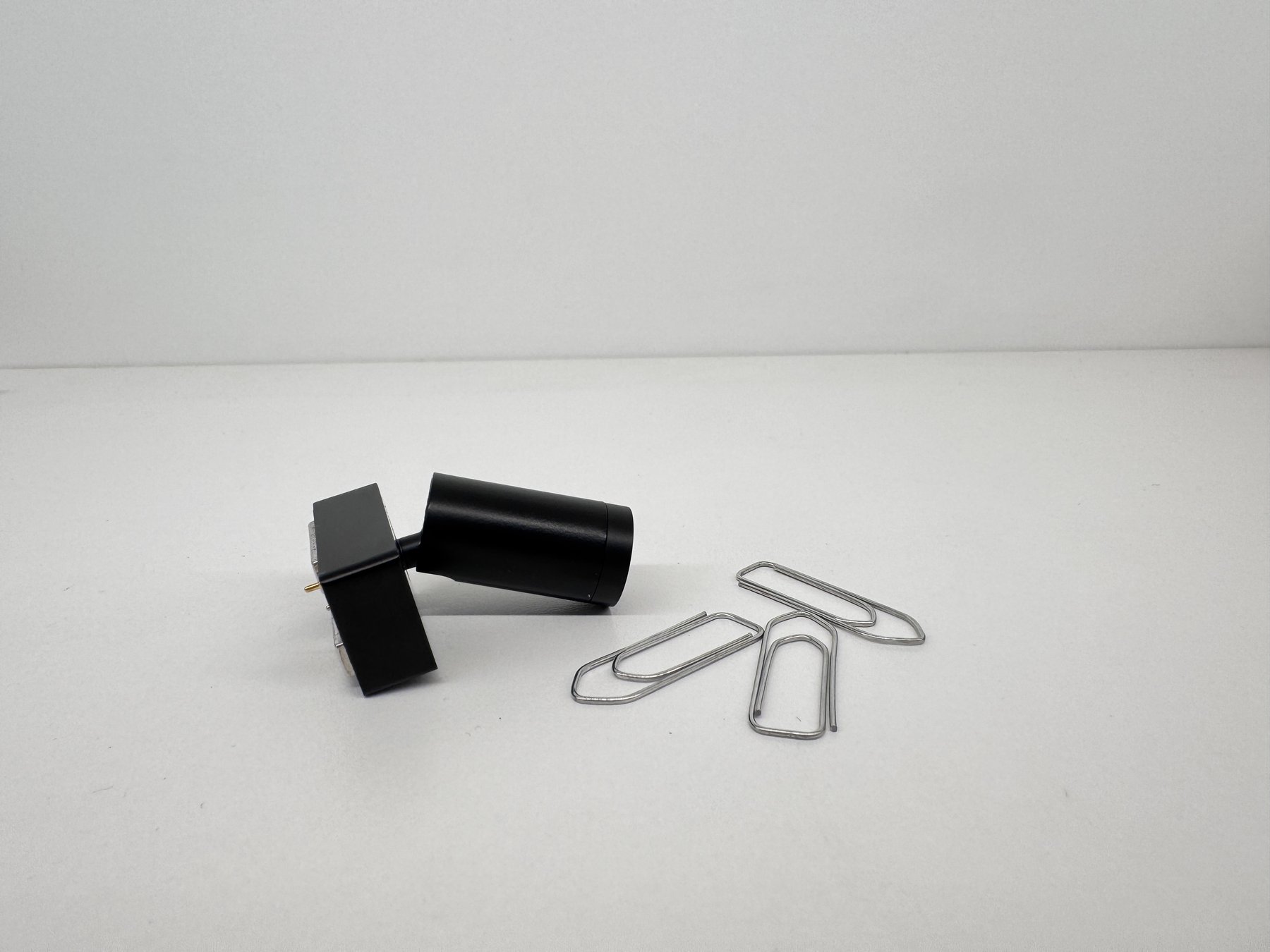

The smallest spotlight in the Mini Magnet family. At just H38.5mm × Ø16mm and 1.5W, it delivers CRI ≥95 and TM-30 Rf 94 colour fidelity where minimal visual presence is essential — vitrine shelving, jewellery display, and detail accent lighting. Six beam angles from 5° to 60°, full CCT range, DALI dimming, 24V magnetic snap-on mount.

24V Magnetic 1.5W IP40 DALI CRI ≥95 2-Step MacAdam

Datasheet ↓

Technical Data

Full Specification

Wattage

1.5W

Luminous Flux

85 lm

@ 3500K

Voltage

24V DC

CCT Range

2700K – 6000K

6 CCT options

CRI

≥ 95

2-step MacAdam ellipse

TM-30

Rf 94 / Rg 99

@ 3500K

Beam Angle

5° / 15° / 24°

Also 38° / 45° / 60°

Dimming

DALI / 0–10V / PWM

Also 1–10V

IP Rating

IP40

Dimension

H38.5mm – Ø16mm

Track adapter incl.

Mounting

Magnet

0.5mm² · 1000mm lead

Lifetime

50,000 h

L80 B20 @ 25°C

Body Finish

Black / Silver / White

Custom on request

Certification

CE / UL

Warranty

3 Years

Configurations

Available Variants

Black Body

RAL 9005

White Body

RAL 9003

Silver Body

Standard finish

3000K Warm

CCT preset

3500K Neutral

CCT preset

4000K / 5000K / 6000K

CCT preset
