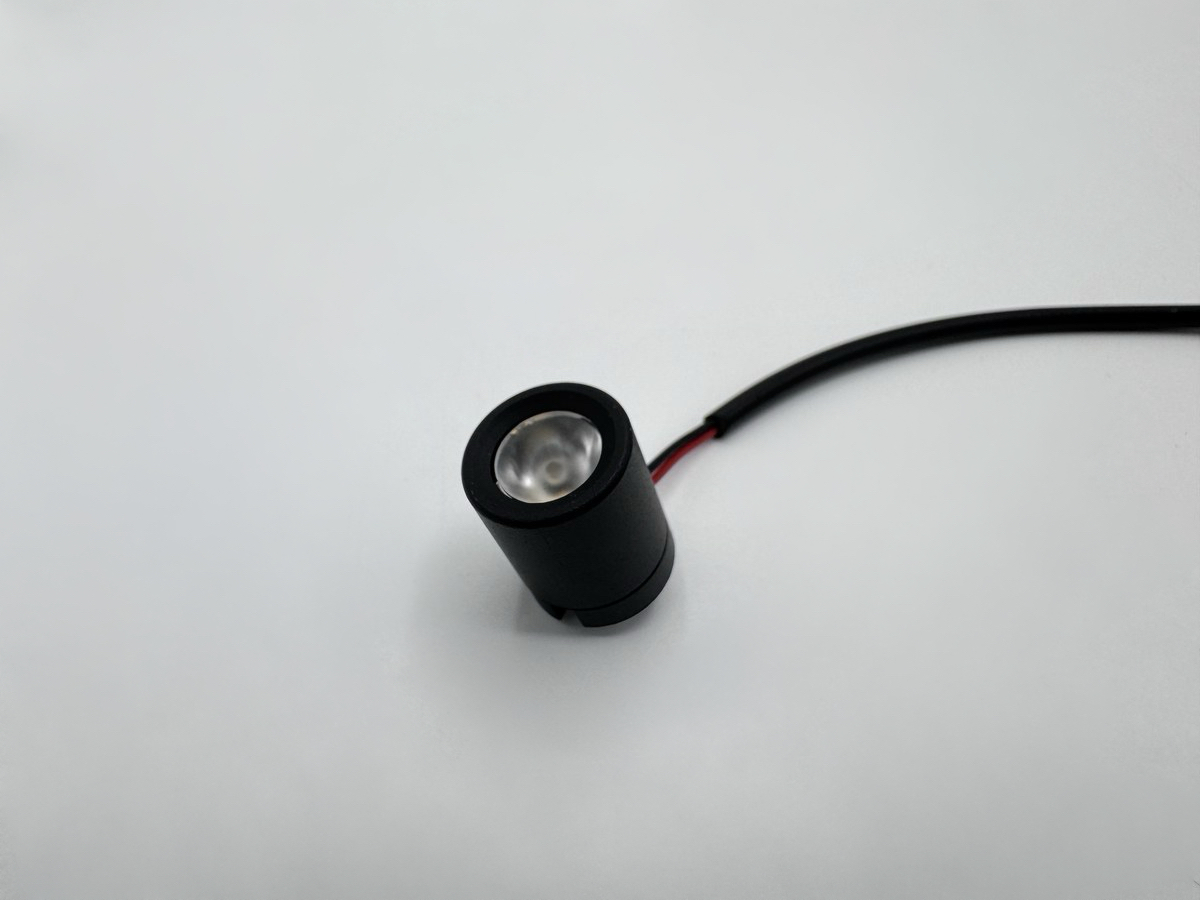

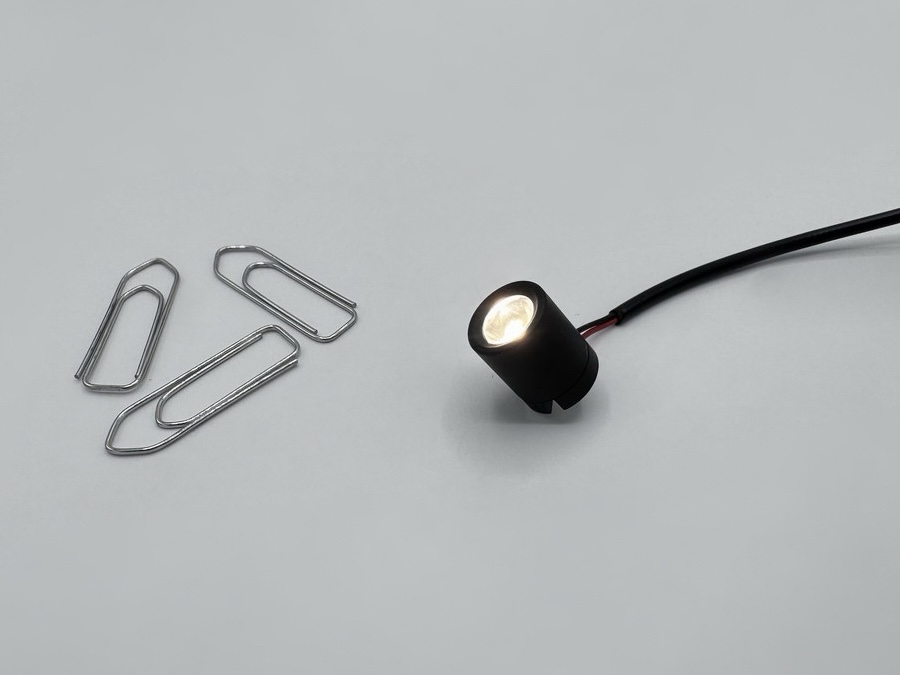

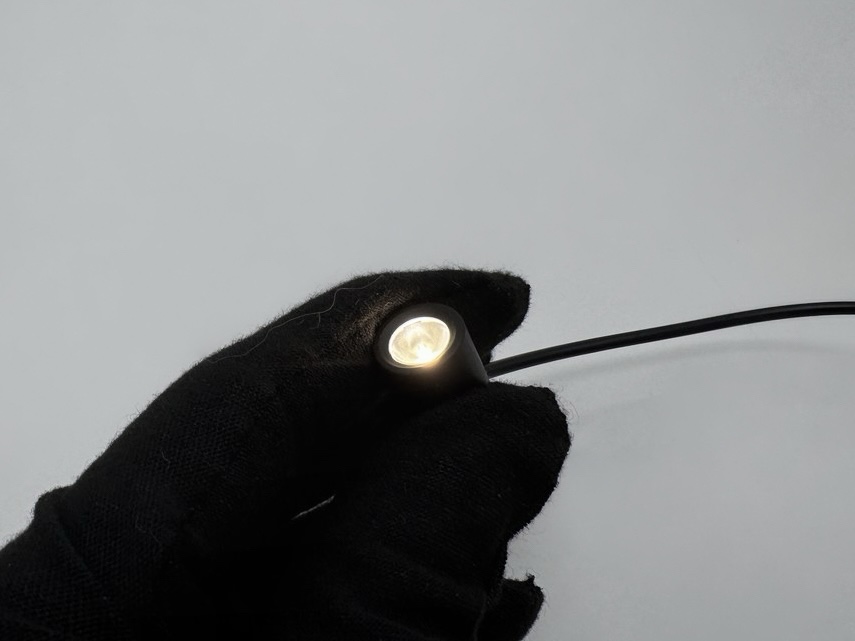

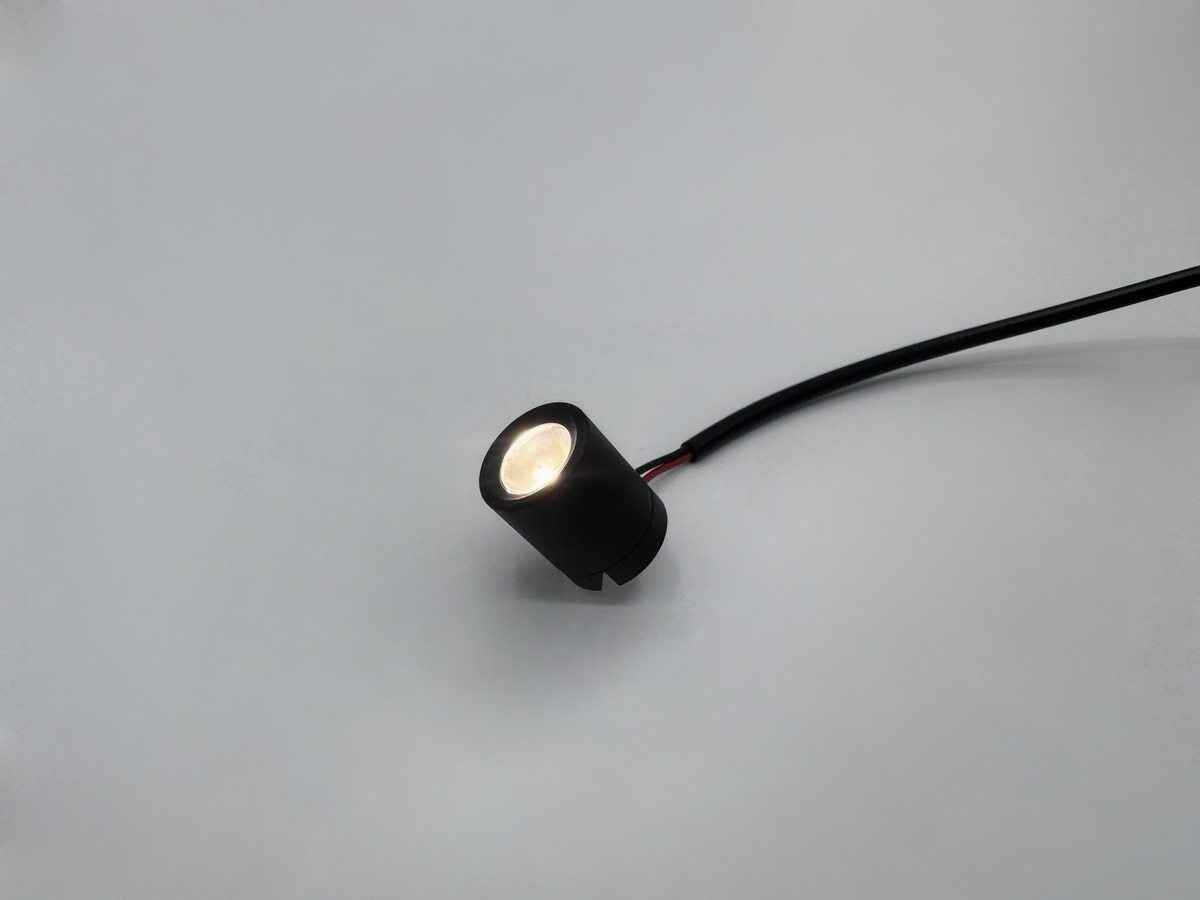

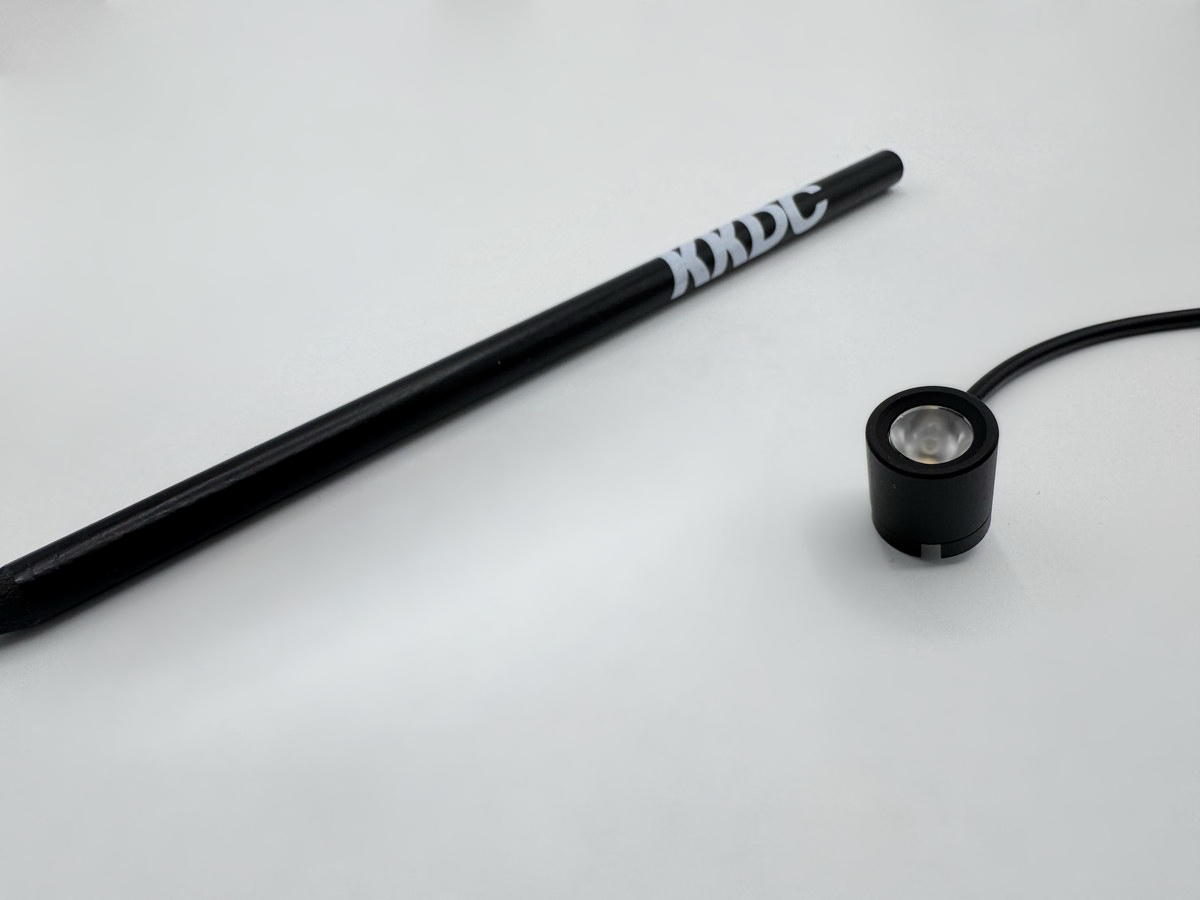

Micro Spot PFS

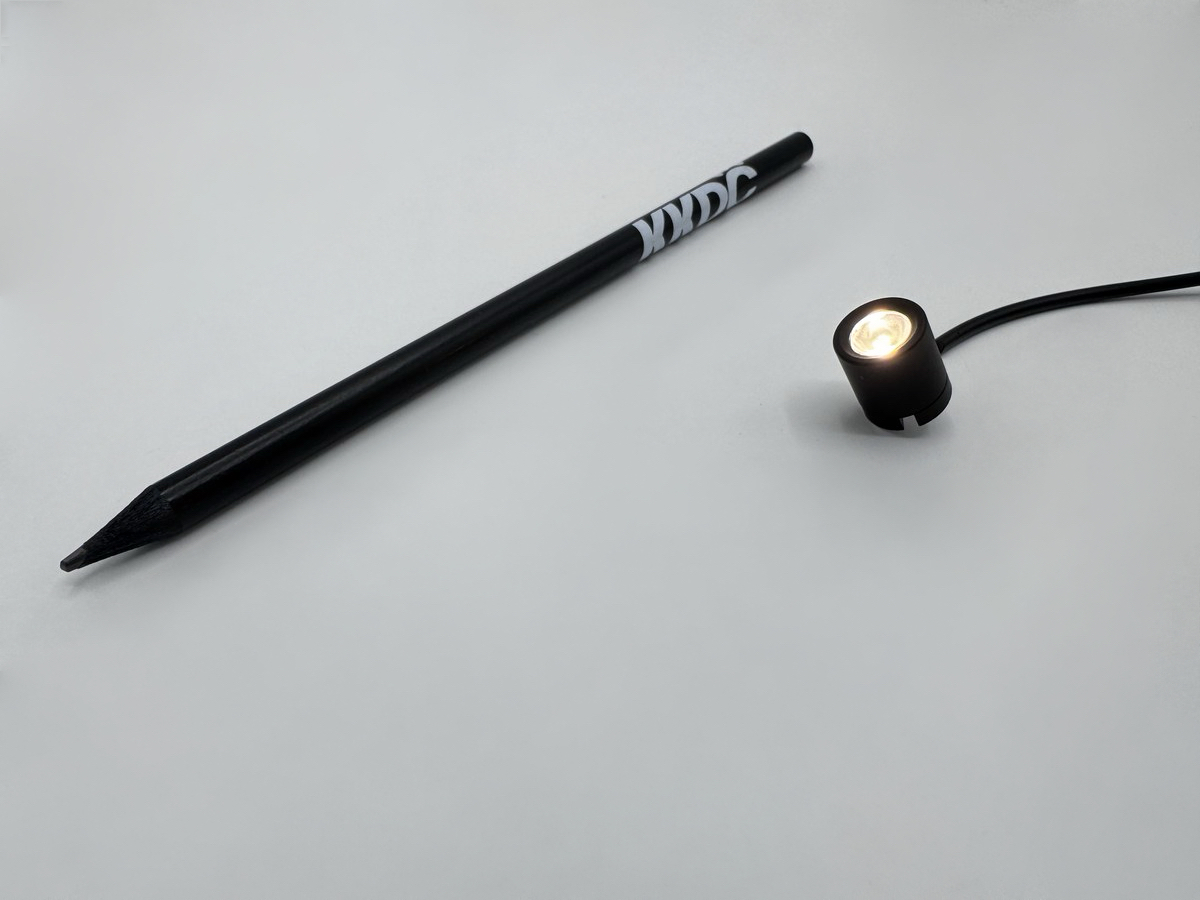

Ultra-Micro Magnetic Spot — 15 × 12.5 mm

Exceptionally compact at just 15×12.5mm — the Micro Spot PFS delivers a precise 20° beam from a near-invisible fixture. Nichia chip, 2-step MacAdam consistency, magnetic mount. Where the light matters more than the luminaire.

1.6W Magnetic Nichia DALI CRI ≥90 CE

Spec Sheet ↓

Technical Data

Full Specification

Wattage

1.6W

Luminous Flux

106 lm

@ 3000K

Supply Voltage

3.2V DC

500mA

CCT

3000K / 4000K

2-step MacAdam

Beam Angle

20°

Precision narrow

CRI

≥ 90

Dimension

H15 × W12.5 mm

IP Rating

IP20

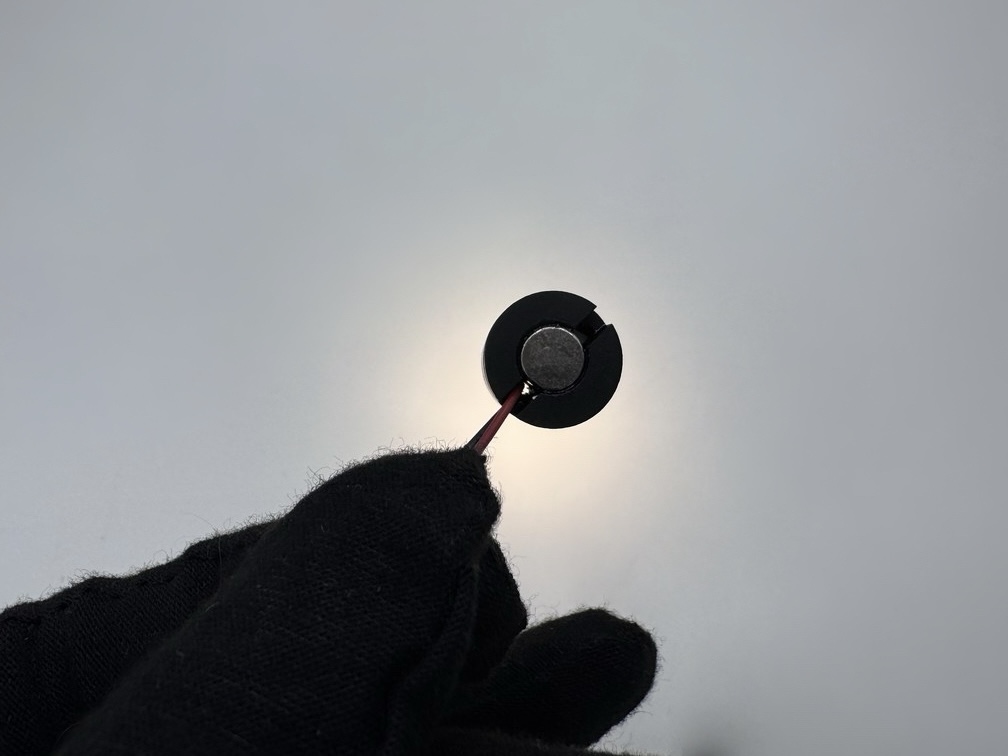

Mounting

Magnet

ChipNichia or equivalent

FinishBlack

Cover / LensLens

Power FeedHardwire tail or male/female connectors

Control0-10V / 1-10V / DMX / DALI

Lifetime50,000 hours @ 25°C

Operating TempTa = -20 to 35°C (Tc max = 60°C)

CertificationCE

Technical Files

Downloads

Get In Touch

Request a Sample

Interested in the Micro Spot PFS for your project? Our team will advise on system compatibility, CCT selection, and provide full project support.

EmailSend us an Email

Phone+39 02 83539019

ShowroomCorso Sempione 48, Milan
