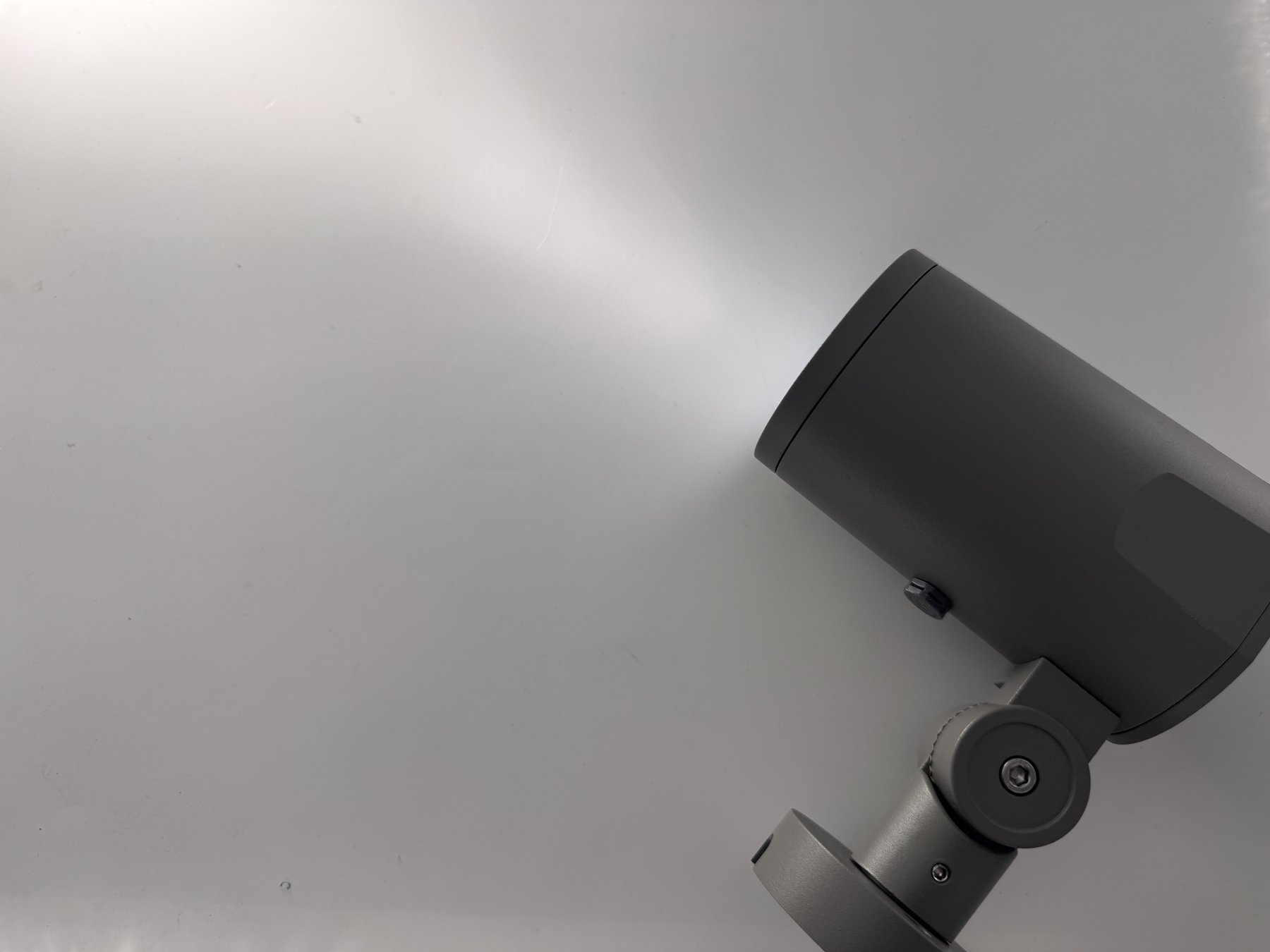

Laser Spot 12 outdoor wide-beam spotlight

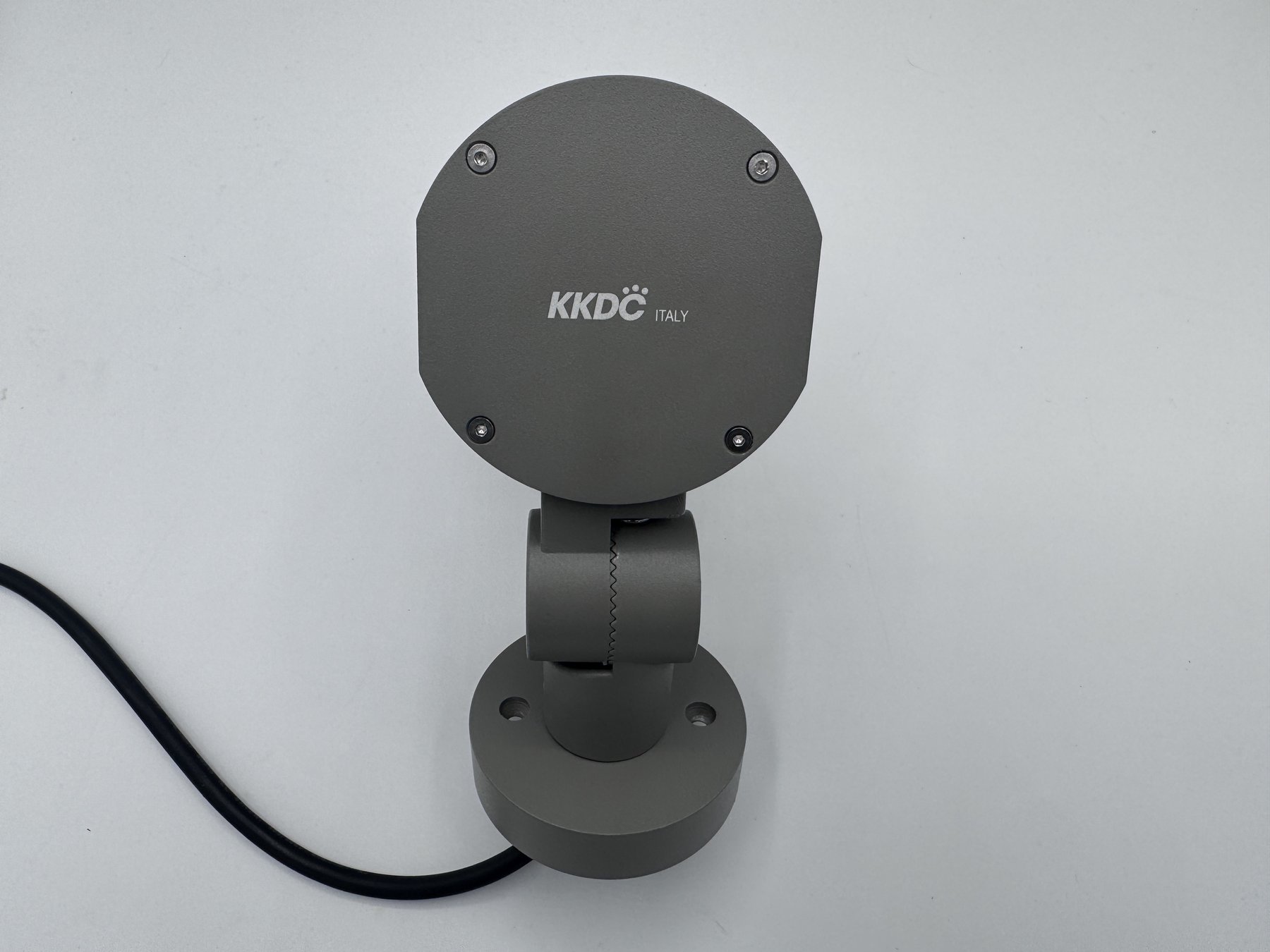

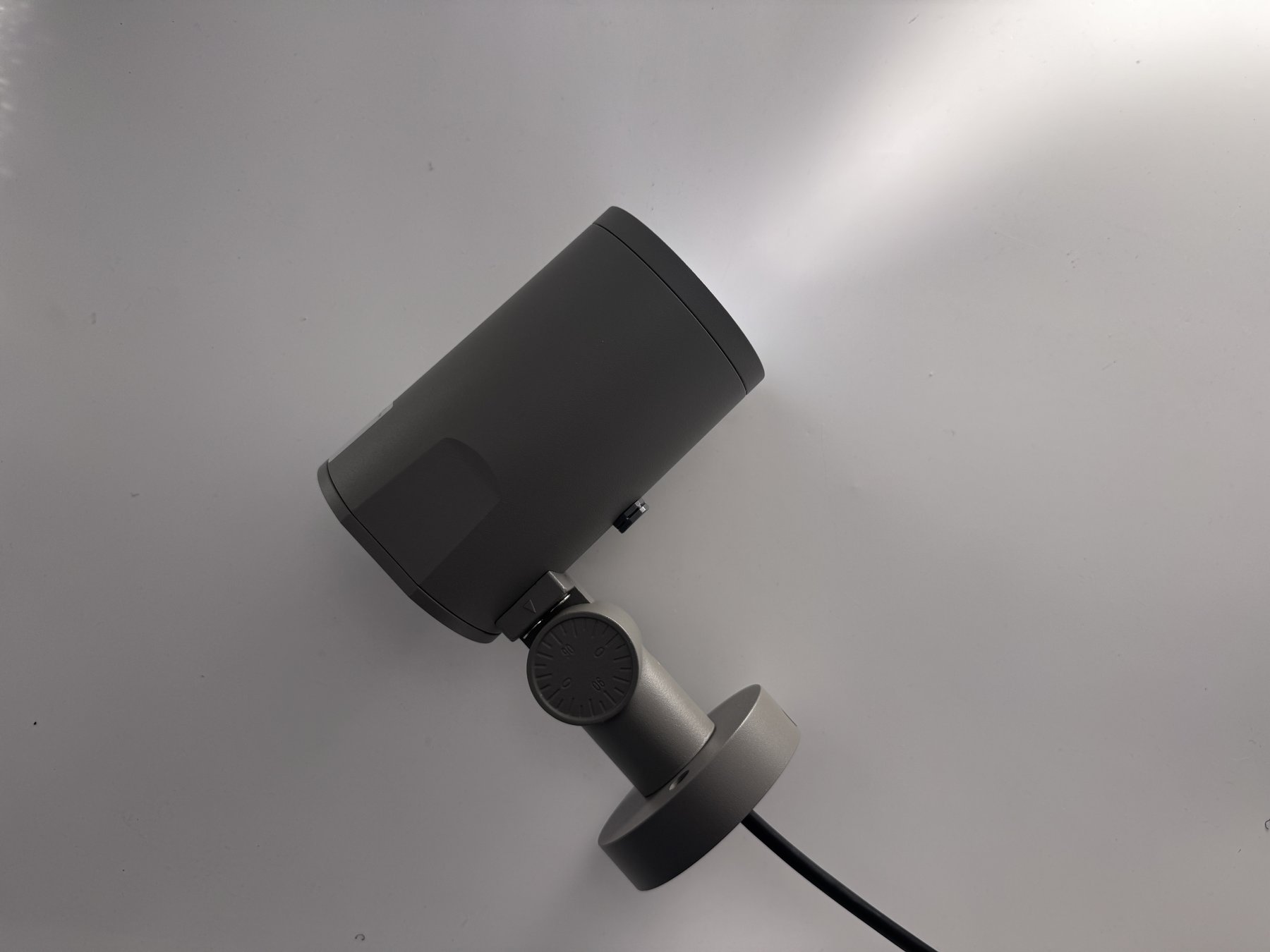

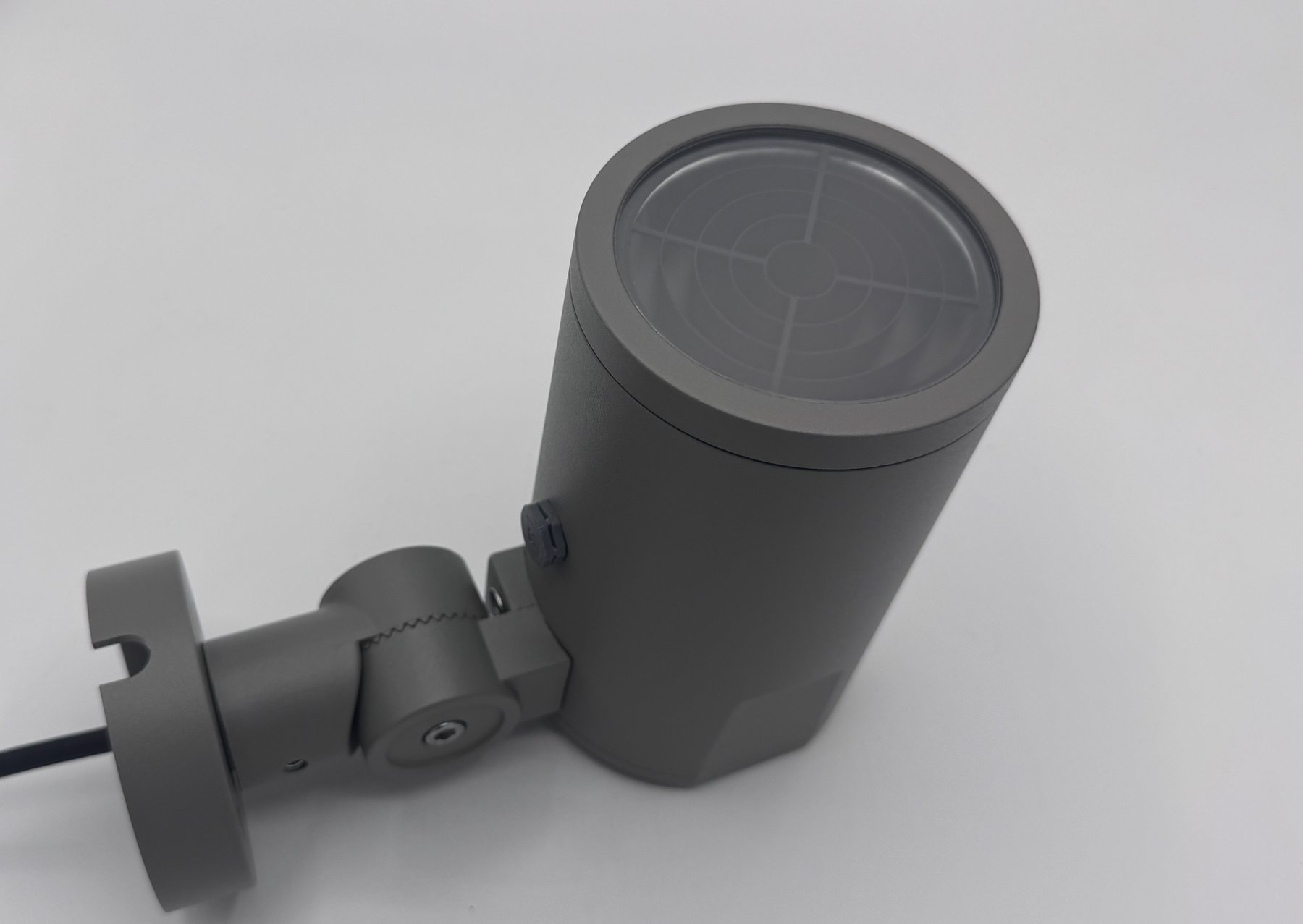

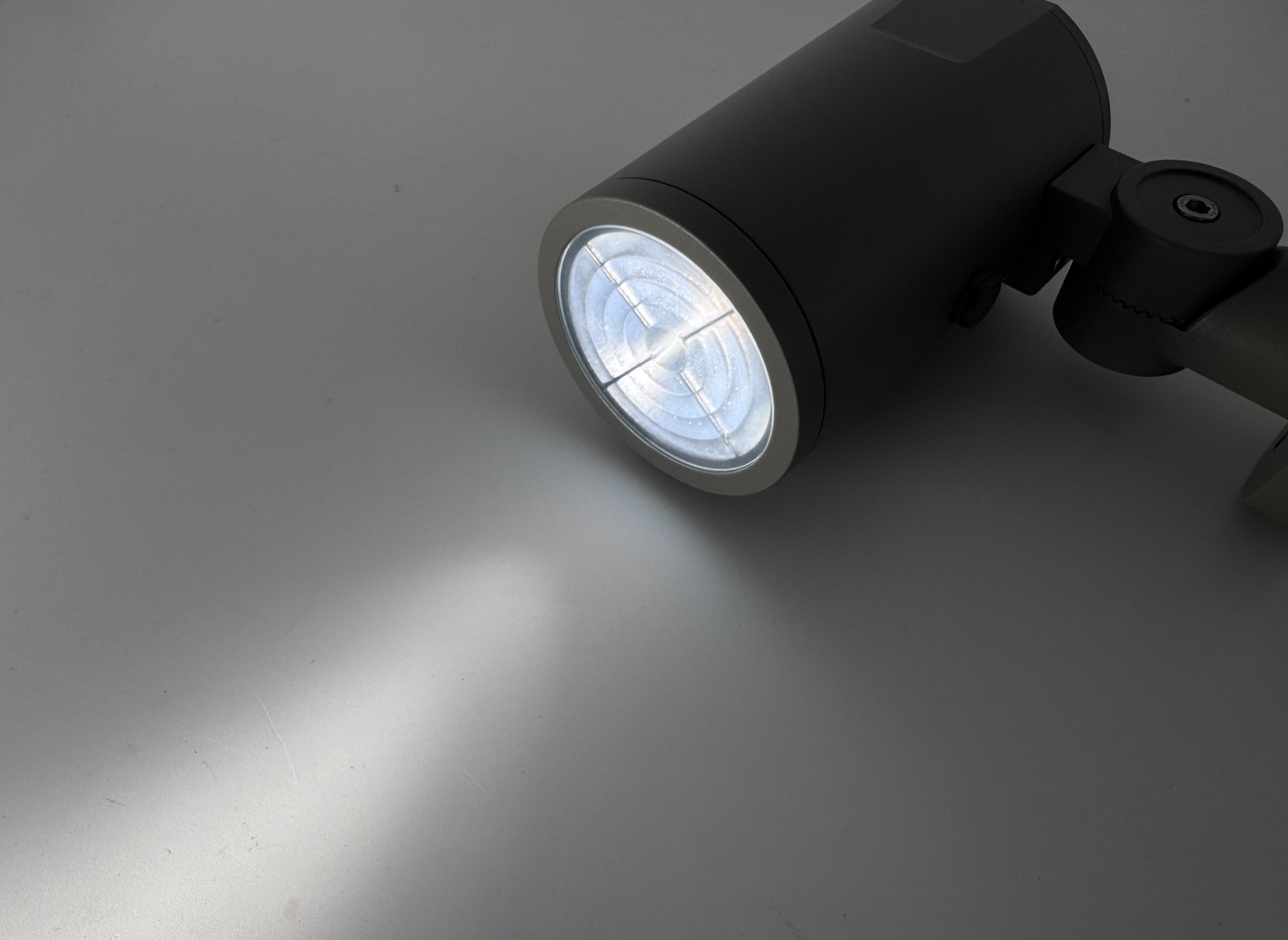

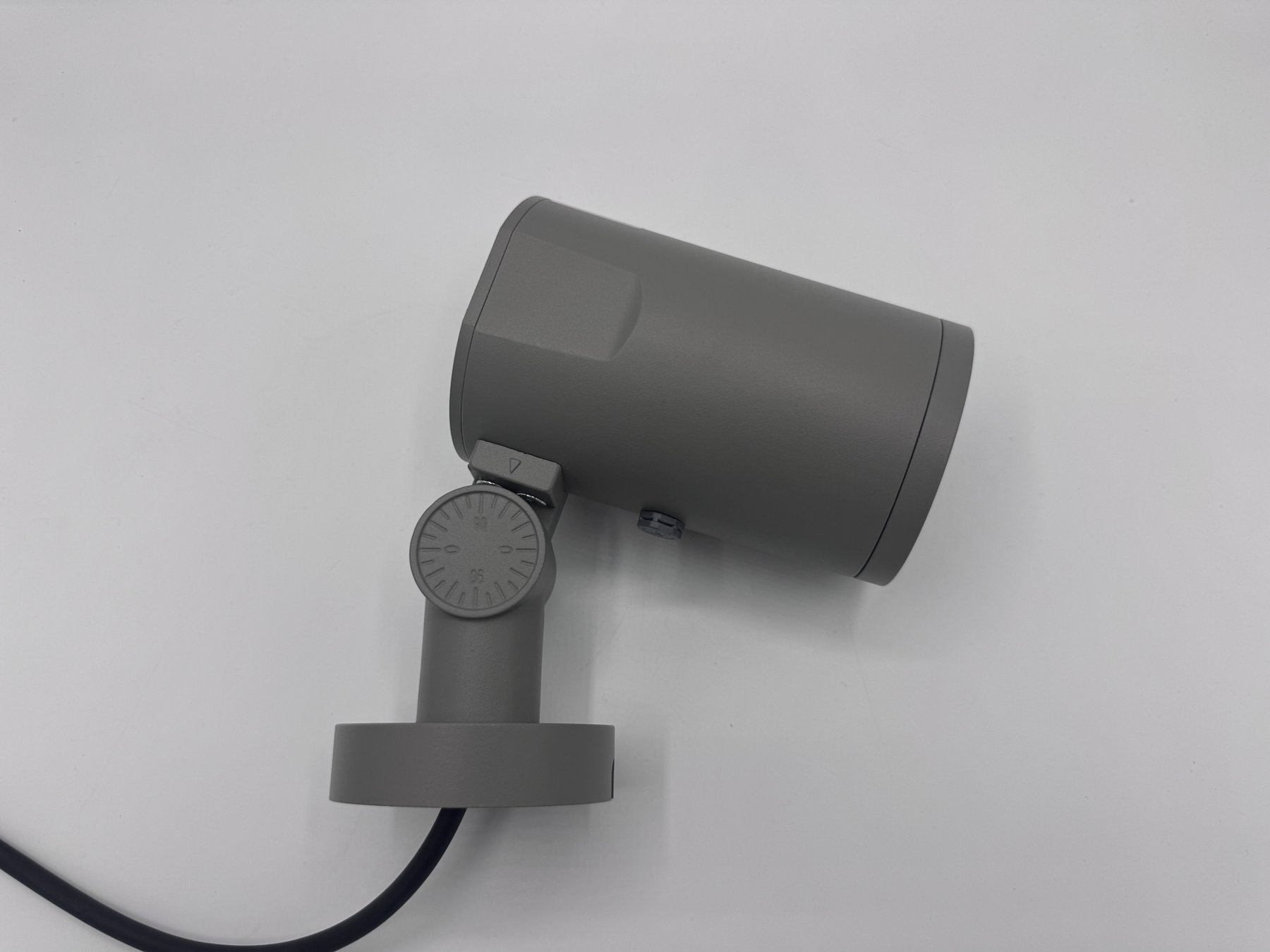

Laser Spot 12 view 1 Laser Spot 12 view 2 Laser Spot 12 view 3 Laser Spot 12 view 4 Laser Spot 12 view 5 Laser Spot 12 view 6
Outdoor — Wide Beam Spot
Ref: SP95-F18WA12Q24-LV

Laser
Spot 12

φ84 × 138mm · 12° Beam · IP65 · DC 24V / AC 220V

Wide-beam 12° outdoor spotlight with 12,802 cd peak intensity. CNC-machined 6061 aluminium body with 355° rotation and mechanical aiming lock. Anti-glare louver accessory for glare-free architectural and landscape highlighting.

IP65 Outdoor IK05 12° Beam 12,802 cd 18W DALI / DMX CRI ≥90 CE Certified Cree LED
Download Spec Sheet ↓
Technical Data
Full Specification
Dimension
φ84 × 138mm
Power
18W
Chip
Cree
CCT
3000K
LED Lumen
1,646 lm
Without louver · 726 lm with louver
Peak Intensity
12,802 cd
Beam Angle
12° (FWHM)
24° full beam
Rotation
0–355°
CRI
≥ 90
Bin
≤ 5-Step MacAdam
Voltage
DC 24V / AC 220V
Driver
Internal
Control
ON/OFF · DALI · 1-10V · DMX
IP Rating
IP65
IK Rating
IK05
Installation
Adjustable
U-bracket or base-mounted
Finish
Matte Gray
Body Material
6061 Aluminium (CNC)
Stainless steel bracket · Die-cast base
Accessory
Anti-glare Louver
Max Temperature
40°C – 50°C
Salt Spray Test
> 1,000 h
Lifetime
50,000 hours
Certification
CE
Technical Files
Downloads
Spec Sheet
.pdf — Laser Spot 12
CAD / DWG
.dwg — Coming soon
Photometric / IES
.ies — Laser Spot 12
View Datasheet
Also Consider
Related Products
Outdoor
Laser Spot 2
Precision Spot · 2° Beam · 20,079 cd · IP65
Laser Spot 2
Outdoor

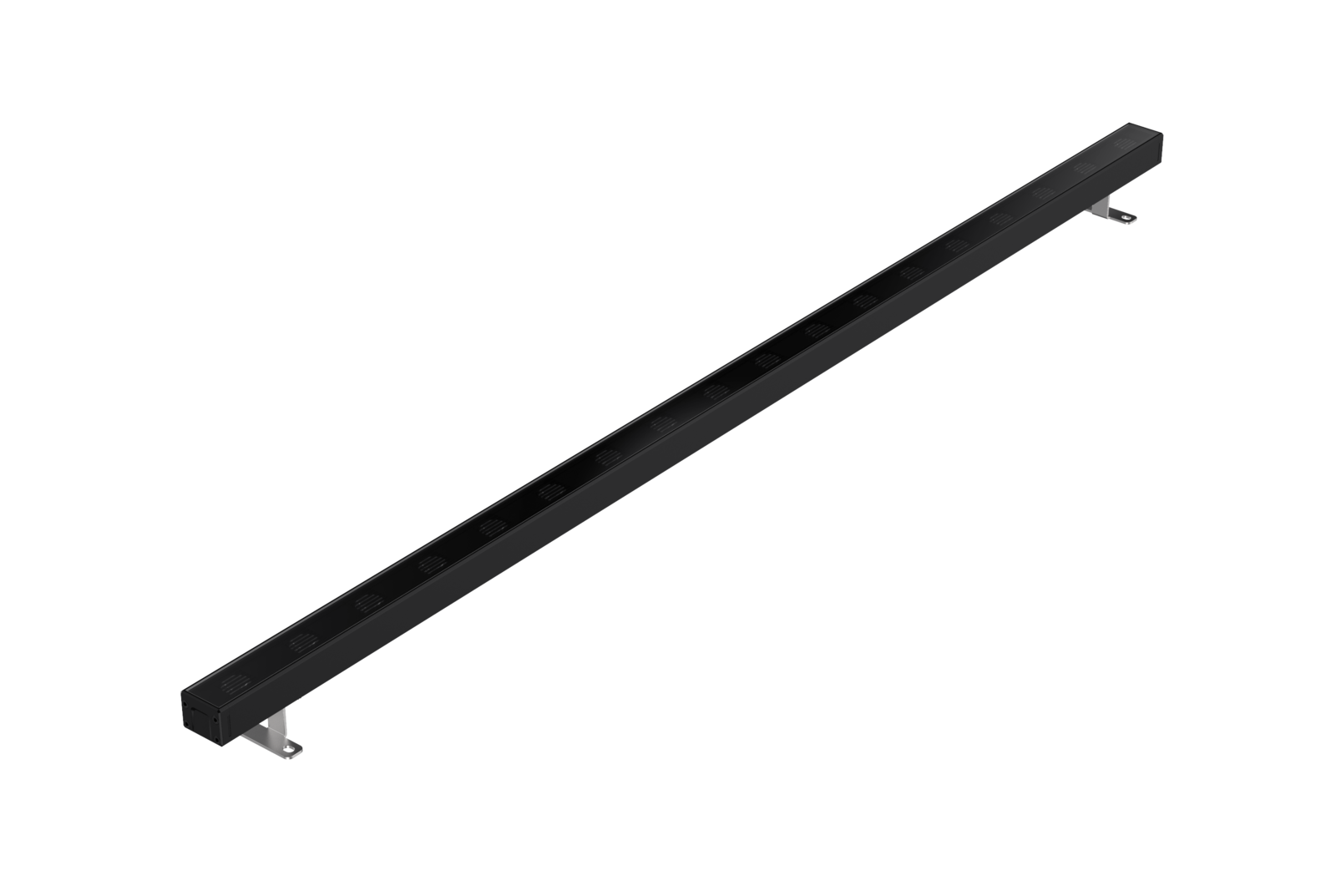

KKRWW33
