Linear Lighting — Indoor Surface

Ref: APEX MINI

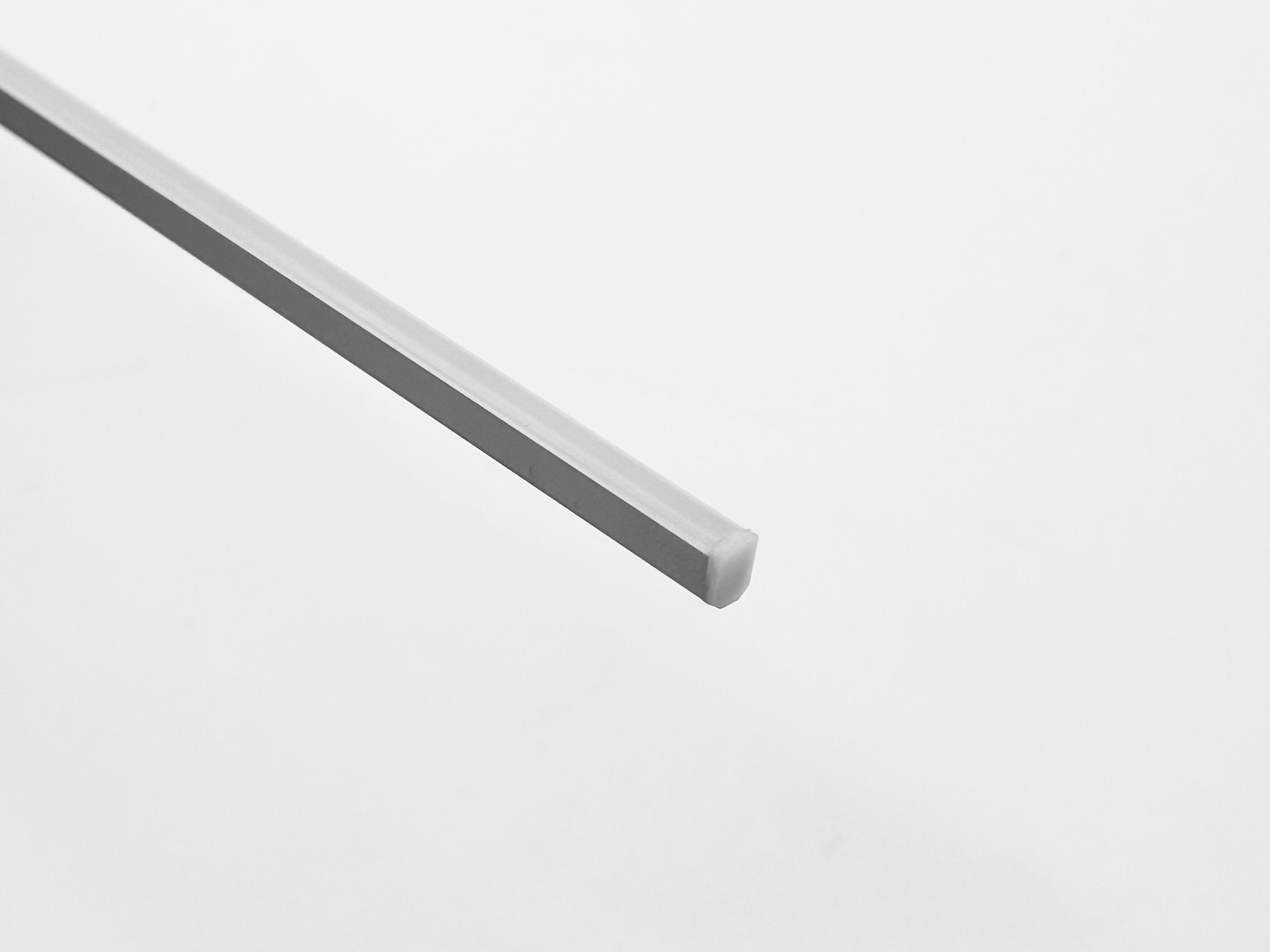

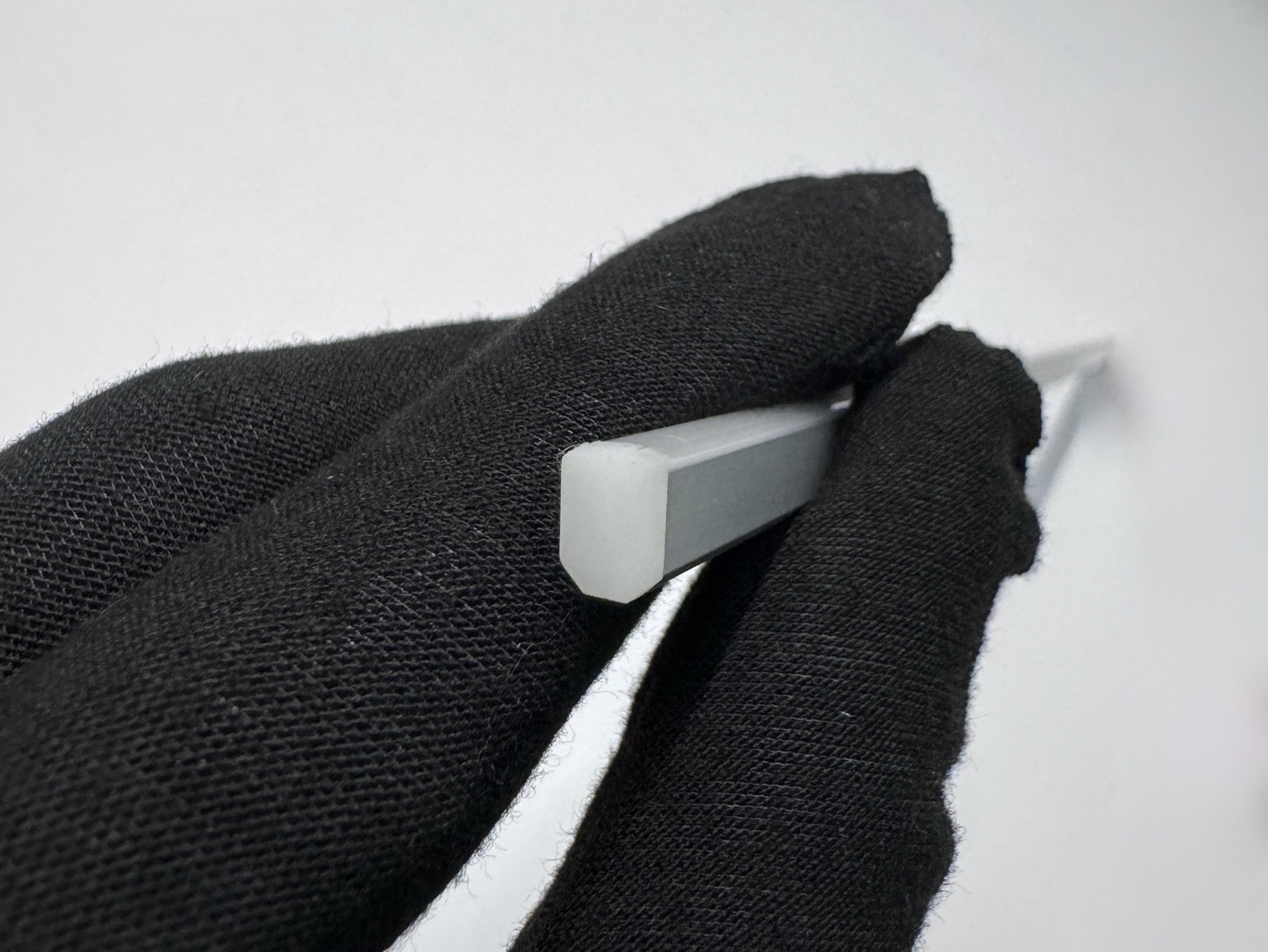

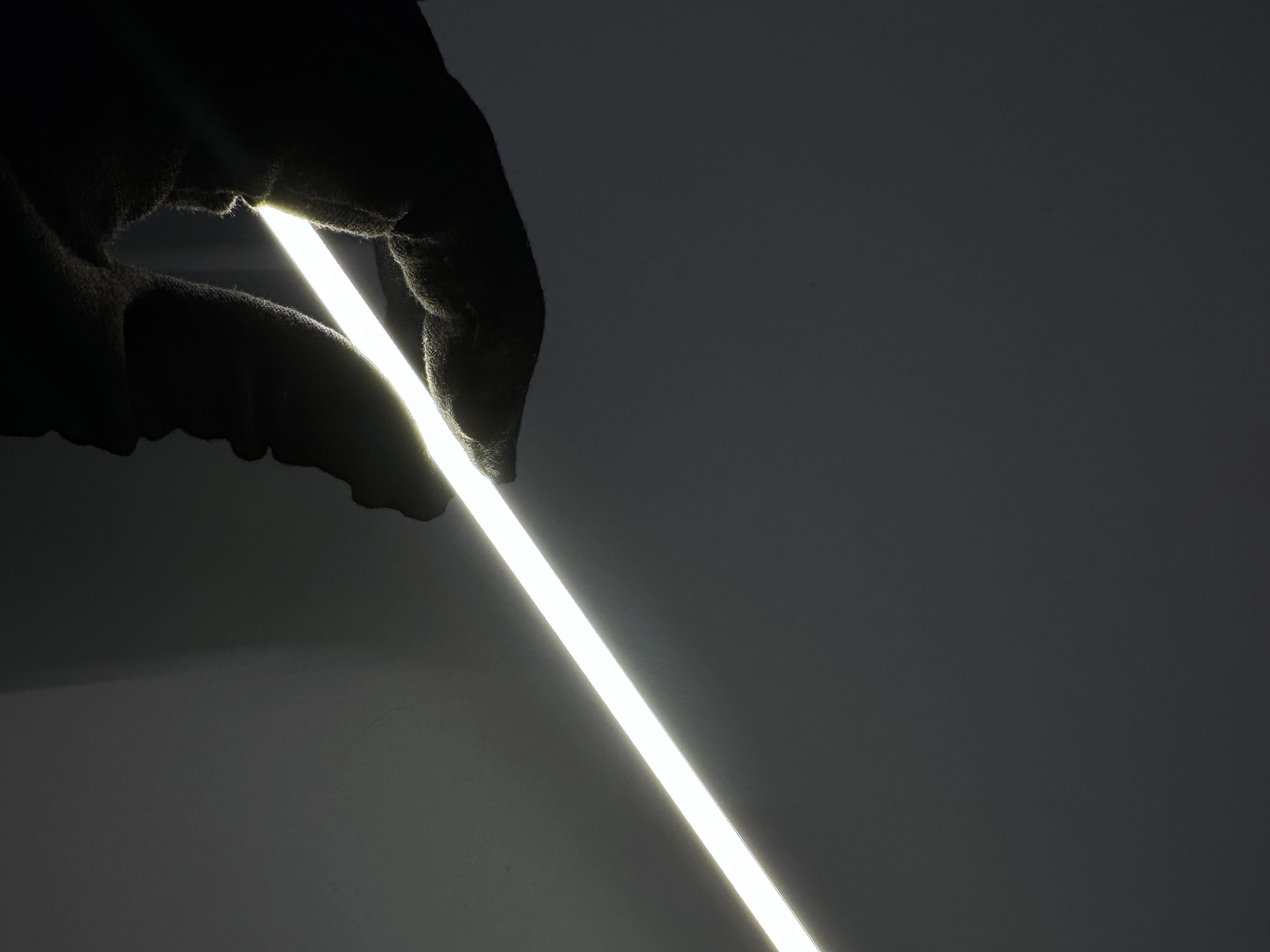

Apex Mini
Linear Profile

H6.4mm × W4.6mm · Surface Mount · IP20

Ultra-slim surface-mount linear profile with high lumen efficacy chip and diffused 100° optic. CRI 92, TM-30 tested, 25mm PCB increment for fine-pitch custom lengths up to 2000mm. 90 lm/W efficacy across three power options up to 855 lm/m.

CRI 92TM-30 Tested24V DCDALI / DMX50,000hCE3-Step MacAdam

Download Spec Sheet ↓

Technical Data

Full Specification

Dimension

H6.4mm × W4.6mm

PCB Increment

25mm

Max 2000mm

LED/m

240

Chip

high lumen efficacy chip

Cover / Optics

Diffused / 100°

CCT

2700K / 3000K / 3500K / 4000K

Bin

3-Step MacAdam Ellipse

CRI

TM 30-15 Rq

TM 30-15 Rf

Lifetime

50,000 hours @ 25°C

Operating Temp.

−25°C to +50°C

TC max = 80.1°C

IP Rating

IP20

Finish

Silver Anodized

Mounting

3M Tape / Magnet

Power Feed

Hardwire or M/F Connectors

Control

0-10V / 1-10V / DMX / DALI

Voltage

24V DC

Certification

Warranty

3 Years

Power & Lumen Output

Product Models @ 3500K

Model	Wattage	Efficacy	Luminous Flux
APEX MINI (Full)	9.5 W/m	90 lm/W	855 lm/m
APEX MINI (Mid)	7 W/m	90 lm/W	630 lm/m
APEX MINI (Low)	5 W/m	90 lm/W	450 lm/m
