Linear Lighting — Indoor Surface

Ref: APEX-CN001

Apex-CN001
Linear Profile

H10mm × W10mm · Surface Mount · IP40

Square H10×W10mm aluminium profile with three power options — 10, 16, and 24 W/m — up to 1704 lm/m. Osram chip, 3-step MacAdam ellipse, 100° diffused optic. Double-sided tape or fixing clip mounting, custom lengths to 2008mm.

CRI ≥90IP4024V DCDALI / DMX50,000hCE · KC · BIS3-Step MacAdam

Download Spec Sheet ↓

Technical Data

Full Specification

Dimension

H10mm × W10mm × L Variable

min 58mm · max 2008mm

PCB Increment

50mm

LED/m

120

Chip

Osram or equivalent

Beam Angle

100°

Diffused optic

CCT

3000K · 3500K · 4000K

Bin / Step

3-Step MacAdam Ellipse

CRI

≥ 90

CRI 92.1 @ 3032K

Lifetime

50,000 hours @ 25°C

Operating Temp.

−25°C to +50°C

Tc max = 66°C

IP Rating

IP40

Finish

Silver / White / Custom

On request

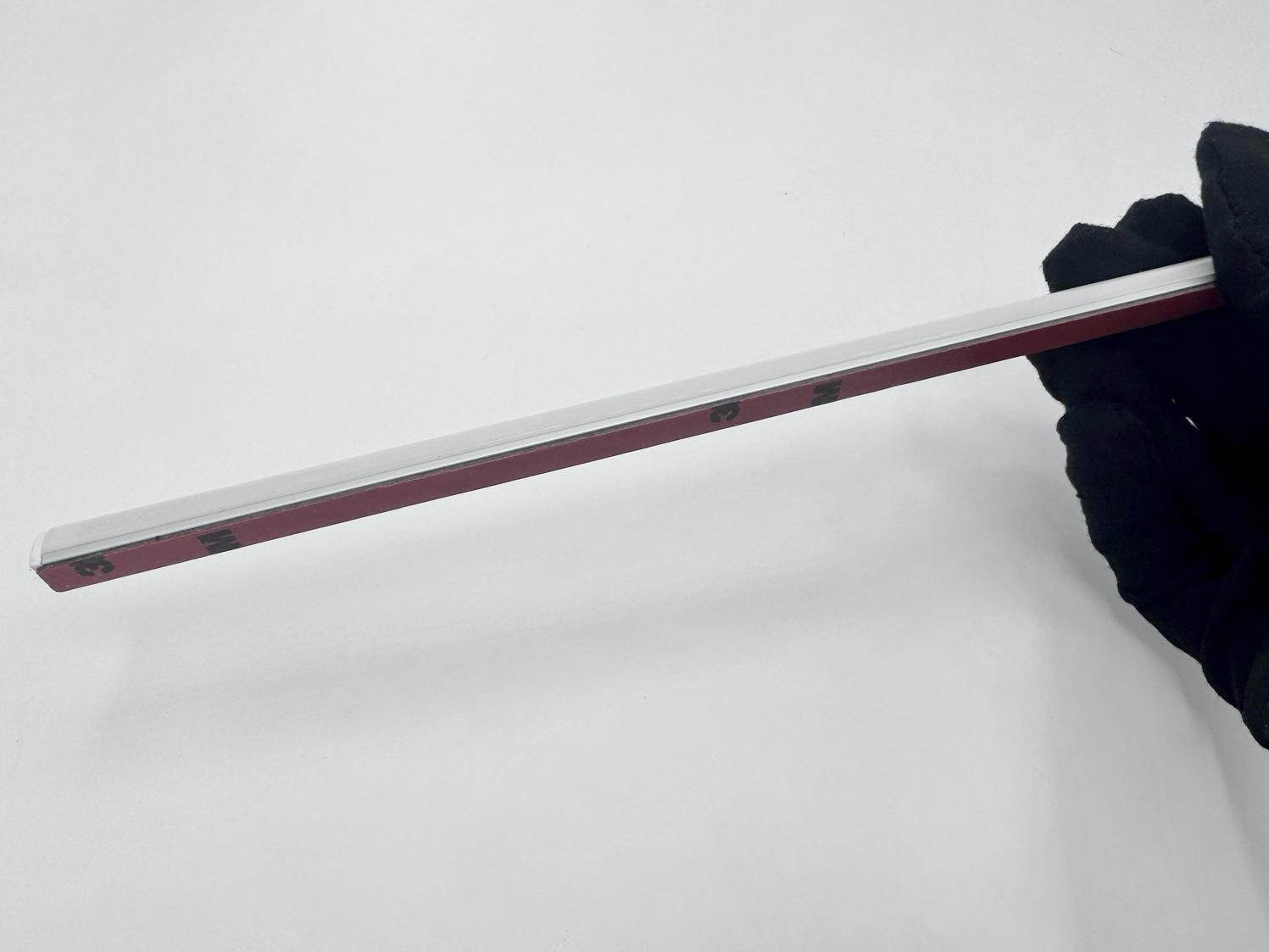

Mounting

Double Sided Tape / Fixing Clip

Power Feed

Hardwire tail or M/F connectors

Wire Section

20AWG — 0.5 mm²

Wire Length

300mm

Custom on request

Control

0-10V / 1-10V / DMX / DALI

Supply Voltage

24V DC

Certification

CE, KC, BIS

Power & Lumen Output

Product Models @ 3000K

Model	Wattage	Efficacy	Luminous Flux
APEX-CN001-10	10 W/m	71 lm/W	710 lm/m
APEX-CN001-16	16 W/m	71 lm/W	1136 lm/m
APEX-CN001-16-70	16 W/m	69 lm/W	1100 lm/m
APEX-CN001-24	24 W/m	71 lm/W	1704 lm/m
